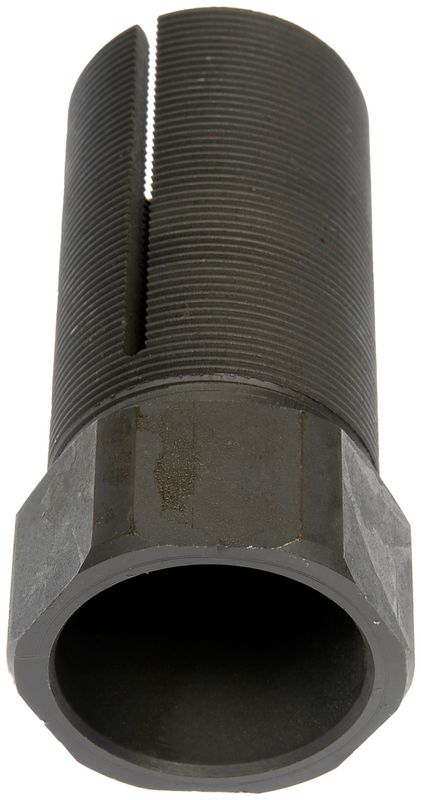

Dorman 533-140 Steering Tie Rod End Adjusting Sleeve - Left (Steering Arm to Steering Arm)
| Brand | Dorman 533-140 |
|---|---|
| Position | Left (Steering Arm to Steering Arm) |
| Material | Acero |
| Material | Steel |
| Thread Direction | Counterclockwise (left) |
| Thread Direction | Rotar en el sentido contrario a las agujas del reloj (izquierda) |
| Length | 105 |
| Color | Black |
| Color | Negro |
| Color | Noir |
| Clamps Included | No |
| Clamps Included | Non |
| End 1 Gender | Female |
| End 1 Gender | Hembra |
| End 2 Gender | Female |
| End 2 Gender | Hembra |
| Outside Diameter | 35 |
| Mounting Hardware Included | No |
| Mounting Hardware Included | Non |
| Grade Type | Reemplazo estándar |
| Grade Type | Standard replacement |
| Bolts Included | No |
| Bolts Included | Non |
| End 1 Thread Type | Media |
| End 1 Thread Type | Medium |
| Thread Type | Coarse |
| Thread Type | Grueso |
| Arandela incluida | No |
| Contenidos del paquete | 1 ajustador |
| Diámetro de la rosca | 44mm |
| Diámetro la rosca de extremo 1 | 27mm |
| End 1 Thread Diameter | 27 mm |
| Fits | Ram · 36 vehicles |
Standard replacement. Precision-engineered and rigorously tested for reliable replacement performance.
Steel construction. Durable material with a black finish for dependable service.
Coarse, left-hand threads. Metric threading helps ensure a secure, precise adjustment.
Cross-references Delphi TA3482, Delphi TA6472 and Mevotech Original Grade GS250281 for the same application. See all 7.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Dorman 533-140 Steering Tie Rod End Adjusting Sleeve
The Dorman 533-140 steering tie rod end adjusting sleeve is a standard replacement part for steering linkage service on select Ram heavy-duty trucks. Built from steel with a black finish, it uses a metric coarse thread design and left-hand thread direction for the left steering arm-to-steering arm position.
Key Features
- Steel construction for steering linkage durability
- Counterclockwise, left-hand thread direction
- Metric thread specification with 1.5 mm pitch
- Black finish
- Female ends on both sides
- Standard replacement grade
- Compatible with select Ram 2500, Ram 3500, and Ram 4000 applications
Detailed Description
This steering tie rod end adjusting sleeve is engineered as a direct replacement for the original sleeve used in the steering system on select Ram 2500, Ram 3500, and Ram 4000 models. The Dorman 533-140 is designed for the left side in a steering arm to steering arm configuration and features a 105 mm length, 35 mm outside diameter, and 44 mm thread diameter. It uses a 27 mm end 1 thread diameter and coarse metric threading to match the specified application. This part cross-references MOOG Chassis Products ES801199S for the same application.
Vehicle Fitment
- Fits 2014-2025 Ram 2500, Left (Steering Arm to Steering Arm)
- Fits 2013-2025 Ram 3500, Left (Steering Arm to Steering Arm)
- Fits 2014-2024 Ram 4000, Left (Steering Arm to Steering Arm)
Common Repair Uses
- Replacing a worn or damaged steering tie rod end adjusting sleeve
- Correcting steering linkage play in the left steering arm-to-steering arm position
- Restoring proper toe adjustment after steering service
- Addressing corrosion or thread wear on the original sleeve
- Repairing steering alignment issues on Ram 2500, Ram 3500, and Ram 4000 trucks
Installation Notes and Tips
Verify left-hand thread orientation before installation, since this sleeve uses counterclockwise threading. Confirm thread size, pitch, and steering position against the original part before service. After installation, perform a professional wheel alignment to set toe and steering geometry correctly on the Ram 2500, Ram 3500, or Ram 4000.
Quality Assurance
Dorman states that this replacement sleeve is precision-engineered and tested for reliable service on the listed vehicles. The part is built as a standard replacement for the original steering component and is intended to match the specified fitment and thread requirements for the application.
| Year | Make | Model | Body Type | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2025 | Ram | 2500 | — | 4WD | Left (Steering Arm to Steering Arm) | — |
| 2025 | Ram | 3500 | Cab & Chassis | RWD | Left (Steering Arm to Steering Arm) | — |
| 2024 | Ram | 2500 | — | 4WD | Left (Steering Arm to Steering Arm) | — |
| 2024 | Ram | 3500 | Cab & Chassis | RWD | Left (Steering Arm to Steering Arm) | — |
| 2024 | Ram | 4000 | — | — | Left (Steering Arm to Steering Arm) | — |
| 2023 | Ram | 2500 | — | 4WD | Left (Steering Arm to Steering Arm) | — |
| 2023 | Ram | 3500 | Cab & Chassis | RWD | Left (Steering Arm to Steering Arm) | — |
| 2023 | Ram | 4000 | — | — | Left (Steering Arm to Steering Arm) | — |
| 2022 | Ram | 2500 | — | 4WD | Left (Steering Arm to Steering Arm) | — |
| 2022 | Ram | 3500 | Cab & Chassis | RWD | Left (Steering Arm to Steering Arm) | — |
| 2022 | Ram | 4000 | — | — | Left (Steering Arm to Steering Arm) | — |
| 2021 | Ram | 2500 | — | 4WD | Left (Steering Arm to Steering Arm) | — |
| 2021 | Ram | 3500 | Cab & Chassis | RWD | Left (Steering Arm to Steering Arm) | — |
| 2021 | Ram | 4000 | — | — | Left (Steering Arm to Steering Arm) | — |
| 2020 | Ram | 2500 | — | 4WD | Left (Steering Arm to Steering Arm) | — |
| 2020 | Ram | 3500 | Cab & Chassis | RWD | Left (Steering Arm to Steering Arm) | — |
| 2020 | Ram | 4000 | — | — | Left (Steering Arm to Steering Arm) | — |
| 2019 | Ram | 2500 | — | 4WD | Left (Steering Arm to Steering Arm) | — |
| 2019 | Ram | 3500 | Cab & Chassis | RWD | Left (Steering Arm to Steering Arm) | — |
| 2019 | Ram | 4000 | — | — | Left (Steering Arm to Steering Arm) | — |
| 2018 | Ram | 2500 | — | 4WD | Left (Steering Arm to Steering Arm) | — |
| 2018 | Ram | 3500 | Cab & Chassis | RWD | Left (Steering Arm to Steering Arm) | — |
| 2018 | Ram | 4000 | — | — | Left (Steering Arm to Steering Arm) | — |
| 2017 | Ram | 2500 | — | 4WD | Left (Steering Arm to Steering Arm) | — |
| 2017 | Ram | 3500 | Cab & Chassis | RWD | Left (Steering Arm to Steering Arm) | — |
| 2017 | Ram | 4000 | — | — | Left (Steering Arm to Steering Arm) | — |
| 2016 | Ram | 2500 | — | 4WD | Left (Steering Arm to Steering Arm) | — |
| 2016 | Ram | 3500 | Cab & Chassis | RWD | Left (Steering Arm to Steering Arm) | — |
| 2016 | Ram | 4000 | — | — | Left (Steering Arm to Steering Arm) | — |
| 2015 | Ram | 2500 | — | 4WD | Left (Steering Arm to Steering Arm) | — |
| 2015 | Ram | 3500 | Cab & Chassis | RWD | Left (Steering Arm to Steering Arm) | — |
| 2015 | Ram | 4000 | — | — | Left (Steering Arm to Steering Arm) | — |
| 2014 | Ram | 2500 | — | 4WD | Left (Steering Arm to Steering Arm) | — |
| 2014 | Ram | 3500 | Cab & Chassis | RWD | Left (Steering Arm to Steering Arm) | — |
| 2014 | Ram | 4000 | — | — | Left (Steering Arm to Steering Arm) | — |
| 2013 | Ram | 3500 | Crew Cab Pickup | — | Left (Steering Arm to Steering Arm) | — |
