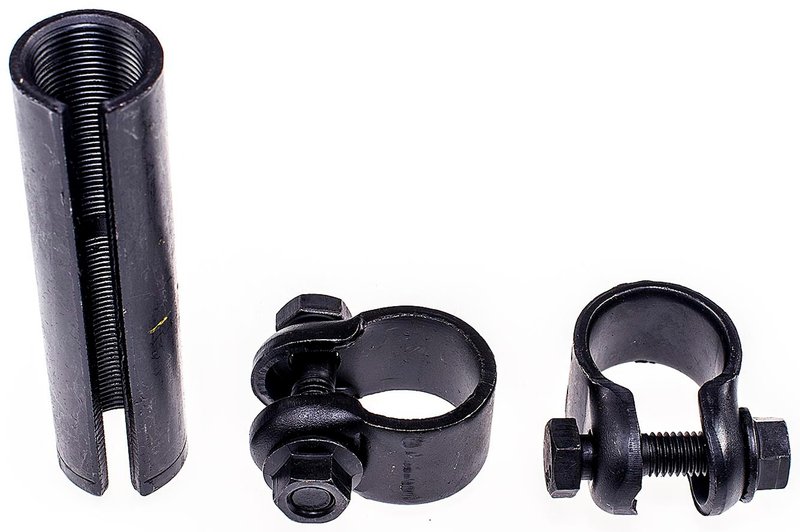

Dorman 533-147 Steering Tie Rod End Adjusting Sleeve - Steering Arm To Steering Arm
Dorman 533-147 Steering Tie Rod End Adjusting Sleeve
Dorman 533-147 is a steel steering tie rod end adjusting sleeve built for direct replacement on select Jeep Wrangler applications. It is precision-engineered and tested for reliable fitment on the steering linkage, with a left-hand, counterclockwise thread and metric coarse threading for the specified vehicle range.
Key Features
- Steel construction for steering linkage service
- Left-hand, counterclockwise thread direction
- Metric design with 22 mm thread diameter and 1.5 pitch
- Female ends on both sides
- Black finish
- Standard replacement grade
- Mounting hardware included
- Compatible With 1987-1995 Jeep Wrangler, steering arm to steering arm
Detailed Description
This steering tie rod end adjusting sleeve is used to connect and adjust steering linkage length during front-end alignment and steering service. The Dorman 533-147 follows the original-style dimensions for the listed Jeep Wrangler fitment, including a 115 mm length, 35 mm outside diameter, and coarse metric threading. It is a direct-fit steering hardware replacement for 1987-1995 Jeep Wrangler models in steering arm to steering arm applications. This part cross-references Delphi TA5887 for the same application.
Common Repair Uses
- Replacing a worn or damaged steering adjusting sleeve
- Restoring proper toe adjustment during alignment work
- Addressing steering play caused by linkage wear
- Repairing corrosion or thread damage on the tie rod assembly
- Servicing Jeep Wrangler steering linkage on 1987-1995 models
Installation Notes and Tips
Verify left-hand thread orientation before installation and match the sleeve to the existing steering linkage layout. Confirm thread diameter, pitch, and end gender against the removed part before assembly. After installation, perform a professional wheel alignment to set toe and steering wheel position correctly. This part includes mounting hardware, while clamps, bolts, and washers are not included.
Quality Assurance
Dorman designs this steering tie rod end adjusting sleeve as a standard replacement part and subjects it to testing for reliable service on the listed application. It is engineered to match the original part function for Jeep Wrangler steering linkage repair.
| Brand | Dorman |
|---|---|
| Part Number | 533-147 |
| Material | Acero |
| Material | Steel |
| Thread Direction | Counterclockwise (left) |
| Thread Direction | Rotar en el sentido contrario a las agujas del reloj (izquierda) |
| Length | 115 |
| Color | Black |
| Color | Negro |
| Color | Noir |
| Clamps Included | No |
| Clamps Included | Non |
| End 1 Gender | Female |
| End 1 Gender | Hembra |
| End 2 Gender | Female |
| End 2 Gender | Hembra |
| Outside Diameter | 35 |
| Mounting Hardware Included | Oui |
| Mounting Hardware Included | Sí |
| Mounting Hardware Included | Yes |
| Grade Type | Reemplazo estándar |
| Grade Type | Standard replacement |
| Bolts Included | No |
| Bolts Included | Non |
| End 1 Thread Type | Media |
| End 1 Thread Type | Medium |
| Thread Type | Coarse |
| Thread Type | Grueso |
| Arandela incluida | No |
| Contenidos del paquete | 1 extremo del terminal de la dirección |
| Diámetro de la rosca | 22 mm |
| Diámetro la rosca de extremo 1 | 27mm |
This part fits 9 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1995 | Jeep | Wrangler | Steering Arm To Steering Arm | |
| 1994 | Jeep | Wrangler | Steering Arm To Steering Arm | |
| 1993 | Jeep | Wrangler | Steering Arm To Steering Arm | |
| 1992 | Jeep | Wrangler | Steering Arm To Steering Arm | |
| 1991 | Jeep | Wrangler | Steering Arm To Steering Arm | |
| 1990 | Jeep | Wrangler | Steering Arm To Steering Arm | |
| 1989 | Jeep | Wrangler | Steering Arm To Steering Arm | |
| 1988 | Jeep | Wrangler | Steering Arm To Steering Arm | |
| 1987 | Jeep | Wrangler | Steering Arm To Steering Arm |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
