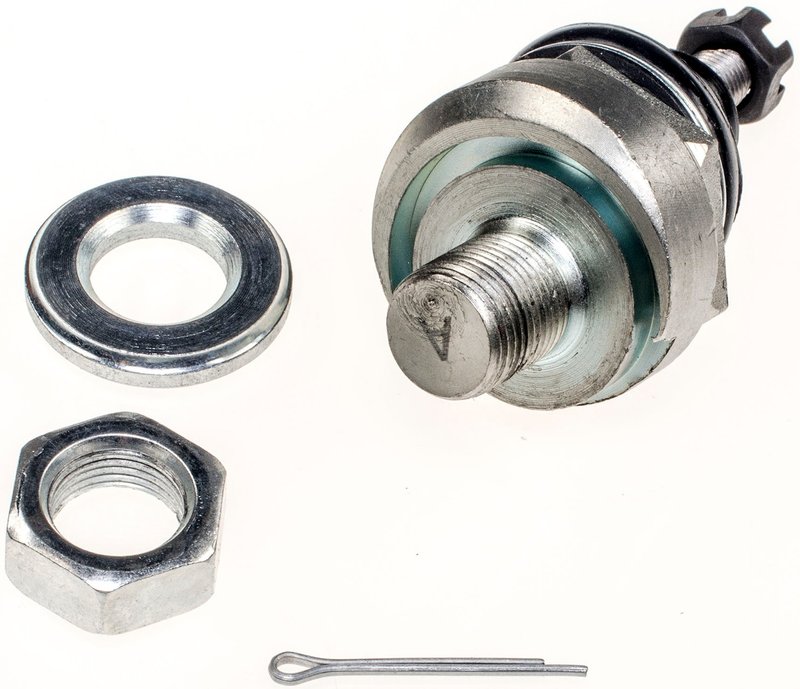

Dorman 533-282 Alignment Caster / Camber Ball Joint - Front Upper
| Brand | Dorman 533-282 |
|---|---|
| Position | Front Upper |
| Material | Acero |
| Material | Steel |
| Maximum Outside Diameter | 33 |
| Adjustment Range | 1 |
| Adjustment Range | 1 grados |
| Castle Nut Included | Oui |
| Castle Nut Included | Sí |
| Castle Nut Included | Yes |
| Suspension Grade Type | Reemplazo estándar |
| Suspension Grade Type | Standard |
| Dust Boot Included | Oui |
| Dust Boot Included | Sí |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Oui |
| Ball Joint Assembly | Sí |
| Ball Joint Assembly | Yes |
| Cotter Pin Hole | Oui |
| Cotter Pin Hole | Sí |
| Cotter Pin Hole | Yes |
| Grade Type | Reemplazo estándar |
| Grade Type | Standard replacement |
| Mounting Hole Quantity | 1 |
| Mounting Hole Quantity | 1 ensamble de manguera del calentador |
| Adjustable | No |
| Adjustable | Non |
| Greaseable | No |
| Greaseable | Non |
| Stud Type | Roscado |
| Stud Type | Threaded |
| Mounting Type | Bolt on |
| Fits | Acura, Honda, and Isuzu · 36 vehicles |
Standard replacement. Bolt-on design for a straightforward OE-style replacement.
Steel construction. Built with a dust boot, castle nut, and locking nut included.
Precision-engineered. Rigorously tested for reliable alignment performance.
Cross-references Beck/Arnley 101-5546, Delphi TC5837 and Mevotech Original Grade GK90490 for the same application. See all 9.
Dorman 533-282 Alignment Ball Joint
Dorman 533-282 is an alignment caster and camber ball joint for specific Honda, Acura, and Isuzu front upper suspension applications. It is precision-engineered and tested as a direct replacement for the original equipment part on listed vehicles, including Honda Prelude, Accord, Odyssey, Acura CL, Acura TL, and Isuzu Oasis.
Key Features
- Alignment caster/camber ball joint for front upper suspension use
- Steel construction for durable service in suspension applications
- Adjusts caster and camber from -1.00 degree to +1.00 degree
- Bolt-on mounting type with threaded stud design
- Includes dust boot, castle nut, locking nut, and cotter pin hole
- Standard replacement grade for OE-style service
- Stud thread diameter: 10 mm with 1.25 thread pitch
Product Details
This Dorman 533-282 ball joint is built for front upper alignment correction where caster and camber adjustment is needed. It is a steel, standard replacement suspension component with a 1-degree adjustment range, making it a practical choice for restoring alignment settings on vehicles such as the 1990-1997 Honda Accord, 1992-2001 Honda Prelude, and 1995-1998 Acura TL. The design includes a dust boot and cotter pin hole for secure installation details commonly required in suspension service. This part cross-references MOOG Chassis Products K90490 for the same application.
Common Problems It Can Help Address
- Front-end alignment that cannot be brought back into specification
- Caster or camber settings outside the desired range after suspension service
- Uneven tire wear caused by incorrect front upper alignment
- Steering pull related to misadjusted suspension geometry
- Wear in the original upper ball joint assembly
Installation Notes and Fitment
Fits 1992-2001 Honda Prelude, front upper. Fits 1997-1999 Acura CL, front upper. Fits 1996-1999 Isuzu Oasis, front upper. Fits 1995-1998 Acura TL, front upper. Fits 1995-1998 Honda Odyssey, front upper. Fits 1990-1997 Honda Accord, front upper.
Before installation, confirm the vehicle’s alignment needs and verify the 10 mm threaded stud with 1.25 pitch matches the original setup. Because this is a bolt-on suspension component, proper torque and a professional alignment check after installation are recommended. Use the included castle nut and locking nut only as specified by the service procedure.
Quality Assurance
Dorman designs this alignment caster and camber ball joint as a tested replacement for OE fit and function on the listed applications. The part number 533-282 is supported by Dorman’s standard replacement approach for suspension service and alignment correction.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2001 | Honda | Prelude | Type SH | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 2000 | Honda | Prelude | Type SH | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1999 | Acura | CL | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1999 | Honda | Prelude | Type SH | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1999 | Isuzu | Oasis | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1998 | Acura | CL | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1998 | Acura | TL | — | 2.5L | L5 | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1998 | Honda | Odyssey | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1998 | Honda | Prelude | Type SH | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1998 | Isuzu | Oasis | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1997 | Acura | CL | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1997 | Acura | TL | — | 2.5L | L5 | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1997 | Honda | Accord | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1997 | Honda | Odyssey | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1997 | Honda | Prelude | Type SH | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1997 | Isuzu | Oasis | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1996 | Acura | TL | — | 2.5L | L5 | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1996 | Honda | Accord | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1996 | Honda | Odyssey | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1996 | Honda | Prelude | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1996 | Isuzu | Oasis | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1995 | Acura | TL | — | 2.5L | L5 | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1995 | Honda | Accord | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1995 | Honda | Odyssey | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1995 | Honda | Prelude | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1994 | Acura | Vigor | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1994 | Honda | Accord | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1994 | Honda | Prelude | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1993 | Acura | Vigor | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1993 | Honda | Accord | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1993 | Honda | Prelude | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1992 | Acura | Vigor | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1992 | Honda | Accord | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1992 | Honda | Prelude | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1991 | Honda | Accord | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1990 | Honda | Accord | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
