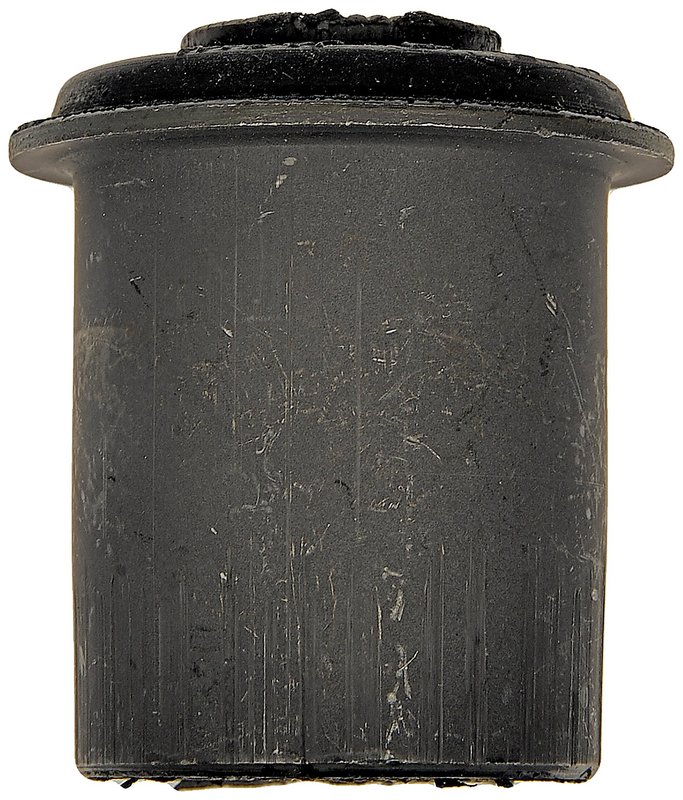

Dorman 533-870 Suspension Control Arm Bushing - Front Upper
| Brand | Dorman 533-870 |
|---|---|
| Position | Front Upper |
| Material | Acero, goma |
| Material | Rubber |
| Material | Steel |
| Wall Thickness | 8.57 |
| Length | 50 |
| Color | Black |
| Color | Negro |
| Color | Noir |
| Inside Diameter | 18 |
| Dust Boot Included | No |
| Dust Boot Included | Non |
| Width | 47 |
| Outside Diameter | 36 |
| Mounting Hardware Included | No |
| Mounting Hardware Included | Non |
| Height | 50 |
| Bracket Included | No |
| Bracket Included | Non |
| Grade Type | Reemplazo estándar |
| Grade Type | Standard replacement |
| Bushing Material | Acero, goma |
| Bushing Material | Rubber |
| Bushing Material | Steel |
| Mounting Hole Diameter | 18 |
| Mounting Type | Presionar hacia adentro |
| Mounting Type | Press in |
| Distance Between Mounting Holes | 50 |
| Color Code | Black |
| Color Code | Gray |
| Color Code | Gris |
| Fits | Toyota · 10 vehicles |
Standard replacement. Precision-engineered and rigorously tested for reliable OE-style replacement.
Press-in design. Installs without brackets or mounting hardware.
Steel and rubber. Combines strength with vibration-damping support.
Cross-references Delphi TD4332W, Mevotech Original Grade GS86406 and Mevotech Supreme MS86406 for the same application. See all 4.
Dorman 533-870 Front Upper Control Arm Bushing
Dorman 533-870 is a standard replacement suspension control arm bushing for select Toyota Tacoma models. It is precision-engineered and tested to replace the original equipment bushing on the front upper suspension position, helping restore proper control arm support and suspension feel.
Key Features
- Fits 1995-2004 Toyota Tacoma, front upper
- Standard replacement suspension control arm bushing
- Press-in mounting type for OE-style service
- Steel and rubber construction for strength and compliance
- Black finish
- Designed to replace the original bushing on specific vehicles
- Part number: 533-870
Detailed Description
This Dorman suspension control arm bushing is built for the front upper suspension location on 1995-2004 Toyota Tacoma trucks. The steel and rubber construction is selected to provide the support and isolation expected from an OE-style bushing, while the press-in design matches the service method used on the original suspension assembly. If you are replacing worn front upper bushings on a Toyota Tacoma, Dorman 533-870 offers a direct-fit repair solution for the specified application. This part cross-references MOOG Chassis Products K200125 for the same application.
Common Repair Uses
- Clunking or knocking from the front suspension
- Excessive play in the upper control arm area
- Uneven tire wear caused by worn suspension bushings
- Loose or imprecise steering response
- Cracked, dry-rotted, or deteriorated rubber bushings
Installation Notes and Tips
Fits 1995-2004 Toyota Tacoma, front upper. This is a press-in bushing, so proper removal and installation tools are required for service. Inspect the control arm, mounting bore, and surrounding suspension components before installation to confirm they are within specification. For best results, replace worn bushings on the same axle or suspension location as needed and verify alignment after repair.
Quality Assurance
Dorman states that this replacement bushing is precision-engineered and rigorously tested for reliable OE-style service on the listed vehicles. Part number 533-870 is built as a standard replacement for the original suspension control arm bushing on the specified Toyota Tacoma applications.
| Year | Make | Model | Submodel | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2004 | Toyota | Tacoma | S-Runner | RWD | Front Upper | — |
| 2003 | Toyota | Tacoma | S-Runner | RWD | Front Upper | — |
| 2002 | Toyota | Tacoma | S-Runner | RWD | Front Upper | — |
| 2001 | Toyota | Tacoma | S-Runner | RWD | Front Upper | — |
| 2000 | Toyota | Tacoma | SR5 | RWD | Front Upper | — |
| 1999 | Toyota | Tacoma | SR5 | RWD | Front Upper | — |
| 1998 | Toyota | Tacoma | SR5 | RWD | Front Upper | — |
| 1997 | Toyota | Tacoma | — | RWD | Front Upper | — |
| 1996 | Toyota | Tacoma | — | RWD | Front Upper | — |
| 1995 | Toyota | Tacoma | — | RWD | Front Upper | — |
