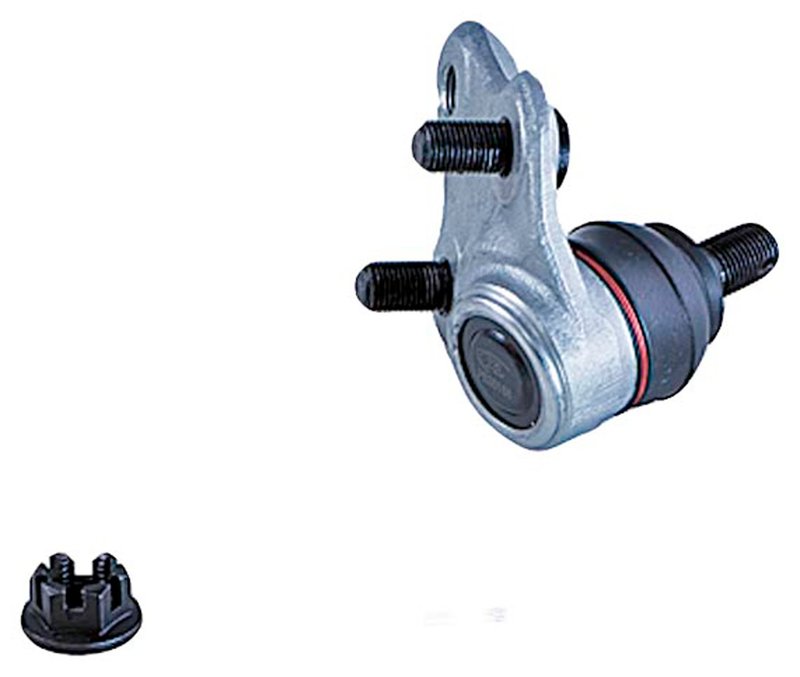

Dorman 539-932 Suspension Ball Joint - Front Lower

OE-Style Front Lower Ball Joint

Dorman 539-932 is a threaded suspension ball joint built for front lower applications on select Toyota, Chevrolet, and Geo vehicles. It is precision-engineered and tested for dependable OE-style replacement performance on models such as the Toyota Corolla, Prius, Celica, and RAV4.

This Dorman 539-932 ball joint uses a steel body, tapered stud, and bolt-in mounting design to match the original suspension layout on the listed vehicles. The included dust boot and castle nut support a complete service replacement for worn front lower ball joint service.

Key Features

• Steel construction for suspension service durability
• Threaded ball joint design with bolt-in mounting type
• Tapered stud with 12 mm wrench size
• Dust boot included with polychloroprene material
• Castle nut included; cotter pin hole provided
• Premium suspension grade type
• Grease fitting not included; non-greaseable design
• Mounting hardware included

Detailed Description

Designed as a front lower suspension ball joint, Dorman 539-932 helps restore the connection between the control arm and steering knuckle on select compact and midsize Toyota platforms, along with Chevrolet Prizm and Geo Prizm applications. It is a direct-fit replacement for vehicles that use a threaded, bolt-in ball joint with a tapered stud and a dust boot for joint protection. This part cross-references MOOG Chassis Products K90309 for the same application.

Compatible With 2019-2025 Toyota Corolla, front lower; 1996-2008 Toyota Corolla, front lower; 2016-2022 Toyota Prius, front lower; 2001-2003 Toyota Prius, front lower; 2019-2022 Toyota Prius AWD-e, front lower; 2017-2022 Toyota Prius Prime, front lower; 1994-2005 Toyota Celica, front lower; 2001-2005 Toyota RAV4, front lower; 1998-2002 Chevrolet Prizm, front lower; and 1996-1997 Geo Prizm, front lower.

Common Repair Symptoms

• Front-end clunking or popping over bumps
• Loose or imprecise steering feel
• Uneven tire wear from suspension play
• Excess movement at the lower control arm connection
• Visible boot damage or joint wear during inspection

Installation Notes and Tips

Verify the vehicle’s front lower suspension layout before ordering, since this part is application-specific. Inspect the control arm, knuckle, and surrounding hardware for wear or damage during installation, and confirm the tapered stud seats correctly before final torque. Use the cotter pin hole and castle nut arrangement as required by the vehicle’s original design.

Quality Assurance

Dorman engineers and tests this suspension ball joint as an OE-style replacement for specific vehicles. The premium-grade construction, steel housing, and protective dust boot are selected to support reliable service in front suspension repair work.
