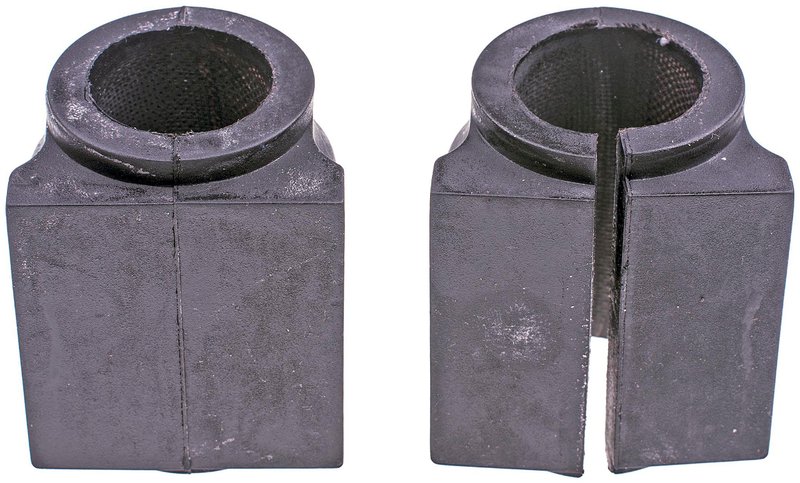

Dorman 540-255 Suspension Stabilizer Bar Bushing Kit - Front

Dorman 540-255 Front Stabilizer Bar Bushings

Dorman 540-255 is a front suspension stabilizer bar bushing kit built as a standard replacement for the original equipment on specific vehicles. It is made from rubber/elastomer material and is engineered for a precise fit on the front sway bar mounting points.

Compatible With 2005-2009 Land Rover LR3 front applications, this Dorman 540-255 bushing kit helps restore proper stabilizer bar support and consistent suspension movement. It cross-references Land Rover LR015339 and Delphi TD1494W for the same application.

Key Features

• Standard replacement stabilizer bar bushing kit for front suspension service
• Rubber and elastomer construction for OE-style fit and function
• Inside diameter: 27.5 mm
• Outside diameter: 42 mm
• Width: 50.5 mm
• Assembled length: 64 mm
• No grease fitting included
• No bracket included

Product Details

This suspension stabilizer bar bushing kit is precision-engineered and tested to replace the original equipment on select Land Rover LR3 models. The Dorman 540-255 is intended for the front stabilizer bar location and is built to maintain proper bar positioning, reduce unwanted movement, and support consistent suspension response. For buyers searching for a front sway bar bushing kit for a 2005-2009 Land Rover LR3, this part number provides a direct replacement option with OE-style dimensions.

Common Issues It Can Address

• Clunking or rattling from the front suspension
• Excessive stabilizer bar movement at the mounting point
• Worn or cracked original sway bar bushings
• Loose-feeling front-end handling caused by bushing wear
• Noise during cornering or over uneven pavement

Installation Notes

Verify stabilizer bar diameter and bushing dimensions before installation. Inspect the sway bar, mounting surfaces, and related suspension components for wear or damage before replacing the bushings. This part does not include a grease fitting or bracket, so reuse or replace any related hardware as required by the vehicle service procedure.

Quality Assurance

Dorman manufactures this part as a rigorously tested replacement for original equipment applications. Part number 540-255 is built to meet standard replacement expectations for front suspension service on the listed Land Rover LR3 fitment.
