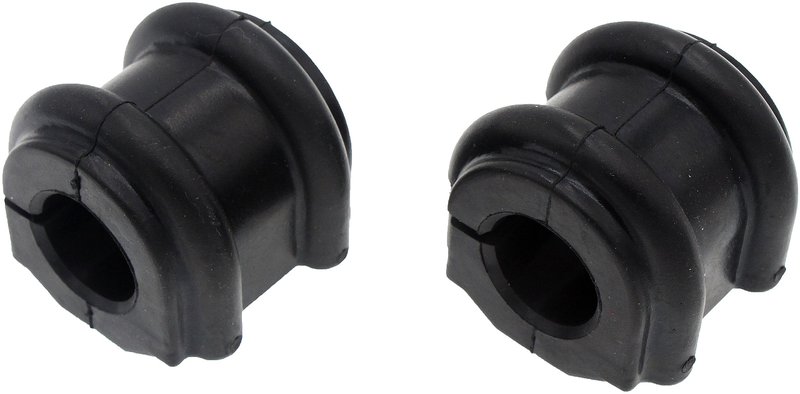

Dorman 540-355 Suspension Stabilizer Bar Bushing Kit - Front

Dorman 540-355 Front Stabilizer Bar Bushings

Dorman 540-355 is a suspension stabilizer bar bushing kit built as a standard replacement for the original equipment on specific vehicles. It uses rubber/elastomer construction to help restore sway bar support and maintain proper front suspension control on the applications listed below.

Key Features

• Rubber and elastomer bushing material for OE-style suspension service
• Precision-engineered replacement for the original stabilizer bar bushings
• Front suspension application
• Inside diameter: 22.6 mm
• Outside diameter: 40 mm
• Assembled length: 48.7 mm
• Standard replacement grade
• Bracket not included
• Grease fitting not included

Detailed Description

This Dorman stabilizer bar bushing kit is made for front suspension service on 2001-2006 Hyundai Santa Fe models. It is engineered to match the original equipment fit and function for the listed applications, helping maintain proper sway bar location and reduce unwanted movement at the bar-to-frame mounting point. Part number 540-355 is also referenced in aftermarket catalogs for the same application, including Beck/Arnley 101-7546 and MOOG Chassis Products K200731.

Compatible With 2003-2006 Hyundai Santa Fe, front, and 2001-2002 Hyundai Santa Fe, front with 54815-26100 2nd Gen Bracket. If you are searching for Dorman 540-355 Hyundai Santa Fe front stabilizer bar bushings, this part is matched to the listed OE-style replacement use case.

Common Issues This Part May Address

• Clunking or knocking from the front suspension over bumps
• Excess sway bar movement at the mounting point
• Worn, cracked, or compressed stabilizer bar bushings
• Loose-feeling front end response during cornering
• Noise caused by deteriorated rubber suspension bushings

Installation Notes and Tips

Verify the vehicle year, model, and front suspension bracket configuration before ordering. For 2001-2002 Hyundai Santa Fe applications, the notes specify 54815-26100 2nd Gen Bracket. Inspect the stabilizer bar and mounting surfaces for wear or corrosion during service, and replace any damaged related components as needed to ensure proper bushing seating.

Quality Assurance

Dorman states this part is precision-engineered and rigorously tested to provide reliable replacement performance for the original equipment on specific vehicles. The standard replacement design is intended to deliver OE-style fitment for the listed Hyundai Santa Fe applications.
