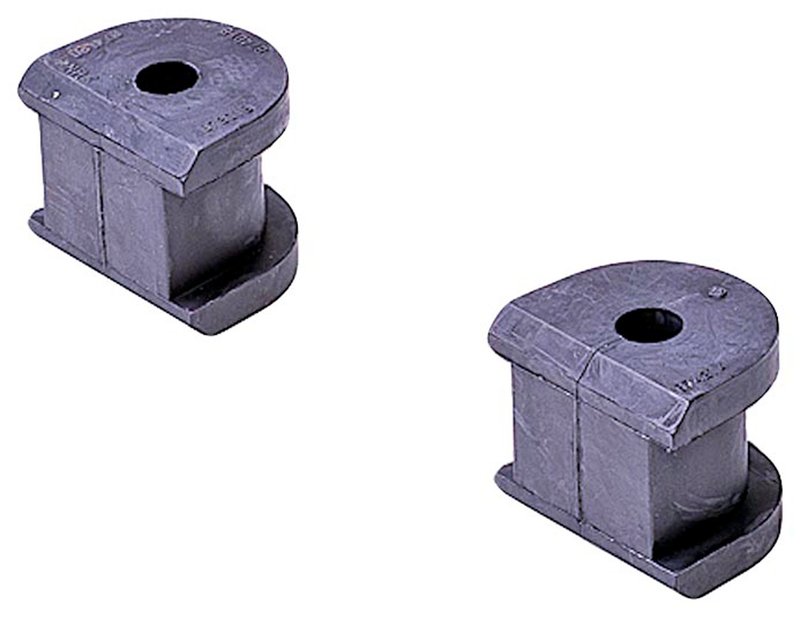

Dorman 540-519 Suspension Stabilizer Bar Bushing Kit - Rear

Dorman 540-519 Rear Stabilizer Bar Bushings

Dorman 540-519 is a rear suspension stabilizer bar bushing kit built as a standard replacement for specific Subaru applications. It is made from rubber/elastomer material to help restore stabilizer bar support and reduce unwanted movement at the rear sway bar mounting points.

• Standard replacement stabilizer bar bushings for rear suspension service
• Rubber/elastomer construction for OE-style fit and function
• Inside diameter: 12 mm
• Outside diameter: 48 mm
• Assembled length: 41 mm
• Bracket included: No
• Grease fitting included: No

Fitment Details

Compatible with rear stabilizer bar applications on 2004 Subaru Impreza, rear; 2003 Subaru Impreza, rear; 2002 Subaru Legacy, rear with 11 mm diameter bar; 2002 Subaru Outback, rear with 11 mm diameter bar; 2000-2001 Subaru Legacy, rear; and 2000-2001 Subaru Outback, rear. This part number, 540-519, is also a direct reference point for shoppers comparing rear sway bar bushing replacements for Subaru Impreza, Legacy, and Outback models.

This part cross-references Delphi TD4249W and MOOG Chassis Products K200812 for the same application.

What It Helps Address

• Rear stabilizer bar play or looseness
• Squeaks or clunks from worn sway bar bushings
• Reduced bar support at the rear suspension mounting point
• Excess movement caused by deteriorated rubber bushings
• OE-style replacement needs for Subaru Impreza, Legacy, and Outback rear suspension service

Installation Notes

Inspect the stabilizer bar diameter before installation to confirm the correct bushing size, especially on 2002 Subaru Legacy and 2002 Subaru Outback applications listed with an 11 mm diameter bar. Replace worn bushings as part of a complete rear sway bar service, and verify the bar and mounting surfaces are clean before assembly. Part number 540-519 is intended for rear position use only on the vehicles listed above.

Quality Assurance

This Dorman suspension stabilizer bar bushing kit is precision-engineered and rigorously tested for reliable replacement performance on the specified vehicles. Dorman 540-519 is built to standard replacement specifications for consistent fit and serviceability.
