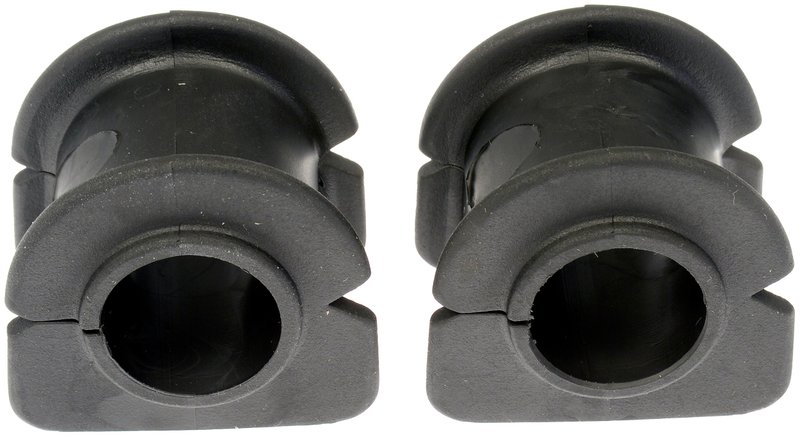

Dorman 540-536 Suspension Stabilizer Bar Bushing Kit - Front To Frame

Dorman 540-536 Suspension Stabilizer Bar Bushing Kit

Dorman 540-536 is a suspension stabilizer bar bushing kit built as a standard replacement for the original equipment on specific vehicles. It is made from rubber/elastomer material and is engineered for reliable sway bar support on the front-to-frame mount.

Key Features

• Standard replacement stabilizer bar bushing kit for OE-style service
• Rubber/elastomer construction for suspension isolation and bar support
• Inside diameter: 1.05 in.; outside diameter: 1.66 in.; width: 2.2 in.
• Assembled length: 1.8 in.
• No grease fitting included
• No bracket included
• Compatible with 1998-2004 Toyota Tacoma, front to frame, 27 mm diameter bar

Detailed Description

This Dorman 540-536 stabilizer bar bushing kit is precision-engineered and tested to replace the original equipment bushing on select Toyota Tacoma applications. It supports the sway bar where it mounts to the frame, helping maintain proper bar location and suspension response on 1998-2004 Toyota Tacoma front-to-frame setups with a 27 mm diameter bar. This part cross-references MOOG Chassis Products K80817 for the same application.

What It Helps Address

• Clunking or rattling from worn stabilizer bar bushings
• Excessive sway bar movement at the frame mount
• Loose or degraded rubber bushing material
• Suspension noise during cornering or uneven-road driving
• Restoring OE-style fit on Toyota Tacoma front suspension service

Installation Notes and Tips

Verify the sway bar diameter before installation; this application is for a 27 mm diameter bar. Inspect the stabilizer bar and mounting area for wear, corrosion, or damage before replacing the bushings. Confirm front-to-frame placement and compare the new bushing dimensions to the removed part for proper fitment on your Toyota Tacoma.

Quality Assurance

Dorman designs this replacement part to meet standard replacement requirements and subjects it to engineering review and testing for fit and function on the listed vehicle application.
