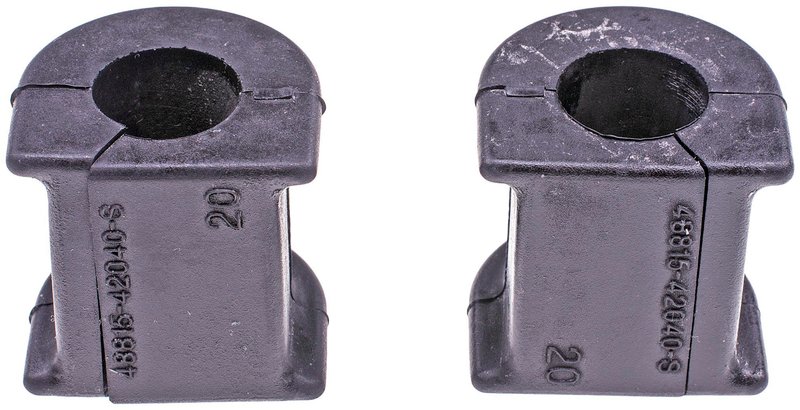

Dorman 540-564 Suspension Stabilizer Bar Bushing Kit - Rear

Dorman 540-564 Rear Stabilizer Bar Bushings

Restore rear sway bar support with this Dorman suspension stabilizer bar bushing kit for select Toyota applications. Built as a standard replacement, it uses rubber/elastomer construction and OE-style dimensions to match the original rear stabilizer bar interface on the vehicle.

Compatible With 2001-2005 Toyota RAV4, rear. The Dorman 540-564 is a direct-fit suspension stabilizer bar bushing kit for drivers looking for a precise replacement on the rear sway bar mounting points.

Key Features

• Standard replacement stabilizer bar bushing kit for select Toyota RAV4 models
• Rubber and elastomer material for OE-style compliance and support
• Inside diameter: 19.5 mm
• Assembled length: 39.5 mm
• Outside diameter: 30 mm
• Width: 40 mm
• No grease fitting included
• No bracket included

Detailed Product Overview

Dorman 540-564 is engineered and tested as a replacement for the original rear stabilizer bar bushings on 2001-2005 Toyota RAV4 vehicles. The bushing dimensions are specified to align with the rear suspension stabilizer bar mounting location, helping maintain proper bar support and consistent suspension response. If you are searching for a rear sway bar bushing kit for Toyota RAV4 2001, 2002, 2003, 2004, or 2005 models, this part number provides a focused OE-style service solution. This part cross-references Toyota OE part number 4881542040 for the same application.

Common Issues This Part May Address

• Rear stabilizer bar movement caused by worn bushings
• Clunking or knocking noises from the rear suspension
• Excessive sway bar play at the mounting points
• Reduced suspension stability from deteriorated rubber bushings
• Uneven rear-end response over bumps and turns

Installation Notes and Tips

Verify rear fitment before installation on 2001-2005 Toyota RAV4 applications. Inspect the stabilizer bar and mounting surfaces for wear, corrosion, or deformation before installing the new bushings. Because no bracket is included, reuse the existing hardware only if it is in serviceable condition and matches the original configuration.

Quality Assurance

Dorman designs this suspension stabilizer bar bushing kit as a standard replacement part and subjects it to testing for reliable OE-style service on the specified vehicle applications. The part number is 540-564.
