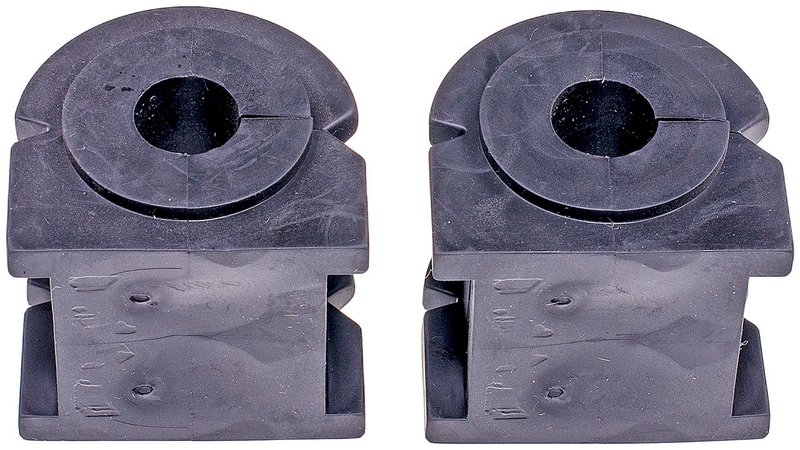

Dorman 540-624 Suspension Stabilizer Bar Bushing Kit - Rear

Dorman 540-624 Rear Stabilizer Bar Bushings

Dorman 540-624 is a rear suspension stabilizer bar bushing kit engineered as a standard replacement for the original equipment on specific vehicles. It is built from rubber/elastomer material and sized for the rear sway bar application used on select Dodge Caliber, Jeep Compass, and Jeep Patriot models.

Key Features

• Standard replacement stabilizer bar bushing kit for rear suspension service
• Rubber/elastomer construction for OE-style fit and function
• Inside diameter: 0.52 in.; outside diameter: 1.35 in.; width: 1.75 in.
• Assembled length: 1.64 in.
• Bracket included: No
• Grease fitting included: No
• Fits rear stabilizer bar applications with a 14.20 mm diameter bar
• Cross-reference: MOOG Chassis Products K200209

Detailed Description

This Dorman stabilizer bar bushing kit is precision-engineered and tested to replace the original rear sway bar bushings on select vehicles. It is a direct-fit suspension service part for 2007-2012 Dodge Caliber, rear; 2007-2009 Jeep Compass, rear; 2010 Jeep Compass, rear; 2007-2009 Jeep Patriot, rear; and 2010 Jeep Patriot, rear. If you are servicing a Dodge Caliber rear stabilizer bar bushing or replacing worn Jeep Compass and Jeep Patriot rear sway bar bushings, Dorman 540-624 provides the correct OE-style dimensions for the application.

What It Helps Fix

• Rear suspension clunking or rattling from worn stabilizer bar bushings
• Excess sway bar movement caused by deteriorated rubber bushings
• Loose-feeling rear suspension response during cornering
• Noise from cracked, hardened, or compressed sway bar bushings
• Fitment issues when replacing the original rear bar bushings on the listed vehicles

Installation Notes

Verify the rear stabilizer bar diameter before installation; this part is listed for 14.20 mm diameter bar applications. Inspect the sway bar, brackets, and surrounding suspension components for wear before reassembly. Because no bracket or grease fitting is included, reuse or replace related hardware as needed based on the vehicle’s service condition.

Quality Assurance

Dorman manufactures this part as a standard replacement suspension component and subjects it to engineering and testing for reliable OE-style service on the specified applications.
