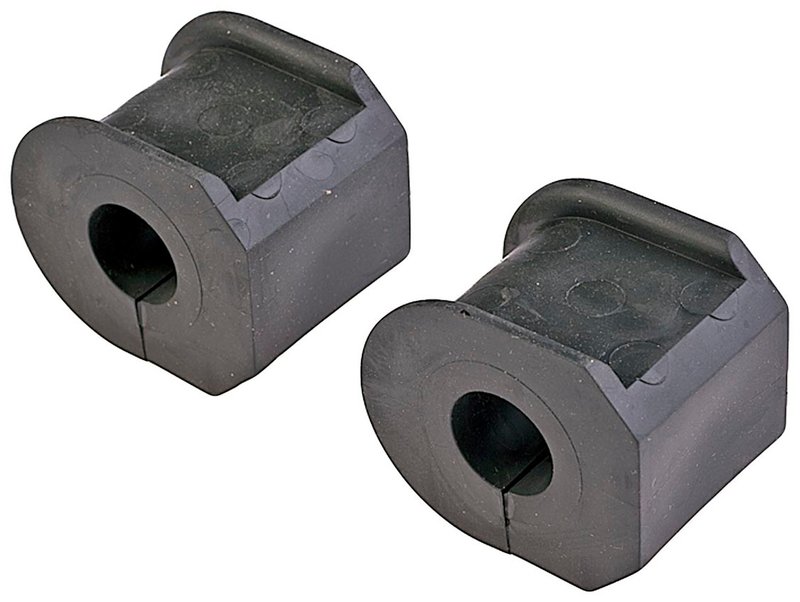

Dorman 540-675 Suspension Stabilizer Bar Bushing Kit - Front

Dorman 540-675 Stabilizer Bar Bushings

Dorman 540-675 is a suspension stabilizer bar bushing kit for the front suspension on select Ford Super Duty trucks. It is precision-engineered and tested as a standard replacement for the original equipment bushing on 2005-2007 Ford F-250 Super Duty and 2005-2007 Ford F-350 Super Duty applications.

Key Features

• Rubber bushing construction for stabilizer bar support
• Inside diameter: 21 mm
• Outside diameter: 1.9 in.
• Width: 1.9 in.
• Assembled length: 1.67 in.
• Bracket not included
• Grease fitting not included
• Standard replacement grade

Detailed Description

This Dorman stabilizer bar bushing kit, part number 540-675, is built for front sway bar service on the Ford F-250 Super Duty and Ford F-350 Super Duty. The rubber material helps restore stabilizer bar support at the chassis mounting point, which is important for maintaining consistent suspension control and reducing unwanted movement in the front end. This part cross-references MOOG Chassis Products K200880 for the same application.

Common Issues It May Address

• Front sway bar clunking or rattling over bumps
• Excessive stabilizer bar movement at the frame mount
• Worn or cracked original rubber bushings
• Loose-feeling front suspension response
• Noise caused by deteriorated stabilizer bar support components

Installation Notes and Tips

Verify the inside diameter and mounting dimensions before installation. This part is for front position use on 2005-2007 Ford F-250 Super Duty and 2005-2007 Ford F-350 Super Duty applications. Inspect the stabilizer bar and mounting brackets for wear or damage during service, since bracket hardware is not included.

Quality Assurance

Dorman manufactures this suspension stabilizer bar bushing kit as a tested replacement part for specific OE applications. Part number 540-675 is engineered to match the original fit and function required for the listed Ford Super Duty front suspension applications.
