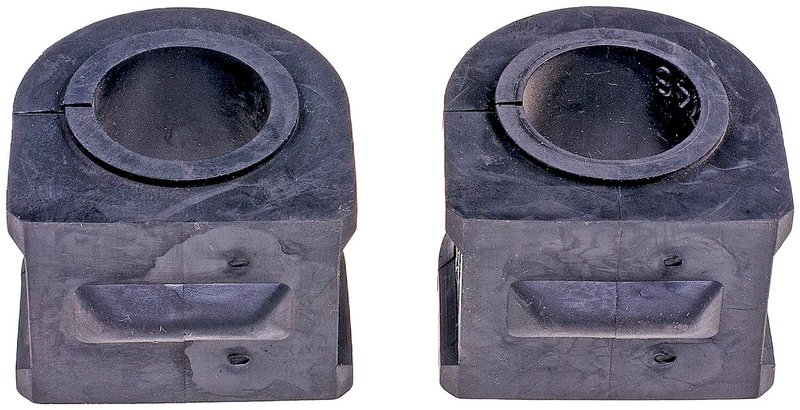

Dorman 540-740 Suspension Stabilizer Bar Bushing Kit - Front To Frame

Dorman 540-740 Stabilizer Bar Bushing Kit

Dorman 540-740 is a suspension stabilizer bar bushing kit for specific Chevrolet Camaro and Pontiac Firebird applications. It replaces worn front-to-frame sway bar bushings with a standard replacement rubber design for 30 mm diameter bars.

Key Features

• Precision-engineered replacement for the original equipment stabilizer bar bushings
• Rubber construction for suspension service on street-driven vehicles
• Inside diameter: 30 mm
• Outside diameter: 2.2 in.
• Width: 1.98 in.
• Assembled length: 1.6 in.
• Bracket not included
• Grease fitting not included
• Standard replacement grade

Detailed Description

This Dorman suspension stabilizer bar bushing kit, part number 540-740, is built as a direct OE-style replacement for front-to-frame sway bar service. It is listed for 1993-2002 Chevrolet Camaro, front to frame, 30 mm diameter bar, and 1993-2002 Pontiac Firebird, front to frame, 30 mm diameter bar. For shoppers searching for a 30 mm sway bar bushing kit for Camaro or Firebird front suspension repair, Dorman 540-740 provides the correct fitment profile for those applications.

This part cross-references Delphi TD4549W for the same application.

What It Helps Address

• Clunking or rattling from worn front stabilizer bar bushings
• Excess sway bar movement at the frame mount
• Loose-feeling front suspension response
• Noise caused by deteriorated rubber bushings
• Restoration of proper sway bar support on Camaro and Firebird front-to-frame mounts

Installation Notes and Tips

Verify the stabilizer bar diameter before installation; this kit is specified for 30 mm bars. Inspect the mounting area and related suspension components for wear before reassembly. Because the bracket is not included, reuse or source the correct bracket as needed for the vehicle application.

Quality Assurance

Dorman states that this stabilizer bar bushing kit is precision-engineered and rigorously tested to provide reliable replacement performance for the original equipment on specific vehicles. It is a standard replacement part for suspension service on 1993-2002 Chevrolet Camaro and 1993-2002 Pontiac Firebird applications.
