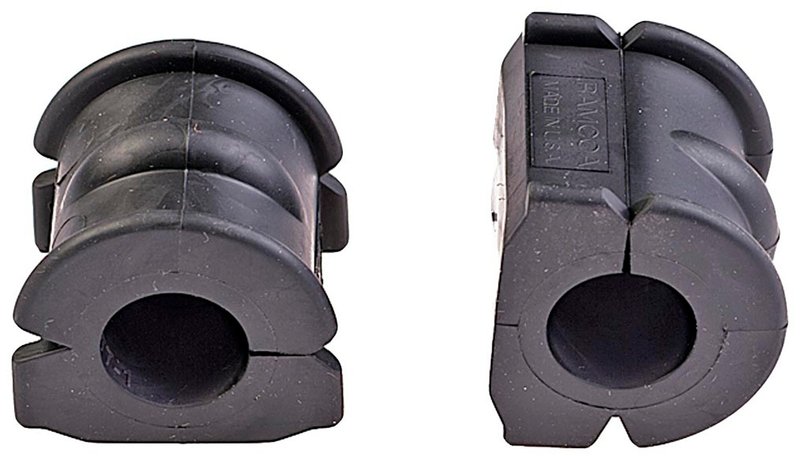

Dorman 540-761 Suspension Stabilizer Bar Bushing Kit - Rear To Frame

Dorman 540-761 Stabilizer Bar Bushing Kit

Dorman 540-761 is a suspension stabilizer bar bushing kit built as a standard replacement for specific vehicles. It uses rubber construction and is precision-engineered and tested to match the original equipment function on the listed applications, including Saturn Vue, Chevrolet Equinox, and Pontiac Torrent rear-to-frame mounts.

Key Features

• Rubber bushing construction for suspension stabilizer bar service
• Standard replacement grade for OE-style fit and function
• Specific fit application for rear to frame mounting locations
• Black finish with an assembled length of 1.71 in., width of 1.53 in., height of 1.6 in., and outside diameter of 1.85 in.
• Inside diameter measures 16.33 for proper stabilizer bar interface
• Grease fitting not included
• Mounting hardware not included
• Bracket not included

Detailed Description

This Dorman stabilizer bar bushing kit, part number 540-761, is made for direct replacement on select GM and Saturn platforms. It is listed for 2002-2010 Saturn Vue rear to frame, 2005-2006 Chevrolet Equinox rear to frame, and 2006 Pontiac Torrent rear to frame. The rubber material and OE-style dimensions support a precise fit at the stabilizer bar mounting point, helping restore proper bushing support in the rear suspension.

This part cross-references MOOG Chassis Products K200336 for the same application.

What It Helps Address

• Worn stabilizer bar bushings that can create suspension looseness
• Clunking or squeaking from the rear stabilizer bar area
• Excessive movement at the rear to frame stabilizer bar mount
• Loss of consistent sway bar support on Saturn Vue, Chevrolet Equinox, and Pontiac Torrent models

Installation Notes and Tips

Verify the rear to frame mounting location before installation and compare the original bushing dimensions to the part number 540-761. Inspect the stabilizer bar, brackets, and surrounding hardware for wear or corrosion before reassembly. Because mounting hardware and brackets are not included, reuse or replace related components as needed based on vehicle condition.

Quality Assurance

Dorman designs this suspension stabilizer bar bushing kit as a tested replacement for the original equipment on the specified vehicles. The part is built to standard replacement specifications for consistent fitment on the listed Saturn Vue, Chevrolet Equinox, and Pontiac Torrent applications.
