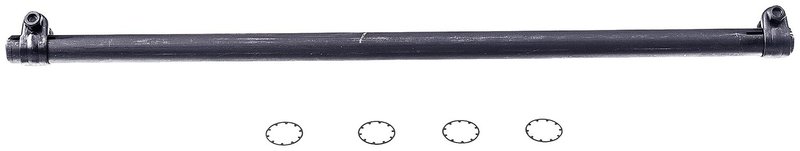

Dorman 540-950 Steering Tie Rod End Adjusting Sleeve - Right (Pitman Arm to Connecting Tie Rod)
Dorman 540-950 Steering Tie Rod End Adjusting Sleeve
Dorman 540-950 is a steering tie rod end adjusting sleeve built for specific Jeep Wrangler applications. It is a steel, left-hand threaded sleeve with a fine 11/16 in. thread diameter, made to replace the original steering linkage component on the right side of the pitman arm to connecting tie rod connection.
Key Features
- Direct replacement steering tie rod end adjusting sleeve for select Jeep Wrangler models
- Steel construction with black finish
- Counterclockwise, left-hand thread direction
- Fine thread design with 11/16 in. thread diameter and 18 thread pitch
- Female ends on both sides for steering linkage connection
- Standard replacement grade for OE-style service
- Mounting hardware included
Detailed Description
This Dorman steering tie rod end adjusting sleeve is precision-engineered and tested for reliable replacement performance on the original steering setup. It is designed for 1991-1995 Jeep Wrangler models in the right-side position between the pitman arm and connecting tie rod. If you are searching for a Jeep Wrangler steering tie rod adjusting sleeve, Dorman 540-950 provides the correct left-hand threaded fitment and dimensions for service work on the steering linkage. This part cross-references Mevotech Supreme MDS1236S for the same application.
Common Problems It Can Help Address
- Worn or damaged steering linkage sleeve threads
- Loose or inconsistent toe adjustment during alignment
- Corrosion on the original tie rod adjusting sleeve
- Steering play caused by a failing sleeve connection
- Need for a replacement sleeve during front-end steering service
Installation Notes and Tips
Verify thread direction before installation, since this sleeve uses counterclockwise left-hand threads. Confirm the vehicle position and steering linkage layout on 1991-1995 Jeep Wrangler models before service. After installation, perform a professional wheel alignment to set toe correctly and inspect adjacent steering components for wear.
Quality Assurance
Dorman designs this replacement part to match the original steering application and subjects it to testing for dependable service on the specified Jeep Wrangler fitment. Part number 540-950 is intended for direct replacement use in the listed steering position.
| Brand | Dorman |
|---|---|
| Part Number | 540-950 |
| Material | Acero |
| Material | Steel |
| Thread Direction | Counterclockwise (left) |
| Thread Direction | Rotar en el sentido contrario a las agujas del reloj (izquierda) |
| Length | 612 |
| Color | Black |
| Color | Negro |
| Color | Noir |
| Clamps Included | No |
| Clamps Included | Non |
| End 1 Gender | Female |
| End 1 Gender | Hembra |
| End 2 Gender | Female |
| End 2 Gender | Hembra |
| Outside Diameter | 35 |
| Mounting Hardware Included | Oui |
| Mounting Hardware Included | Sí |
| Mounting Hardware Included | Yes |
| Grade Type | Reemplazo estándar |
| Grade Type | Standard replacement |
| Bolts Included | No |
| Bolts Included | Non |
| End 1 Thread Type | Media |
| End 1 Thread Type | Medium |
| Thread Type | Fine |
| Thread Type | Fino |
| Arandela incluida | No |
| Contenidos del paquete | 1 manga de ajuste del terminal de la dirección |
| Contenidos del paquete | 2 ensambles de brazo de soporte |
| Diámetro de la rosca | 11/16in, 11/16in |
This part fits 5 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1995 | Jeep | Wrangler | Right (Pitman Arm to Connecting Tie Rod) | |
| 1994 | Jeep | Wrangler | Right (Pitman Arm to Connecting Tie Rod) | |
| 1993 | Jeep | Wrangler | Right (Pitman Arm to Connecting Tie Rod) | |
| 1992 | Jeep | Wrangler | Right (Pitman Arm to Connecting Tie Rod) | |
| 1991 | Jeep | Wrangler | Right (Pitman Arm to Connecting Tie Rod) |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
