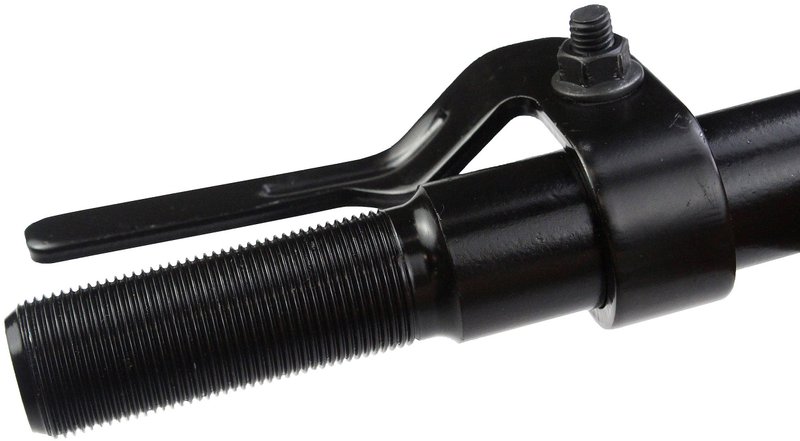

Dorman 541-031 Steering Drag Link - At Pitman Arm
| Brand | Dorman 541-031 |
|---|---|
| Position | At Pitman Arm |
| Material | Acero |
| Material | Steel |
| Maximum Diameter | 29 |
| Length | 938 |
| Color | Black |
| Color | Negro |
| Color | Noir |
| Finish | Con recubrimiento electrostático |
| Finish | E-coated |
| Centerline Length | 938 |
| Mount Stud Quantity | 1 |
| Mount Stud Quantity | 1 ensamble de manguera del calentador |
| Type | Roscado |
| Type | Threaded |
| Mounting Hardware Included | Oui |
| Mounting Hardware Included | Sí |
| Mounting Hardware Included | Yes |
| Grade Type | Reemplazo estándar |
| Grade Type | Standard replacement |
| Mounting Hole Quantity | 0 |
| Contenidos del paquete | 1 perno |
| Contenidos del paquete | 1ensamble de barra de acoplación |
| Contenidos del paquete | 1grasera |
| Contenidos del paquete | 1pasador (chaveta) |
| Contenidos del paquete | 1rótula |
| Contenidos del paquete | 1tuerca |
| Contenidos del paquete | 1tuerca de seguridad (tipo castillo) |
| Diámetro de la rosca de la argolla | 16mm |
| End 1 Attachment Size | 1/16 in |
| End 1 Attachment Type | Roscado |
| Fits | Ford · 10 vehicles |
Standard replacement. Direct-fit drag link for restoring steering linkage function.
Steel construction. Built for strength with an E-coated finish for added corrosion resistance.
Grease fitting included. Allows routine lubrication to help maintain smooth operation.
Cross-references Delphi TA5636, Mevotech Original Grade GS40973 and Mevotech Supreme MS40973 for the same application. See all 6.
Dorman 541-031 Steering Drag Link
This Dorman steering drag link is a direct replacement for the original steering linkage on select Ford heavy-duty trucks. Built from steel with an E-coated black finish, it is engineered for dependable steering response on the 2011-2016 Ford F-350 Super Duty at the pitman arm with the Extended Axle (Fatboy Option).
Key Features
- Steel construction for steering system durability
- E-coated black finish for added surface protection
- Threaded end attachment design
- Includes a grease fitting for serviceability
- Standard replacement grade for OE-style fit and function
- Fits the pitman arm location on select Ford F-350 Super Duty applications
Detailed Description
Dorman 541-031 is a steering drag link assembly made for specific Ford F-350 Super Duty trucks from 2011 through 2016. It is precision-engineered and tested to replace the original equipment part on vehicles equipped with the Extended Axle (Fatboy Option), helping restore proper steering linkage geometry and road feel. This part cross-references MOOG Chassis Products DS300039 for the same application.
Built with steel and threaded end connections, this drag link uses a 16 mm stud thread diameter and includes a grease fitting for routine maintenance. The black E-coated finish adds corrosion resistance, while the standard replacement design supports a straightforward OE-style service repair. The Dorman 541-031 is a practical choice when servicing steering components on a Ford F-350 Super Duty, especially when the original drag link shows wear at the pitman arm connection.
What It Is Used For
- Correcting steering looseness at the pitman arm connection
- Replacing a worn or damaged drag link on Ford F-350 Super Duty trucks
- Addressing steering play, clunking, or imprecise wheel response
- Restoring linkage alignment in trucks with the Extended Axle (Fatboy Option)
- Supporting maintenance of the steering system with a greaseable design
Installation Notes and Tips
Fits 2011-2016 Ford F-350 Super Duty, at pitman arm, with Extended Axle (Fatboy Option). Verify steering configuration, pitman arm location, and thread size before installation. After replacement, inspect related steering components and perform a proper front-end alignment if required by the repair procedure.
Quality Assurance
Dorman states that this steering drag link is precision-engineered and rigorously tested for reliable replacement performance on the specified vehicles. The part is built as a standard replacement component for service use on the listed Ford application.
| Year | Make | Model | Body Type | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2016 | Ford | F-350 Super Duty | — | 4WD | At Pitman Arm | w/Extended Axle (Fatboy Option) |
| 2015 | Ford | F-350 Super Duty | — | 4WD | At Pitman Arm | w/Extended Axle (Fatboy Option) |
| 2014 | Ford | F-350 Super Duty | — | 4WD | At Pitman Arm | w/Extended Axle (Fatboy Option) |
| 2014 | Ford | F-450 Super Duty | Crew Cab Pickup | — | At Pitman Arm | — |
| 2013 | Ford | F-350 Super Duty | — | 4WD | At Pitman Arm | w/Extended Axle (Fatboy Option) |
| 2013 | Ford | F-450 Super Duty | Crew Cab Pickup | — | At Pitman Arm | — |
| 2012 | Ford | F-350 Super Duty | — | 4WD | At Pitman Arm | w/Extended Axle (Fatboy Option) |
| 2012 | Ford | F-450 Super Duty | Crew Cab Pickup | — | At Pitman Arm | — |
| 2011 | Ford | F-350 Super Duty | — | 4WD | At Pitman Arm | w/Extended Axle (Fatboy Option) |
| 2011 | Ford | F-450 Super Duty | Crew Cab Pickup | — | At Pitman Arm | — |
