Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

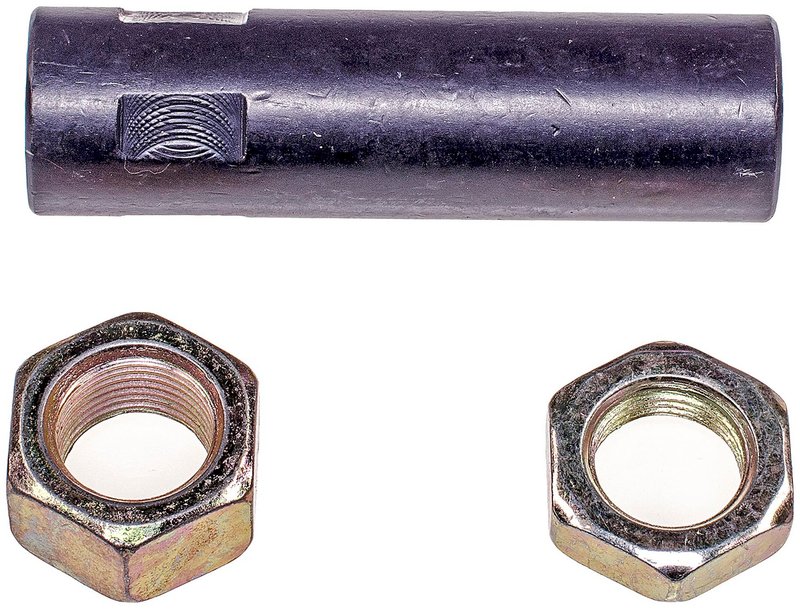

Dorman 541-569 Steering Tie Rod End Adjusting Sleeve - Front
| Brand | Dorman 541-569 |
|---|---|
| Position | Front |
| Material | Acero |
| Material | Steel |
| Thread Direction | Counterclockwise (left) |
| Thread Direction | Rotar en el sentido contrario a las agujas del reloj (izquierda) |
| Length | 85 |
| Color | Black |
| Color | Negro |
| Color | Noir |
| Clamps Included | No |
| Clamps Included | Non |
| End 1 Gender | Female |
| End 1 Gender | Hembra |
| End 2 Gender | Female |
| End 2 Gender | Hembra |
| Outside Diameter | 35 |
| Mounting Hardware Included | Oui |
| Mounting Hardware Included | Sí |
| Mounting Hardware Included | Yes |
| Grade Type | Reemplazo estándar |
| Grade Type | Standard replacement |
| Bolts Included | No |
| Bolts Included | Non |
| End 1 Thread Type | Media |
| End 1 Thread Type | Medium |
| Thread Type | Coarse |
| Thread Type | Grueso |
| Arandela incluida | No |
| Contenidos del paquete | 1 manga de ajuste |
| Contenidos del paquete | 2 tuercas |
| Diámetro de la rosca | 18 mm |
| Fits | Chrysler and Dodge · 24 vehicles |
Standard replacement. Precision-engineered and rigorously tested for reliable replacement performance.
Steel construction. Provides durable strength for steering hardware applications.
Counterclockwise thread. Matches the original sleeve design for straightforward adjustment.
Cross-references Centric Parts 612.63815, Delphi TA5541 and Mevotech Original Grade GES3201S for the same application. See all 10.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Steering Tie Rod End Adjusting Sleeve for Chrysler and Dodge
Dorman 541-569 is a steel steering tie rod end adjusting sleeve made for front steering service on select Chrysler and Dodge vehicles. It is precision-engineered and tested as a standard replacement for the original sleeve, helping restore proper tie rod adjustment and steering geometry.
Key Features
- Steel construction for steering hardware durability
- Counterclockwise (left) thread direction
- Female ends with coarse M1.5 thread pitch
- 18 mm thread diameter and 27 mm end 1 thread diameter
- 85 mm overall length and 35 mm outside diameter
- Black finish for a clean OE-style appearance
- Mounting hardware included
- Compatible With 1993-1997 Chrysler Concorde, front
- Compatible With 1993-1997 Chrysler Intrepid, front
- Compatible With 1994-1997 Chrysler LHS, front
- Compatible With 1993-1997 Dodge Intrepid, front
Detailed Description
This Dorman 541-569 steering tie rod end adjusting sleeve is built for front steering linkage service where precise toe adjustment is required. The steel body, left-hand thread, and metric coarse thread design support accurate alignment work on the listed Chrysler Concorde, Chrysler Intrepid, Chrysler LHS, and Dodge Intrepid applications. This part cross-references MOOG Chassis Products ES3201S and Mevotech Supreme MES3201S for the same application.
What It Helps Address
- Loose or worn steering linkage adjustment points
- Difficulty setting front-end alignment
- Uneven tire wear caused by incorrect toe settings
- Steering pull related to worn tie rod sleeve hardware
- Corrosion or damage to the original adjusting sleeve
Installation Notes and Tips
Verify left-hand thread orientation before installation, since this sleeve uses counterclockwise threads. Confirm thread diameter, pitch, and end dimensions against the original part before assembly. After installation, perform a professional alignment to set toe correctly on the front suspension.
Quality Assurance
Dorman manufactures this part as a standard replacement steering component and subjects it to precision engineering and testing for reliable service on the specified vehicles. The design follows the original fitment requirements for 1993-1997 Chrysler Concorde, 1993-1997 Chrysler Intrepid, 1994-1997 Chrysler LHS, and 1993-1997 Dodge Intrepid, front steering applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1997 | Chrysler | Concorde | Front | — |
| 1997 | Chrysler | Intrepid | Front | — |
| 1997 | Chrysler | LHS | Front | — |
| 1997 | Dodge | Intrepid | Front | — |
| 1997 | Eagle | Vision | Front | — |
| 1996 | Chrysler | Concorde | Front | — |
| 1996 | Chrysler | Intrepid | Front | — |
| 1996 | Chrysler | LHS | Front | — |
| 1996 | Dodge | Intrepid | Front | — |
| 1996 | Eagle | Vision | Front | — |
| 1995 | Chrysler | Concorde | Front | — |
| 1995 | Chrysler | Intrepid | Front | — |
| 1995 | Chrysler | LHS | Front | — |
| 1995 | Dodge | Intrepid | Front | — |
| 1995 | Eagle | Vision | Front | — |
| 1994 | Chrysler | Concorde | Front | — |
| 1994 | Chrysler | Intrepid | Front | — |
| 1994 | Chrysler | LHS | Front | — |
| 1994 | Dodge | Intrepid | Front | — |
| 1994 | Eagle | Vision | Front | — |
| 1993 | Chrysler | Concorde | Front | — |
| 1993 | Chrysler | Intrepid | Front | — |
| 1993 | Dodge | Intrepid | Front | — |
| 1993 | Eagle | Vision | Front | — |
