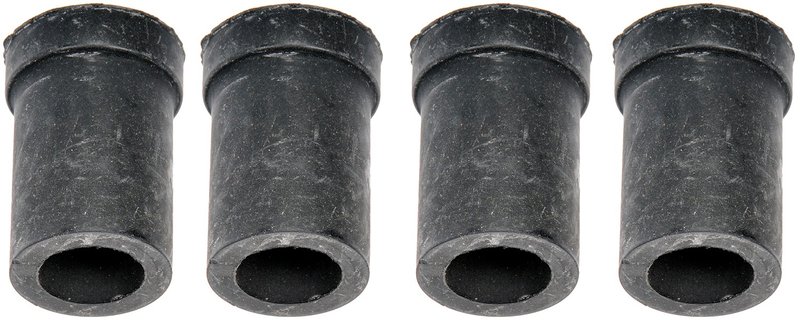

Dorman 541-600 Leaf Spring Shackle Bushing - Front Forward or Front Lower

Leaf Spring Shackle Bushing for OE Replacement

The Dorman 541-600 leaf spring shackle bushing is a standard replacement suspension bushing built for specific Chevrolet and GMC applications. It uses rubber construction and OE-style dimensions to restore the connection point between the leaf spring shackle and suspension hardware on front forward locations.

Compatible with 1973-1991 Chevrolet Blazer, 1973-1991 GMC Jimmy, and select Chevrolet K-series and GMC K-series trucks and Suburban models, this bushing is a direct-fit service part for front forward leaf spring shackle locations. The Dorman 541-600 is also cross-referenced to Delphi TD5010W and K200911 for the same application.

Key Features

• Rubber leaf spring shackle bushing for suspension service
• Standard replacement grade for OE-style fit and function
• Black finish
• Inside diameter: 14.5 mm
• Outside diameter: 38.3 mm
• Width: 38.3 mm
• Length: 75.7 mm
• Mounting hardware not included
• Bolts not included

Detailed Description

Dorman 541-600 is engineered as a replacement leaf spring shackle bushing for vehicles that use a front forward suspension mounting position. The rubber construction helps maintain the proper interface between the shackle and spring hardware, while the listed dimensions support accurate service replacement on the specified Chevrolet Blazer, GMC Jimmy, and related K10, K20, K30, K5 Blazer, K1500, K2500, and K3500 applications. If you are servicing a Chevrolet Blazer or GMC Jimmy front suspension, this part number provides a direct replacement option for worn OE bushings.

What It Helps Fix

• Clunking or knocking from worn leaf spring shackle bushings
• Excess suspension movement at the shackle connection
• Loose or deteriorated rubber in the front forward leaf spring mount
• Uneven suspension response caused by bushing wear
• Restoration of proper leaf spring alignment during service

Installation Notes and Tips

Verify the vehicle year, make, model, and front forward position before installation. Inspect the shackle, spring eye, and surrounding hardware for wear or corrosion before pressing in the new bushing. Because bolts and mounting hardware are not included, reuse or replace related hardware as needed during the repair. Confirm dimensions against the original part when servicing a Chevrolet Blazer, GMC Jimmy, or other listed K-series application.

Quality Assurance

This Dorman suspension bushing is precision-engineered and tested as a replacement for the original equipment part on specific vehicles. Part number 541-600 is built to meet standard replacement expectations for service work on the listed Chevrolet and GMC applications.
