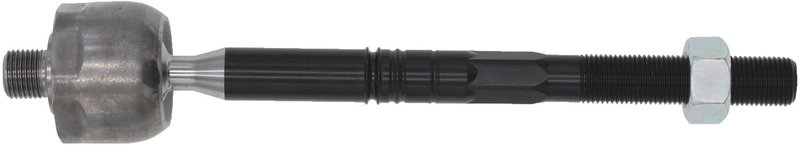

Dorman 543-847 Steering Tie Rod End - Front Inner
| Brand | Dorman 543-847 |
|---|---|
| Position | Front Inner |
| Length | 110 |
| Color | Black |
| Color | Negro |
| Color | Noir |
| Finish | Powder coated |
| Finish | Revestimiento en polvo |
| Pre-Greased | Oui |
| Pre-Greased | Sí |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Grease Fitting Included | Non |
| Type | Recto |
| Type | Straight |
| Mounting Hardware Included | Oui |
| Mounting Hardware Included | Sí |
| Mounting Hardware Included | Yes |
| Grade Type | Reemplazo estándar |
| Grade Type | Standard |
| End 1 Thread Direction | Clockwise (right) |
| End 1 Thread Direction | Rotar en el sentido de las agujas del reloj (derecha) |
| End 2 Thread Direction | Clockwise (right) |
| End 2 Thread Direction | Rotar en el sentido de las agujas del reloj (derecha) |
| Stud Type | Cono |
| Stud Type | Taper |
| Dust Boot Material | Policloropreno |
| Dust Boot Material | Polychloroprene |
| Tie Rod Material | Acero |
| Tie Rod Material | Steel |
| Contenidos del paquete | 1 extremo del terminal de la dirección |
| Diámetro la rosca de extremo 1 | 18mm |
| Fits | Cadillac · 12 vehicles |
Direct replacement. Matches the original equipment steering tie rod end on specific applications.
Pre-greased design. Ready for service with no grease fitting included.
Steel construction. Powder-coated finish and a polychloroprene dust boot add protection.
Cross-references Delphi TA6489, Mevotech Original Grade GS50744 and Mevotech Supreme MS50744 for the same application. See all 5.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Steering Tie Rod End Overview
This Dorman steering tie rod end is a direct replacement for the original equipment part on specific applications. It is built for smooth, safe steering response and is engineered to match the standard replacement format used in service repairs.
Key Features
- Direct replacement steering tie rod end for service on select vehicles
- Steel construction with a powder-coated finish for added surface protection
- Pre-greased design for ready-to-install service
- Tapered stud design with right-hand thread direction on both ends
- Black dust boot made from polychloroprene
- Standard replacement grade for steering linkage repair
Detailed Description
Part number 543-847 is a steering tie rod end designed for specific Cadillac steering applications, including Cadillac ATS and Cadillac CT4 models. It replaces the original equipment tie rod end and follows the same general service layout used in the steering system. The steel body, powder-coated finish, and pre-greased construction support consistent operation in a demanding steering environment. Part number 543-847 is also cross-referenced to Monroe Shocks & Struts 172286 and 182286 for the same application.
For Cadillac ATS and Cadillac CT4 owners, this tie rod end addresses wear in the steering linkage while maintaining the original service configuration. The tapered stud and threaded ends help it integrate with the existing steering assembly, and the dust boot material helps protect internal components from contamination.
What It Is Used For
- Steering looseness caused by a worn tie rod end
- Clunking or play in the front steering linkage
- Uneven tire wear related to steering geometry issues
- Imprecise steering feel during normal driving
- Replacement of a damaged or corroded steering joint
Installation Notes and Tips
Verify fitment by year, make, model, and steering position before installation. This part is listed for front inner applications on 2013-2019 Cadillac ATS and 2020-2024 Cadillac CT4. After replacement, a professional wheel alignment is recommended to restore steering geometry. Part number 543-847 should be matched to the vehicle’s original steering linkage specifications before service.
Quality Assurance
Dorman states that this part has undergone an industry-leading evaluation process to support smooth, safe operation. It is a standard replacement steering component intended to meet the demands of routine steering system service.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2024 | Cadillac | CT4 | Front Inner | — |
| 2023 | Cadillac | CT4 | Front Inner | — |
| 2022 | Cadillac | CT4 | Front Inner | — |
| 2021 | Cadillac | CT4 | Front Inner | — |
| 2020 | Cadillac | CT4 | Front Inner | — |
| 2019 | Cadillac | ATS | Front Inner | — |
| 2018 | Cadillac | ATS | Front Inner | — |
| 2017 | Cadillac | ATS | Front Inner | — |
| 2016 | Cadillac | ATS | Front Inner | — |
| 2015 | Cadillac | ATS | Front Inner | — |
| 2014 | Cadillac | ATS | Front Inner | — |
| 2013 | Cadillac | ATS | Front Inner | — |
