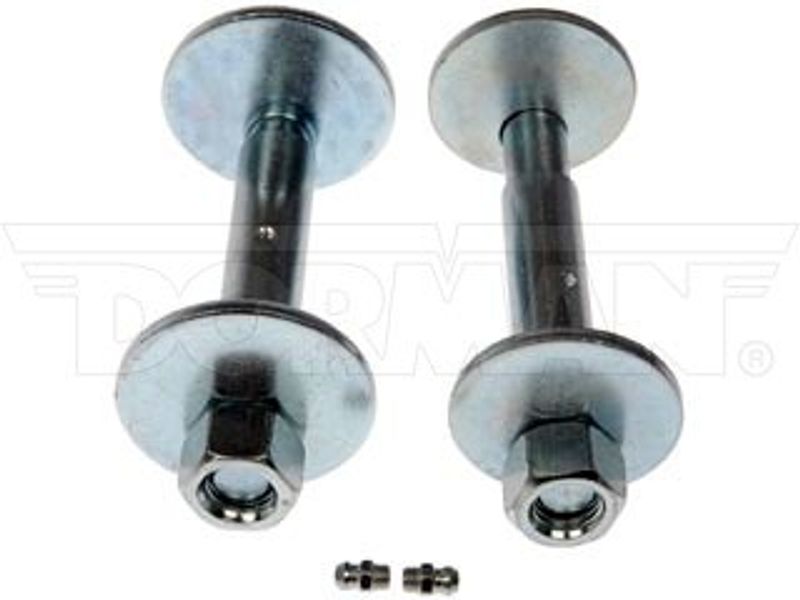

Dorman 545-256 Alignment Caster / Camber Kit - Front Lower
| Brand | Dorman 545-256 |
|---|---|
| Position | Front Lower |
| Material | Acero |
| Material | Steel |
| Color | Black |
| Color | Negro |
| Color | Noir |
| Batteries Required | No |
| Batteries Required | Non |
| Grade Type | Reemplazo estándar |
| Grade Type | Standard replacement |
| Shims Included | Oui |
| Shims Included | Sí |
| Shims Included | Yes |
| Anchura máxima de laminilla | 57mm |
| Contenidos del paquete | 2 alemites |
| Contenidos del paquete | 2 tornillos, 4 placas de árbol de levas, 2 tuercas de retención |
| Longitud mínima de laminilla | 125 mm |
| Máximo espesor de laminilla | 6mm |
| Maximum Shim Thickness | 6 mm |
| Maximum Shim Width | 57 mm |
| Minimum Shim Length | 125 mm |
| Package Contents | 2 bolts |
| Package Contents | 2 lock nuts |
| Package Contents | 2 zerk fittings |
| Package Contents | 4 cam plates |
| Shim Maximum Length | 135 mm |
| Shim Minimum Width | 51.5 mm |
| Fits | Lexus and Toyota · 39 vehicles |
Standard replacement. Includes the necessary components for proper alignment adjustment.
Steel construction. Provides a durable foundation for steering and suspension adjustment.
Shims included. Helps fine-tune caster and camber settings with added flexibility.
Cross-references Mevotech Supreme MS86043 and MOOG Chassis Products K100129 for the same application. See all 2.
Dorman 545-256 Alignment Kit
Dorman 545-256 is a steel alignment caster and camber kit for front lower suspension adjustment. It provides the components needed to restore alignment settings on select Lexus GX460, Toyota 4Runner, Toyota Tacoma, and Toyota FJ Cruiser applications.
Key Features
- Steel construction with a black finish
- Standard replacement grade for suspension alignment service
- Includes shims for caster and camber adjustment
- Fits front lower suspension positions
- Supports alignment correction on Lexus GX460, Toyota 4Runner, Toyota Tacoma, and Toyota FJ Cruiser
- Cross-references Mevotech Supreme MS86043 and MOOG Chassis Products K100129 for the same application
Product Details
This Dorman alignment caster and camber kit is built for vehicles that require front lower suspension adjustment to bring steering and wheel alignment back within specification. The steel hardware and shim assortment are intended for precise caster and camber correction, with fitment covering 2010-2023 Lexus GX460, 2010-2022 Toyota 4Runner, 2016-2022 Toyota Tacoma, and 2010-2014 Toyota FJ Cruiser. Part number 545-256 is a direct-fit suspension alignment solution for these applications.
Common Alignment Issues It Can Address
- Front-end pull after suspension service or component replacement
- Uneven tire wear caused by incorrect caster or camber settings
- Steering wheel off-center after alignment work
- Difficulty bringing front lower alignment angles into specification
- Suspension geometry changes from worn or replaced steering components
Installation Notes
Install on the front lower suspension position and follow the vehicle-specific alignment procedure after installation. Verify shim selection and adjustment range before final tightening. Because this kit is used for alignment correction, a professional wheel alignment is recommended after the components are installed. Part number 545-256 is listed for the front lower position only.
Quality Assurance
Dorman supplies this kit as a standard replacement suspension alignment component for select Toyota and Lexus platforms. The included steel construction and application-specific hardware support accurate caster and camber adjustment on the listed vehicles.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023 | Lexus | GX460 | Front Lower | Plus or Minus 1-1/2 Degree(s) |
| 2022 | Lexus | GX460 | Front Lower | Plus or Minus 1-1/2 Degree(s) |
| 2022 | Toyota | 4Runner | Front Lower | Plus or Minus 1-1/2 Degree(s) |
| 2022 | Toyota | Tacoma | Front Lower | Plus or Minus 1-1/2 Degree(s) |
| 2021 | Lexus | GX460 | Front Lower | Plus or Minus 1-1/2 Degree(s) |
| 2021 | Toyota | 4Runner | Front Lower | Plus or Minus 1-1/2 Degree(s) |
| 2021 | Toyota | Tacoma | Front Lower | Plus or Minus 1-1/2 Degree(s) |
| 2020 | Lexus | GX460 | Front Lower | Plus or Minus 1-1/2 Degree(s) |
| 2020 | Toyota | 4Runner | Front Lower | Plus or Minus 1-1/2 Degree(s) |
| 2020 | Toyota | Tacoma | Front Lower | Plus or Minus 1-1/2 Degree(s) |
| 2019 | Lexus | GX460 | Front Lower | Plus or Minus 1-1/2 Degree(s) |
| 2019 | Toyota | 4Runner | Front Lower | Plus or Minus 1-1/2 Degree(s) |
| 2019 | Toyota | Tacoma | Front Lower | Plus or Minus 1-1/2 Degree(s) |
| 2018 | Lexus | GX460 | Front Lower | Plus or Minus 1-1/2 Degree(s) |
| 2018 | Toyota | 4Runner | Front Lower | Plus or Minus 1-1/2 Degree(s) |
| 2018 | Toyota | Tacoma | Front Lower | Plus or Minus 1-1/2 Degree(s) |
| 2017 | Lexus | GX460 | Front Lower | Plus or Minus 1-1/2 Degree(s) |
| 2017 | Toyota | 4Runner | Front Lower | Plus or Minus 1-1/2 Degree(s) |
| 2017 | Toyota | Tacoma | Front Lower | Plus or Minus 1-1/2 Degree(s) |
| 2016 | Lexus | GX460 | Front Lower | Plus or Minus 1-1/2 Degree(s) |
| 2016 | Toyota | 4Runner | Front Lower | Plus or Minus 1-1/2 Degree(s) |
| 2016 | Toyota | Tacoma | Front Lower | Plus or Minus 1-1/2 Degree(s) |
| 2015 | Lexus | GX460 | Front Lower | Plus or Minus 1-1/2 Degree(s) |
| 2015 | Toyota | 4Runner | Front Lower | Plus or Minus 1-1/2 Degree(s) |
| 2014 | Lexus | GX460 | Front Lower | Plus or Minus 1-1/2 Degree(s) |
| 2014 | Toyota | 4Runner | Front Lower | Plus or Minus 1-1/2 Degree(s) |
| 2014 | Toyota | FJ Cruiser | Front Lower | Plus or Minus 1-1/2 Degree(s) |
| 2013 | Lexus | GX460 | Front Lower | Plus or Minus 1-1/2 Degree(s) |
| 2013 | Toyota | 4Runner | Front Lower | Plus or Minus 1-1/2 Degree(s) |
| 2013 | Toyota | FJ Cruiser | Front Lower | Plus or Minus 1-1/2 Degree(s) |
| 2012 | Lexus | GX460 | Front Lower | Plus or Minus 1-1/2 Degree(s) |
| 2012 | Toyota | 4Runner | Front Lower | Plus or Minus 1-1/2 Degree(s) |
| 2012 | Toyota | FJ Cruiser | Front Lower | Plus or Minus 1-1/2 Degree(s) |
| 2011 | Lexus | GX460 | Front Lower | Plus or Minus 1-1/2 Degree(s) |
| 2011 | Toyota | 4Runner | Front Lower | Plus or Minus 1-1/2 Degree(s) |
| 2011 | Toyota | FJ Cruiser | Front Lower | Plus or Minus 1-1/2 Degree(s) |
| 2010 | Lexus | GX460 | Front Lower | Plus or Minus 1-1/2 Degree(s) |
| 2010 | Toyota | 4Runner | Front Lower | Plus or Minus 1-1/2 Degree(s) |
| 2010 | Toyota | FJ Cruiser | Front Lower | Plus or Minus 1-1/2 Degree(s) |
