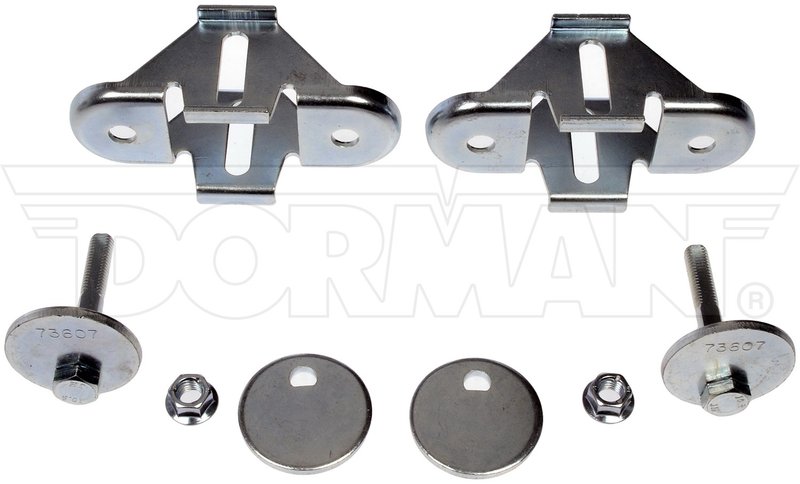

Dorman 545-515 Alignment Camber Kit - Rear
| Brand | Dorman 545-515 |
|---|---|
| Position | Rear |
| Bolt Hole Quantity | 4 |
| Suspension Grade Type | Light |
| Shim Shape | Round |
| Shim Maximum Inside Diameter | 10 |
| Shim Color | Silver |
| Shim Minimum Outside Diameter | 37.9 |
| Shim Maximum Outside Diameter | 38.1 |
| Shim Minimum Thickness | 4.5 |
| Shim Maximum Thickness | 5 |
| Shim Material | Steel |
| Bolt Length | 70 |
| Bolt Thread Diameter | 10 |
| Package Contents | 2 brackets; 2 bolts; 4 cams; 2 lock nuts |
| Fits | Chrysler, Dodge, and Mitsubishi · 55 vehicles |
Precision-engineered. Rigorously tested for reliable replacement performance.
Steel construction. Durable cam components built for dependable alignment adjustment.
Complete kit. Includes brackets, bolts, cams, and lock nuts for installation.
Cross-references MOOG Chassis Products K100048 for the same application. See all 1.
Dorman 545-515 Rear Camber Kit
Dorman 545-515 is a rear alignment camber kit for select Chrysler, Dodge, and Mitsubishi vehicles. It is precision-engineered and tested to replace the original camber adjustment components on applications such as the Chrysler Sebring, Dodge Stratus, Mitsubishi Eclipse, Mitsubishi Diamante, Mitsubishi Galant, and Dodge Avenger.
Key Features
- Rear camber adjustment kit for suspension alignment correction
- Adjusts camber from -1.00 degree to +1.00 degree on listed applications
- Steel shim construction with round shim shape
- 4-bolt hole design with 10 mm bolt thread diameter
- Light-duty suspension grade type
- Fits rear suspension locations only
- Cross-references MOOG Chassis Products K100048 for the same application
Detailed Description
This Dorman alignment camber kit, part number 545-515, is built for rear suspension alignment service where camber correction is needed after wear, repair, or suspension changes. The kit uses steel shims with a round profile and a 4-hole layout to help restore alignment settings on select Chrysler Sebring, Dodge Stratus, Mitsubishi Eclipse, Mitsubishi Diamante, Mitsubishi Galant, and Dodge Avenger rear suspensions. For vehicles in this coverage, it provides a camber adjustment range of -1.00 degree to +1.00 degree.
Use Dorman 545-515 when servicing rear camber on 1995-2005 Chrysler Sebring, 2001-2005 Dodge Stratus, 1995-2005 Mitsubishi Eclipse, 1997-2004 Mitsubishi Diamante, 1994-2003 Mitsubishi Galant, and 1995-2000 Dodge Avenger. The part number 545-515 is a direct-fit style replacement for the listed rear applications and is intended for alignment correction on those specific vehicles.
What It Helps Correct
- Rear wheel camber that is out of specification
- Uneven tire wear caused by rear alignment issues
- Pulling or handling concerns related to rear suspension geometry
- Alignment problems after suspension component replacement
- Need for camber adjustment on listed Chrysler, Dodge, and Mitsubishi rear suspensions
Installation Notes and Tips
Install on the rear suspension only for the vehicles listed in the fitment data. Verify alignment readings before and after installation, and follow the vehicle service procedure for camber adjustment. Confirm bolt hole count, bolt thread diameter, and shim dimensions against the original hardware before installation. Because fitment is application-specific, use 545-515 only on the exact year, make, and model combinations shown below.
- Fits 1995-2005 Chrysler Sebring, rear. Adjusts camber -1.00 degree to +1.00 degree.
- Fits 2001-2005 Dodge Stratus, rear. Adjusts camber -1.00 degree to +1.00 degree.
- Fits 1995-2005 Mitsubishi Eclipse, rear. Adjusts camber -1.00 degree to +1.00 degree.
- Fits 1997-2004 Mitsubishi Diamante, rear. Adjusts camber -1.00 degree to +1.00 degree.
- Fits 1994-2003 Mitsubishi Galant, rear. Adjusts camber -1.00 degree to +1.00 degree.
- Fits 1995-2000 Dodge Avenger, rear. Adjusts camber -1.00 degree to +1.00 degree.
Quality Assurance
Dorman states that this alignment camber kit is precision-engineered and rigorously tested to replace the original parts on specific vehicles. That focus on application-specific replacement helps support consistent fit and alignment service on the listed rear suspension applications.
| Year | Make | Model | Body Type | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2005 | Chrysler | Sebring | Coupe | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 2005 | Dodge | Stratus | Coupe | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 2005 | Mitsubishi | Eclipse | — | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 2004 | Chrysler | Sebring | Coupe | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 2004 | Dodge | Stratus | Coupe | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 2004 | Mitsubishi | Diamante | — | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 2004 | Mitsubishi | Eclipse | — | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 2003 | Chrysler | Sebring | Coupe | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 2003 | Dodge | Stratus | Coupe | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 2003 | Mitsubishi | Diamante | — | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 2003 | Mitsubishi | Eclipse | — | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 2003 | Mitsubishi | Galant | — | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 2002 | Chrysler | Sebring | Coupe | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 2002 | Dodge | Stratus | Coupe | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 2002 | Mitsubishi | Diamante | — | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 2002 | Mitsubishi | Eclipse | — | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 2002 | Mitsubishi | Galant | — | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 2001 | Chrysler | Sebring | Coupe | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 2001 | Dodge | Stratus | Coupe | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 2001 | Mitsubishi | Diamante | — | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 2001 | Mitsubishi | Eclipse | — | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 2001 | Mitsubishi | Galant | — | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 2000 | Chrysler | Sebring | Coupe | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 2000 | Dodge | Avenger | — | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 2000 | Mitsubishi | Diamante | — | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 2000 | Mitsubishi | Eclipse | — | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 2000 | Mitsubishi | Galant | — | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 1999 | Chrysler | Sebring | Coupe | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 1999 | Dodge | Avenger | — | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 1999 | Mitsubishi | Diamante | — | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 1999 | Mitsubishi | Eclipse | — | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 1999 | Mitsubishi | Galant | — | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 1998 | Chrysler | Sebring | Coupe | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 1998 | Dodge | Avenger | — | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 1998 | Eagle | Talon | — | FWD | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 1998 | Mitsubishi | Diamante | — | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 1998 | Mitsubishi | Eclipse | — | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 1998 | Mitsubishi | Galant | — | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 1997 | Chrysler | Sebring | Coupe | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 1997 | Dodge | Avenger | — | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 1997 | Eagle | Talon | — | AWD | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 1997 | Mitsubishi | Diamante | — | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 1997 | Mitsubishi | Eclipse | — | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 1997 | Mitsubishi | Galant | — | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 1996 | Chrysler | Sebring | Coupe | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 1996 | Dodge | Avenger | — | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 1996 | Eagle | Talon | — | FWD | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 1996 | Mitsubishi | Eclipse | — | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 1996 | Mitsubishi | Galant | — | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 1995 | Chrysler | Sebring | Coupe | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 1995 | Dodge | Avenger | — | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 1995 | Eagle | Talon | — | FWD | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 1995 | Mitsubishi | Eclipse | — | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 1995 | Mitsubishi | Galant | — | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
| 1994 | Mitsubishi | Galant | — | — | Rear | Adjusts Camber -1.00 Degree to +1.00 Degree |
