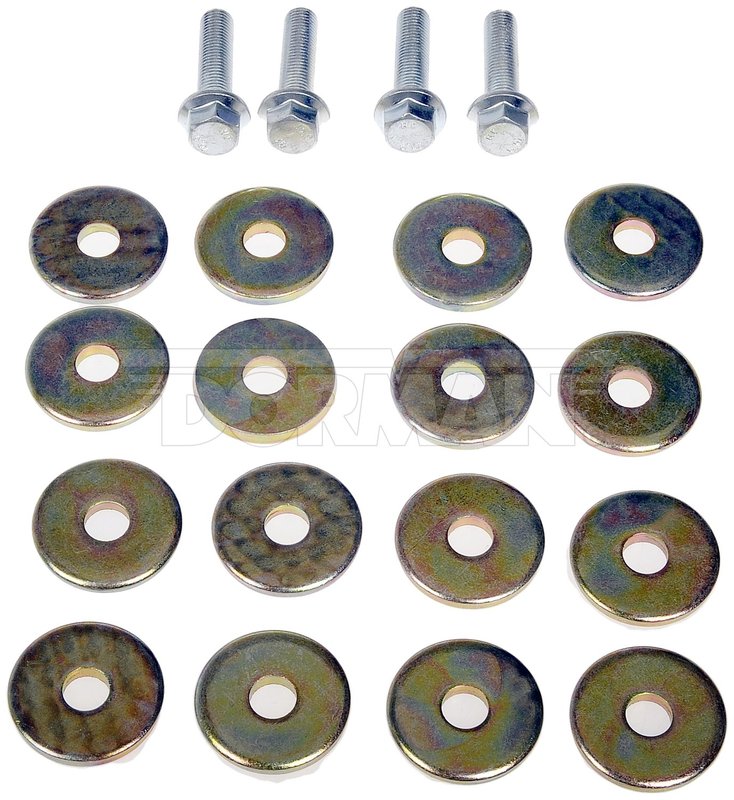

Dorman 545-516 Alignment Camber Kit - Rear Upper

Dorman 545-516 Rear Upper Camber Kit

Dorman 545-516 is an alignment camber kit for rear upper suspension adjustment on select Mitsubishi, Chrysler, and Dodge vehicles. It is precision-engineered and tested as a replacement for the original camber hardware used to correct rear alignment settings on applications such as the Mitsubishi Eclipse, Galant, and Chrysler Sebring.

Key Features

• Rear upper alignment camber kit for suspension correction
• Precision-engineered replacement for original camber components
• Steel shim construction with round shim shape
• Light suspension grade type for the listed applications
• Bolt hole quantity: 4
• Bolt thread diameter: 10 mm with 40 mm bolt length
• Shim size range: 36-39 mm outside diameter, 10-12 mm inside diameter
• Shim thickness range: 4.6-4.8 mm
• Cross-references Monroe Shocks & Struts 172286 for the same application

Detailed Description

This Dorman 545-516 camber kit is built for rear upper alignment service where camber correction is needed on specific Mitsubishi Eclipse, Mitsubishi Galant, Chrysler Cirrus, Chrysler Sebring, Dodge Stratus, Dodge Avenger, and Mitsubishi Diamante models. The kit uses steel round shims and matching hardware dimensions to restore alignment adjustment at the rear upper suspension point. It is a direct-fit style replacement for vehicles that require camber correction during suspension service or after component replacement.

Fits 2000-2012 Mitsubishi Eclipse, Rear Upper. Fits 1990-2012 Mitsubishi Galant, Rear Upper. Fits 1998-2006 Chrysler Cirrus, Rear Upper. Fits 1995-2005 Chrysler Sebring, Rear Upper. Fits 2001-2005 Dodge Stratus, Rear Upper. Fits 1997-2004 Mitsubishi Diamante, Rear Upper. Fits 1995-2000 Dodge Avenger, Rear Upper. Fits 1995-1999 Mitsubishi Eclipse, Rear Upper.

What This Part Helps Address

• Rear camber out of specification after suspension repair
• Uneven tire wear caused by incorrect rear alignment
• Steering pull or handling imbalance related to rear suspension geometry
• Alignment correction needs after worn suspension parts are replaced
• Factory camber adjustment restoration on listed rear upper applications

Installation Notes and Tips

Install this kit at the rear upper suspension alignment point on the listed vehicles. Verify the vehicle’s alignment readings before and after installation, and follow the service procedure for the specific Mitsubishi, Chrysler, or Dodge model. Because the kit is application-specific, confirm rear upper fitment and hardware dimensions before beginning service. For search relevance, this part is commonly referenced for Mitsubishi Eclipse rear upper camber adjustment and Mitsubishi Galant rear upper alignment correction, as well as Chrysler Sebring and Dodge Stratus rear suspension service.

Quality Assurance

Dorman states that this alignment camber kit is precision-engineered and rigorously tested to provide a reliable replacement for the original parts on specific vehicles. Part number 545-516 is built to meet the dimensional requirements of the listed applications and support repeatable alignment service.
