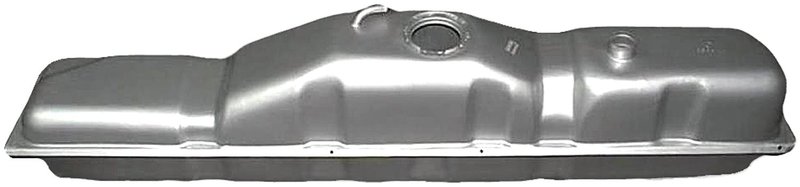

Dorman 576-095 Fuel Tank

Dorman 576-095 Fuel Tank for GM 3500 Series

This Dorman fuel tank is a replacement for specified Chevrolet and GMC heavy-duty trucks, built to match the original tank’s fit and function. It is a steel 22-gallon fuel tank with a gray painted finish and an attached sump for the listed applications.

• Steel construction for fuel storage durability
• 22-gallon capacity
• Gray painted fuel tank coating
• Attached sump included
• Lock ring included
• Replacement for Dorman 576-095

Fitment and Cross-Reference

Compatible with 1998-2000 Chevrolet C3500, N/A, 22 Gallon Tank. Compatible with 1998-2000 Chevrolet K3500, N/A, 22 Gallon Tank. Compatible with 1998-2000 GMC C3500, N/A, 22 Gallon Tank. Compatible with 1998-2000 GMC K3500, N/A, 22 Gallon Tank. This part cross-references Spectra Premium (e.g., GM62C) for the same application.

Product Details

Dorman 576-095 is engineered as a direct replacement fuel tank for the specified Chevrolet C3500, Chevrolet K3500, GMC C3500, and GMC K3500 trucks. The steel tank measures 64 inches long, 11.5 inches wide, and 14 inches high, with a painted gray coating to help match the original-style appearance. The package includes the fuel tank and lock ring; mounting straps, sending unit, and filler neck are not included.

Common Replacement Reasons

• Corrosion or rust in the original tank
• Fuel leaks from a damaged tank shell
• Restricted fuel storage from internal deterioration
• Failed tank sealing at the lock ring area
• Replacement after impact or underbody damage

Installation Notes

Verify vehicle application by year, make, model, and 22-gallon tank configuration before installation. Transfer or source any required components not included with the tank, including the sending unit, filler neck, and mounting straps if needed. Inspect the fuel system, seals, and mounting points for wear before installing the replacement tank.

Quality Assurance

Dorman manufactures replacement parts engineered to match original equipment fit and function on specified vehicles. Part number 576-095 is built for the listed GM heavy-duty truck applications and is intended to restore proper fuel storage performance.
