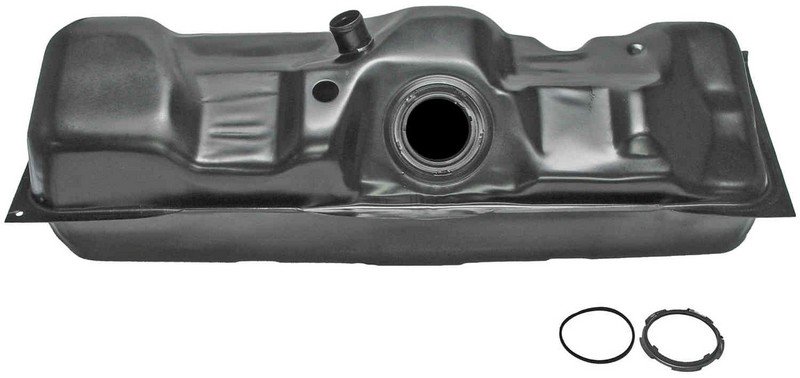

Dorman 576-109 Fuel Tank - Front
| Brand | Dorman 576-109 |
|---|---|
| Attached Sump | No |
| Baffled Sump | No |
| Capacity | 16 |
| Color | Gray |
| Filler Neck Attached | No |
| Fuel Tank Coating | Paint |
| Height | 11 |
| Length | 42.375 |
| Lock Ring Included | Yes |
| Material | Steel |
| Mounting Straps Included | No |
| Package Contents | Fuel Tank ; Lock Ring; O Ring |
| Sending Unit Included | No |
| Width | 14.38 |
| Fits | Ford · 25 vehicles |
OE-style replacement. Precision-engineered to match the fit and function of the original fuel tank.
Steel construction. Durable material with a painted finish for dependable fuel storage.
Lock ring included. Comes with an O-ring for a more complete installation.
Cross-references Spectra Premium F14C and E9TZ9002T for the same application. See all 2.
Replacement Fuel Tank for Ford Trucks
Dorman 576-109 is a steel replacement fuel tank engineered to match the fit and function of the original tank on specified Ford applications. It is built for 16-gallon fuel storage and includes the lock ring and O-ring needed for the tank opening.
- Steel construction with gray painted coating
- 16-gallon capacity
- Lock ring included
- Package contents: fuel tank, lock ring, O-ring
- Dimensions: 42.375 in. long, 14.38 in. wide, 11 in. high
- Cross-reference: this part cross-references E9TZ9002T and Spectra Premium F14C for the same application
Fitment Details
Compatible with Ford F-150, Ford F-250, Ford F-250 HD, and Ford F-350 applications listed below. Fits 1990-1996 Ford F-150, front, 16 gallon tank. Fits 1990-1996 Ford F-250, front, 16 gallon tank. Fits 1990-1998 Ford F-350, front, 16 gallon tank. Fits 1997 Ford F-250 HD, N/A, 16 gallon tank. Fits 1998 Ford F-250, N/A, over 8,500 lb. GVW; 16 gallon tank.
What This Fuel Tank Helps Address
- Rust or corrosion in the original steel tank
- Fuel leaks caused by tank damage or deterioration
- Cracked or weakened tank shells from age and road exposure
- Fuel storage issues on 16-gallon Ford truck applications
- Replacement needs after tank removal or service
Installation Notes
Mounting straps are not included. The sending unit is not included, and the filler neck is not attached. Verify the vehicle’s tank position, capacity, and application notes before installation. Use the included lock ring and O-ring during assembly.
Quality Assurance
Dorman engineers this replacement fuel tank to match original fit and function on the listed vehicles. The steel tank is coated for added surface protection and built for direct replacement use on the specified Ford truck applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1998 | Ford | F-250 | N/A | Over 8,500 Lb. GVW; 16 Gallon Tank |
| 1998 | Ford | F-350 | Front | 16 Gallon Tank |
| 1997 | Ford | F-250 HD | N/A | 16 Gallon Tank |
| 1997 | Ford | F-350 | Front | 16 Gallon Tank |
| 1996 | Ford | F-150 | Front | 16 Gallon Tank |
| 1996 | Ford | F-250 | Front | 16 Gallon Tank |
| 1996 | Ford | F-350 | Front | 16 Gallon Tank |
| 1995 | Ford | F-150 | Front | 16 Gallon Tank |
| 1995 | Ford | F-250 | Front | 16 Gallon Tank |
| 1995 | Ford | F-350 | Front | 16 Gallon Tank |
| 1994 | Ford | F-150 | Front | 16 Gallon Tank |
| 1994 | Ford | F-250 | Front | 16 Gallon Tank |
| 1994 | Ford | F-350 | Front | 16 Gallon Tank |
| 1993 | Ford | F-150 | Front | 16 Gallon Tank |
| 1993 | Ford | F-250 | Front | 16 Gallon Tank |
| 1993 | Ford | F-350 | Front | 16 Gallon Tank |
| 1992 | Ford | F-150 | Front | 16 Gallon Tank |
| 1992 | Ford | F-250 | Front | 16 Gallon Tank |
| 1992 | Ford | F-350 | Front | 16 Gallon Tank |
| 1991 | Ford | F-150 | Front | 16 Gallon Tank |
| 1991 | Ford | F-250 | Front | 16 Gallon Tank |
| 1991 | Ford | F-350 | Front | 16 Gallon Tank |
| 1990 | Ford | F-150 | Front | 16 Gallon Tank |
| 1990 | Ford | F-250 | Front | 16 Gallon Tank |
| 1990 | Ford | F-350 | Front | 16 Gallon Tank |
