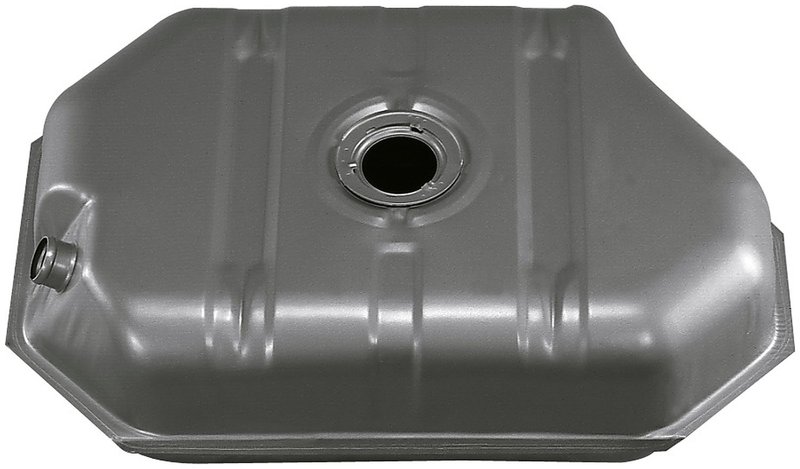

Dorman 576-329 Fuel Tank
| Brand | Dorman 576-329 |
|---|---|
| Material | Steel |
| Capacity | 20 |
| Length | 33 |
| Color | Gray |
| Width | 22 |
| Height | 10.5 |
| Lock Ring Included | Yes |
| Mounting Straps Included | No |
| Sending Unit Included | No |
| Filler Neck Attached | No |
| Fuel Tank Coating | Paint |
| Baffled Sump | Yes |
| Attached Sump | No |
| Package Contents | Fuel tank ; lock ring; o ring |
| Fits | Chevrolet, GMC, and Oldsmobile · 28 vehicles |
OE-style replacement. Precision-engineered to match the fit and function of the original fuel tank.
Steel construction. Built from steel with a painted finish for durable fuel storage.
Baffled sump. Helps control fuel movement inside the tank.
Cross-references Spectra Premium GM18B and 15659269 for the same application. See all 2.
OE-Style Fuel Tank Replacement
This Dorman fuel tank is precision-engineered to match the fit and function of the original tank on specified vehicles. Built from steel with a painted gray finish, it is a direct replacement for applications that need a 20-gallon fuel storage solution, including Chevrolet Blazer, Chevrolet S10 Blazer, GMC Jimmy, GMC S15 Jimmy, and Oldsmobile Bravada models.
Part number 576-329 is built for vehicle-specific fitment and includes the lock ring and O-ring needed for the tank opening. It also features a baffled sump to help manage fuel movement inside the tank.
Key Features
- Steel construction for OE-style fuel tank replacement
- 20-gallon capacity
- Painted gray finish
- Baffled sump included for internal fuel control
- Lock ring included
- Package contents: fuel tank, lock ring, and O-ring
- Dorman 576-329 fuel tank for select GM compact SUV applications
Detailed Product Overview
Dorman 576-329 is a replacement fuel tank engineered to match the original fit and function on specified vehicles. It is designed for 1985-1995 Chevrolet and GMC compact SUV platforms, including Fits 1995 Chevrolet Blazer, N/A; Fits 1992-1995 GMC Jimmy, N/A; Fits 1988-1994 Chevrolet S10 Blazer, N/A; Fits 1991-1994 Oldsmobile Bravada, N/A; Fits 1988-1991 GMC S15 Jimmy, N/A; Fits 1985-1987 Chevrolet S10 Blazer, N/A; and Fits 1985-1987 GMC S15 Jimmy, N/A. This part cross-references Spectra Premium GM18B for the same application.
Common Reasons to Replace
- Rust or corrosion in the original steel tank
- Fuel leaks from a damaged tank shell
- Internal contamination from a deteriorated tank
- Fuel slosh issues related to a worn or damaged internal baffle
- Failed tank sealing at the lock ring or O-ring area
Installation Notes
Verify tank dimensions, filler neck routing, and sender configuration before installation. This tank does not include mounting straps, sending unit, or filler neck attachment. The lock ring and O-ring are included; confirm the sealing surfaces are clean and undamaged before assembly. For best results, compare the original tank and vehicle application details before removal.
Quality Assurance
Dorman manufactures this replacement fuel tank to match original equipment fit and function on the listed vehicles. Part number 576-329 is built for direct replacement use in select Chevrolet, GMC, and Oldsmobile applications.
| Year | Make | Model | # Doors | Notes |
|---|---|---|---|---|
| 1995 | Chevrolet | Blazer | 2 Door | — |
| 1995 | GMC | Jimmy | 2 Door | — |
| 1994 | Chevrolet | S10 Blazer | — | — |
| 1994 | GMC | Jimmy | — | — |
| 1994 | Oldsmobile | Bravada | — | — |
| 1993 | Chevrolet | S10 Blazer | — | — |
| 1993 | GMC | Jimmy | — | — |
| 1993 | GMC | Typhoon | — | — |
| 1993 | Oldsmobile | Bravada | — | — |
| 1992 | Chevrolet | S10 Blazer | — | — |
| 1992 | GMC | Jimmy | — | — |
| 1992 | GMC | Typhoon | — | — |
| 1992 | Oldsmobile | Bravada | — | — |
| 1991 | Chevrolet | S10 Blazer | — | — |
| 1991 | GMC | S15 Jimmy | — | — |
| 1991 | Oldsmobile | Bravada | — | — |
| 1990 | Chevrolet | S10 Blazer | — | — |
| 1990 | GMC | S15 Jimmy | — | — |
| 1989 | Chevrolet | S10 Blazer | — | — |
| 1989 | GMC | S15 Jimmy | — | — |
| 1988 | Chevrolet | S10 Blazer | — | — |
| 1988 | GMC | S15 Jimmy | — | — |
| 1987 | Chevrolet | S10 Blazer | — | 20 Gallon Tank |
| 1987 | GMC | S15 Jimmy | — | 20 Gallon Tank |
| 1986 | Chevrolet | S10 Blazer | — | 20 Gallon Tank |
| 1986 | GMC | S15 Jimmy | — | 20 Gallon Tank |
| 1985 | Chevrolet | S10 Blazer | — | 20 Gallon Tank |
| 1985 | GMC | S15 Jimmy | — | 20 Gallon Tank |
| No rows match your filter. | ||||
