Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

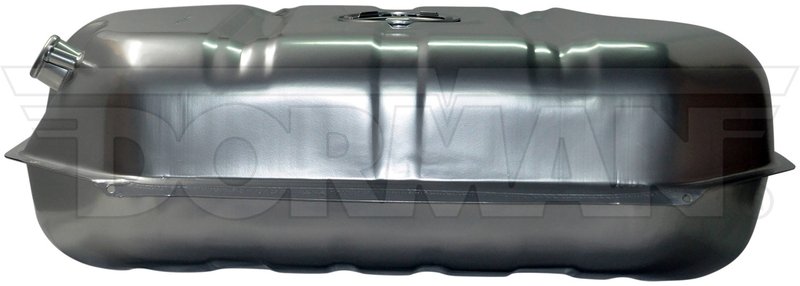

Dorman 576-331 Fuel Tank
| Brand | Dorman 576-331 |
|---|---|
| Attached Sump | No |
| Baffled Sump | No |
| Capacity | 19 |
| Color | Silver |
| Filler Neck Attached | No |
| Fuel Tank Coating | Paint |
| Height | 10.5 |
| Length | 33 |
| Lock Ring Included | Yes |
| Material | Steel |
| Mounting Straps Included | No |
| Package Contents | Fuel Tank ; Lock Ring; O Ring |
| Sending Unit Included | No |
| Width | 22 |
| Fits | Chevrolet and GMC · 14 vehicles |
OE direct replacement. Precision-engineered to match the fit and function of the original fuel tank.
Steel construction. Provides durable fuel storage with a painted finish.
Lock ring included. Comes with an O-ring for a more complete installation.
Cross-references Spectra Premium GM18D and 15725301 for the same application. See all 2.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Dorman 576-331 Fuel Tank for GM SUVs
This Dorman fuel tank is a steel replacement built to match the fit and function of the original tank on specified vehicles. It is a direct-fit option for 1997-2003 Chevrolet Blazer and 1997-2003 GMC Jimmy applications, with the correct 19-gallon capacity and OE-style dimensions.
Key Features
- Steel construction with a silver finish and painted tank coating
- 19-gallon capacity for the specified Chevrolet Blazer and GMC Jimmy applications
- Includes lock ring and O-ring for the fuel tank opening
- Precision-engineered replacement for original tank fit and function
- Dimensions: 33 in. length, 22 in. width, 10.5 in. height
- Cross-references Spectra Premium GM18D and OE part number 15725301
Detailed Description
Dorman 576-331 is a replacement fuel tank for GM compact SUVs that need an OE-style fuel storage solution. It is built from steel and finished in silver with a painted coating to match the original tank layout on the listed vehicles. This fuel tank is specified for 1997-2003 Chevrolet Blazer and 1997-2003 GMC Jimmy models, and it includes the lock ring and O-ring needed at the tank opening. The tank does not include mounting straps, sending unit, or filler neck attachment, so those components must be verified separately during service. This part cross-references Spectra Premium GM18D and OE number 15725301 for the same application.
Common Problems This Part Can Address
- Fuel tank corrosion or rust-through
- Damage from road debris or impact
- Fuel leaks at the tank shell or opening
- Failed inspection due to a compromised tank
- Replacement needs during fuel system restoration on a Chevrolet Blazer or GMC Jimmy
Installation Notes and Tips
Before installation, confirm the vehicle application, tank dimensions, and all connected fuel system components. Transfer or replace the sending unit, mounting straps, and filler neck components as needed, since they are not included. Inspect the lock ring and O-ring sealing surfaces carefully to help ensure a proper seal during reassembly.
Quality Assurance
This Dorman replacement fuel tank is engineered to match the original fit and function on the listed applications. It is a direct replacement option for 1997-2003 Chevrolet Blazer and 1997-2003 GMC Jimmy fuel tank service.
| Year | Make | Model | # Doors | Position | Notes |
|---|---|---|---|---|---|
| 2003 | Chevrolet | Blazer | 2 Door | N/A | — |
| 2003 | GMC | Jimmy | 2 Door | N/A | — |
| 2002 | Chevrolet | Blazer | 2 Door | N/A | — |
| 2002 | GMC | Jimmy | 2 Door | N/A | — |
| 2001 | Chevrolet | Blazer | 2 Door | N/A | — |
| 2001 | GMC | Jimmy | 2 Door | N/A | — |
| 2000 | Chevrolet | Blazer | 2 Door | N/A | — |
| 2000 | GMC | Jimmy | 2 Door | N/A | — |
| 1999 | Chevrolet | Blazer | 2 Door | N/A | — |
| 1999 | GMC | Jimmy | 2 Door | N/A | — |
| 1998 | Chevrolet | Blazer | 2 Door | N/A | — |
| 1998 | GMC | Jimmy | 2 Door | N/A | — |
| 1997 | Chevrolet | Blazer | 2 Door | N/A | — |
| 1997 | GMC | Jimmy | 2 Door | N/A | — |
| No rows match your filter. | |||||
