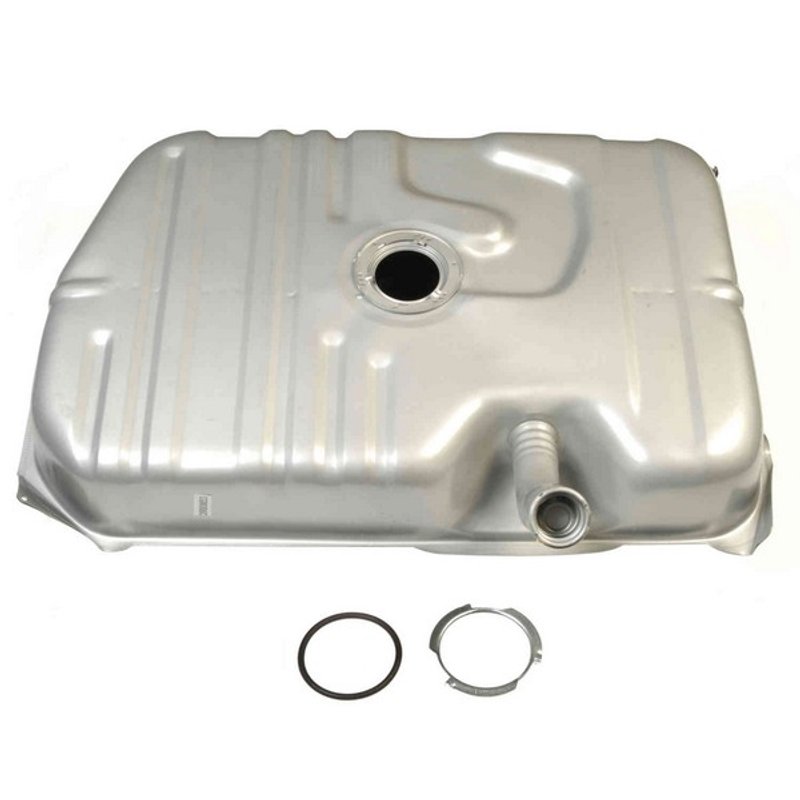

Dorman 576-352 Fuel Tank
| Brand | Dorman 576-352 |
|---|---|
| Material | Steel |
| Capacity | 17 |
| Length | 36.25 |
| Color | Gray |
| Width | 24.25 |
| Height | 8.88 |
| Lock Ring Included | Yes |
| Filler Neck Length | 13.4 |
| Mounting Straps Included | No |
| Sending Unit Included | No |
| Filler Neck Attached | Yes |
| Fuel Tank Coating | Paint |
| Baffled Sump | No |
| Attached Sump | No |
| Package Contents | Fuel tank ; lock ring; o ring |
| Fits | Chevrolet and Pontiac · 7 vehicles |
OE-style replacement. Precision-engineered to match original fit and function on listed applications.
Steel construction. Built with a painted finish for fuel storage service.
Attached filler neck. Configured for applications that use an integrated neck design.
Cross-references Spectra Premium GM306C and 22510720 for the same application. See all 2.
Fuel Tank Replacement
This Dorman fuel tank is built to match the fit and function of the original tank on specified applications. It is a steel replacement with a painted finish, attached filler neck, and included lock ring for a direct service replacement.
Key Features
- Steel construction for fuel storage durability
- 17-gallon capacity
- Attached filler neck measures 13.4 inches
- Paint-coated gray finish
- Lock ring and O-ring included
Detailed Description
Part number 576-352 is a replacement fuel tank engineered for vehicles that use the original tank layout with an attached filler neck. The tank measures 36.25 inches long, 24.25 inches wide, and 8.88 inches high, with a steel body and painted coating for service replacement use. Part number 576-352 is listed for Fits 1985-1988 Chevrolet Monte Carlo, N/A; Fits 1986-1987 Pontiac Grand Prix, N/A; and Fits 1986 Pontiac Bonneville, N/A, all with filler neck. This part cross-references Spectra Premium GM306C for the same application.
What It Helps Resolve
- Corrosion or damage in the original fuel tank
- Fuel storage issues caused by a leaking tank shell
- Fitment problems when the replacement tank must retain an attached filler neck
- Service needs where the sending unit is reused separately
Installation Notes
Mounting straps are not included. The sending unit is not included. Verify the vehicle uses the listed filler-neck configuration before installation and transfer any required service components from the original system as needed.
Quality Assurance
Dorman manufactures this replacement tank to match original fit and function on the listed applications.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 1988 | Chevrolet | Monte Carlo | 4.3L | V6 | w/Filler Neck |
| 1987 | Chevrolet | Monte Carlo | 4.3L | V6 | w/Filler Neck |
| 1987 | Pontiac | Grand Prix | 4.3L | V6 | w/Filler Neck |
| 1986 | Chevrolet | Monte Carlo | 4.3L | V6 | w/Filler Neck |
| 1986 | Pontiac | Bonneville | 4.3L | V6 | w/Filler Neck |
| 1986 | Pontiac | Grand Prix | 4.3L | V6 | w/Filler Neck |
| 1985 | Chevrolet | Monte Carlo | 4.3L | V6 | w/Filler Neck |
