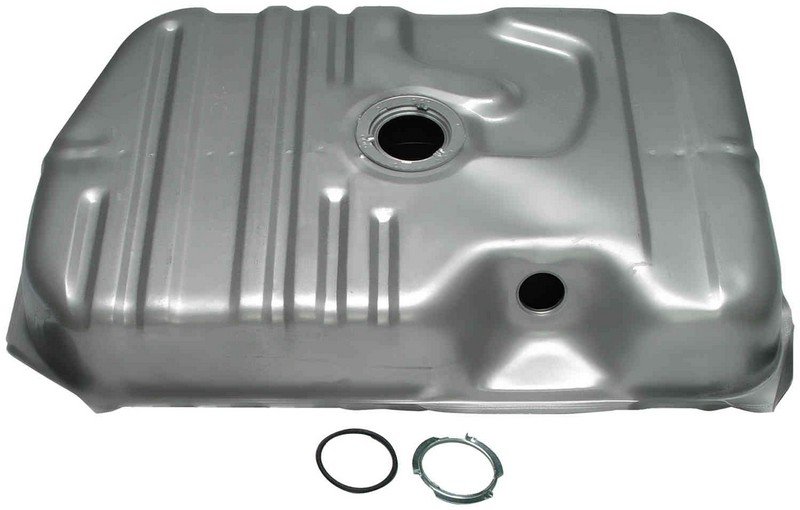

Dorman 576-364 Fuel Tank
| Brand | Dorman 576-364 |
|---|---|
| Material | Steel |
| Capacity | 17 |
| Length | 36.25 |
| Color | Gray |
| Width | 24.25 |
| Height | 8.88 |
| Lock Ring Included | Yes |
| Mounting Straps Included | No |
| Sending Unit Included | No |
| Filler Neck Attached | No |
| Fuel Tank Coating | Paint |
| Baffled Sump | Yes |
| Attached Sump | No |
| Package Contents | Fuel tank ; lock ring; o ring |
| Fits | Buick, Chevrolet, and Pontiac · 11 vehicles |
OE-style replacement. Precision-engineered to match original fuel tank fit and function.
Steel construction. Paint-coated for added protection and a clean gray finish.
Baffled sump. Helps control fuel movement inside the tank.
Cross-references Spectra Premium GM3C and 22523080 for the same application. See all 2.
Replacement Fuel Tank for GM Applications
This Dorman fuel tank is a direct replacement for specified Chevrolet, Buick, and Pontiac vehicles. Built from steel with a 17-gallon capacity, it is engineered to match the original tank’s fit and function for a proper service replacement.
Key Features
- Steel construction with gray painted coating
- 17-gallon fuel capacity
- Baffled sump included for fuel control
- Lock ring included
- Package contents: fuel tank, lock ring, and O-ring
- Part number 576-364 for easy identification
Detailed Description
Dorman 576-364 is a replacement fuel tank designed for vehicles that require a tank without a filler neck attached. It measures 36.25 inches long, 24.25 inches wide, and 8.88 inches high, and it is built to match the original tank’s fit and function on the listed applications. This fuel tank is compatible with 1985-1988 Chevrolet Monte Carlo, 1984-1987 Buick Regal, 1986-1987 Pontiac Grand Prix, and 1986 Pontiac Bonneville. The steel body, painted finish, and baffled sump support dependable fuel storage in the original mounting location.
This part cross-references Spectra Premium GM3C for the same application.
Common Problems This Part Can Address
- Fuel tank corrosion or rust-through
- Leaks from a damaged or deteriorated tank
- Fuel slosh issues related to a worn internal sump design
- Replacement needs after tank damage from road debris or impact
- Service replacement for a tank that no longer seals correctly
Installation Notes and Tips
- Compatible With 1985-1988 Chevrolet Monte Carlo, wo/Filler Neck.
- Compatible With 1984-1987 Buick Regal, wo/Filler Neck.
- Compatible With 1986-1987 Pontiac Grand Prix, wo/Filler Neck.
- Compatible With 1986 Pontiac Bonneville, wo/Filler Neck.
- Mounting straps are not included, and the sending unit is not included.
- Filler neck is not attached, so verify the vehicle’s fuel system layout before installation.
- Confirm the lock ring and O-ring are properly seated during assembly.
Quality Assurance
Dorman manufactures this replacement fuel tank to match original equipment fit and function for the specified vehicles. Part number 576-364 is built as a service replacement for GM applications where the original tank configuration calls for a tank without an attached filler neck.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 1988 | Chevrolet | Monte Carlo | 4.3L | V6 | wo/Filler Neck |
| 1987 | Buick | Regal | — | — | wo/Filler Neck |
| 1987 | Chevrolet | Monte Carlo | 4.3L | V6 | wo/Filler Neck |
| 1987 | Pontiac | Grand Prix | 4.3L | V6 | wo/Filler Neck |
| 1986 | Buick | Regal | — | — | wo/Filler Neck |
| 1986 | Chevrolet | Monte Carlo | 4.3L | V6 | wo/Filler Neck |
| 1986 | Pontiac | Bonneville | 4.3L | V6 | wo/Filler Neck |
| 1986 | Pontiac | Grand Prix | 4.3L | V6 | wo/Filler Neck |
| 1985 | Buick | Regal | — | — | wo/Filler Neck |
| 1985 | Chevrolet | Monte Carlo | 4.3L | V6 | wo/Filler Neck |
| 1984 | Buick | Regal | — | — | wo/Filler Neck |
