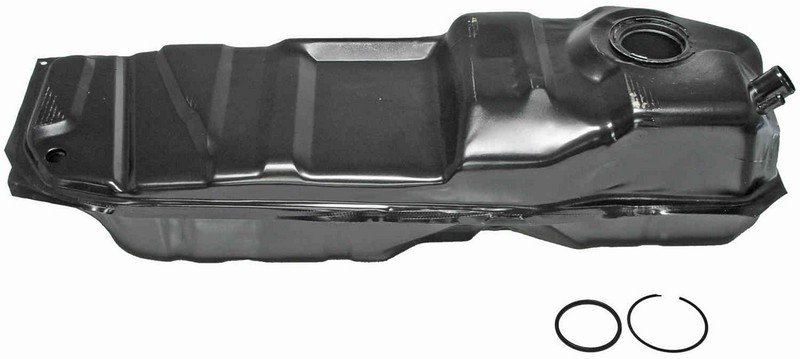

Dorman 576-385 Fuel Tank
| Brand | Dorman 576-385 |
|---|---|
| Material | Steel |
| Capacity | 18 |
| Length | 48 |
| Color | Gray |
| Width | 15 |
| Height | 11.25 |
| Lock Ring Included | Yes |
| Mounting Straps Included | No |
| Sending Unit Included | No |
| Filler Neck Attached | No |
| Fuel Tank Coating | Paint |
| Baffled Sump | Yes |
| Attached Sump | No |
| Package Contents | Fuel tank ; lock ring; o ring |
| Fits | Chevrolet, GMC, and Oldsmobile · 3 vehicles |
OE direct replacement. Precision-engineered to match original fuel tank fit and function.
Steel construction. Paint-coated for durable fuel storage and a clean gray finish.
Baffled sump. Helps control fuel movement inside the tank.
Cross-references Spectra Premium GM56B and 15721551 for the same application. See all 2.
Replacement Fuel Tank for 1996 GM SUVs
This Dorman fuel tank is a steel replacement for the original tank on select 1996 Chevrolet Blazer, GMC Jimmy, and Oldsmobile Bravada models. Dorman 576-385 is built to match the fit and function of the OE tank, with the details needed for a direct replacement on the listed vehicles.
Key Features
- Steel construction for fuel storage applications
- 18-gallon capacity
- Gray painted fuel tank coating
- Baffled sump included for fuel control
- Lock ring included
- Package contents: fuel tank, lock ring, and O-ring
Detailed Description
Dorman 576-385 is a replacement fuel tank engineered for the 1996 Chevrolet Blazer, 1996 GMC Jimmy, and 1996 Oldsmobile Bravada. It is shaped to match the original tank dimensions and mounting layout, with a steel body measuring 48 inches long, 15 inches wide, and 11.25 inches high. The tank includes a baffled sump and a painted coating to support fuel storage service on the specified applications. This part cross-references GM 15721551 and Spectra Premium GM56B for the same application.
What This Fuel Tank Helps Address
- Rusted or corroded original fuel tank replacement
- Fuel leaks caused by tank damage or deterioration
- Poor fuel storage performance from a worn OE tank
- Fitment issues when replacing the factory tank on 1996 Chevrolet Blazer, GMC Jimmy, or Oldsmobile Bravada
- Service needs related to a damaged or missing tank lock ring
Installation Notes and Tips
Compatible With 1996 Chevrolet Blazer, 1996 GMC Jimmy, and 1996 Oldsmobile Bravada. Mounting straps, sending unit, and filler neck are not included, so reuse or source the correct vehicle-specific components as needed. Verify the tank dimensions, lock ring style, and fuel system connections before installation. Dorman 576-385 is intended for direct replacement use on the listed vehicles.
Quality Assurance
Dorman designs replacement fuel system components to match original fit and function on specified vehicles. This fuel tank is built for the listed 1996 GM applications and follows OE-style replacement standards for the platform.
| Year | Make | Model | # Doors | Notes |
|---|---|---|---|---|
| 1996 | Chevrolet | Blazer | 4 Door | — |
| 1996 | GMC | Jimmy | 4 Door | — |
| 1996 | Oldsmobile | Bravada | — | — |
