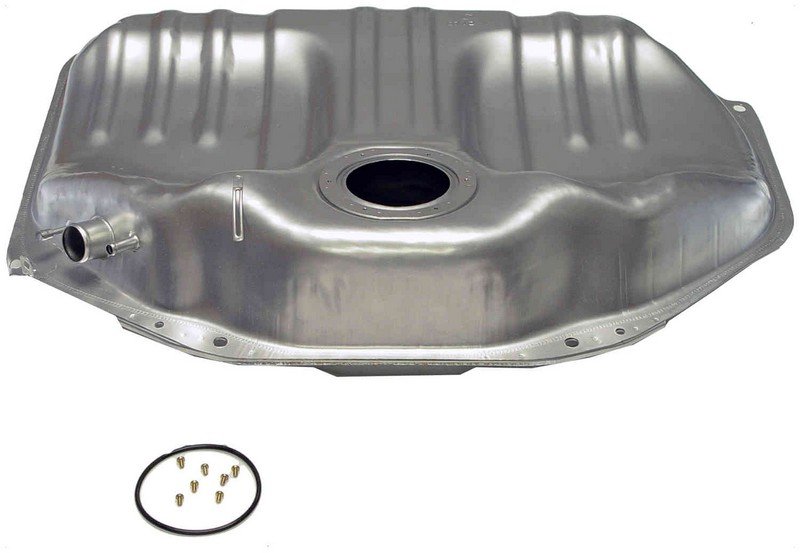

Dorman 576-816 Fuel Tank
| Brand | Dorman 576-816 |
|---|---|
| Material | Steel |
| Capacity | 13 |
| Length | 35.25 |
| Color | Gray |
| Width | 25.38 |
| Height | 8.63 |
| Lock Ring Included | Yes |
| Mounting Straps Included | No |
| Sending Unit Included | No |
| Filler Neck Attached | No |
| Fuel Tank Coating | Paint |
| Baffled Sump | Yes |
| Attached Sump | No |
| Package Contents | Fuel tank ; lock ring; o ring |
| Fits | Nissan · 12 vehicles |
OE-style replacement. Precision-engineered to match the original fuel tank's fit and function.
Steel construction. Durable material with a painted coating for added protection.
Baffled sump. Helps control fuel movement inside the tank.
Cross-references Spectra Premium NS9B and 1720261A10 for the same application. See all 2.
Fuel Tank for Nissan Pulsar NX and Sentra
This Dorman fuel tank is a steel replacement for specified Nissan applications, built to match the fit and function of the original tank. It is engineered for 1987-1990 Nissan Pulsar NX and 1987-1990 Nissan Sentra models, with OE-style dimensions and included lock ring, O-ring, and tank coating.
- Brand: Dorman
- Part number: 576-816
- Steel construction with gray painted finish
- 13-gallon capacity
- Baffled sump design
- Lock ring included
- Package contents: fuel tank, lock ring, O-ring
- Compatible with 1987-1990 Nissan Pulsar NX and 1987-1990 Nissan Sentra
OE-Style Replacement Construction
Dorman 576-816 is a direct replacement fuel tank for select Nissan Pulsar NX and Nissan Sentra vehicles. The steel body, painted coating, and baffled sump are specified to mirror the original tank’s fit and function, while the 13-gallon capacity supports the factory fuel storage layout. This part cross-references Spectra Premium NS9B for the same application.
Common Reasons to Replace
- Rust or corrosion in the original fuel tank
- Fuel leaks from a damaged tank shell
- Internal contamination from a deteriorated tank
- Fuel delivery issues related to a compromised baffled sump
- Failed sealing at the tank opening or lock ring area
Installation Notes and Tips
Verify vehicle fitment before installation: Fits 1987-1990 Nissan Pulsar NX, N/A and Fits 1987-1990 Nissan Sentra, N/A. Mounting straps, sending unit, and filler neck are not included, so transfer or source those components as needed for the vehicle. Confirm all sealing surfaces are clean before installing the included lock ring and O-ring. The part number 576-816 should be matched to the vehicle’s original tank configuration before assembly.
Quality Assurance
Dorman manufactures this replacement tank as an OE-style service part for specified Nissan applications. The design focuses on matching original fit and function for the listed vehicles, with materials and included sealing components selected for service replacement use.
| Year | Make | Model | Drive Type | Notes |
|---|---|---|---|---|
| 1990 | Nissan | Pulsar NX | — | — |
| 1990 | Nissan | Sentra | FWD | — |
| 1990 | Nissan | Tsuru | — | — |
| 1989 | Nissan | Pulsar NX | — | — |
| 1989 | Nissan | Sentra | FWD | — |
| 1989 | Nissan | Tsuru | — | — |
| 1988 | Nissan | Pulsar NX | — | — |
| 1988 | Nissan | Sentra | FWD | — |
| 1988 | Nissan | Tsuru | — | — |
| 1987 | Nissan | Pulsar NX | — | — |
| 1987 | Nissan | Sentra | FWD | — |
| 1987 | Nissan | Tsuru | — | w/Electronic Fuel Control |
| No rows match your filter. | ||||
