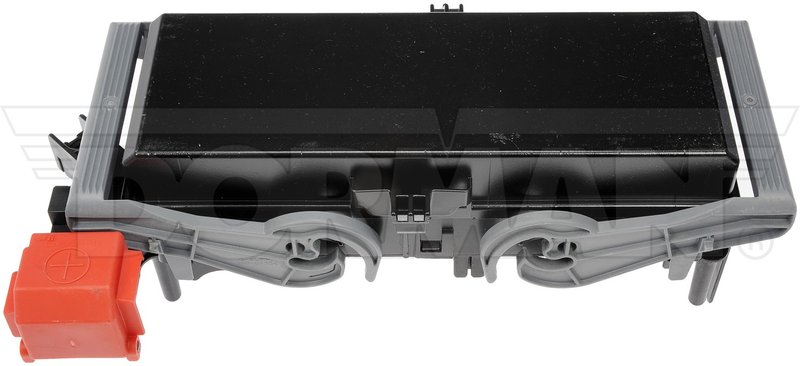

Dorman 598-714 Integrated Control Module

Overview of Dorman Integrated Control Module 598-714

The Dorman Integrated Control Module 598-714 is designed specifically for Dodge Journey models, providing reliable electrical control without the need for programming. This front power distribution center features a durable plastic housing and multiple connectors to ensure seamless integration with your vehicle's electrical system.

• Length: 10.5 inches
• Width: 6 inches
• Height: 4.25 inches
• Connector Color: Black
• Connector Quantity: 4 rectangular female connectors
• Terminal Type: Blade pin with 108 male terminals
• Housing Material: Plastic
• Mounting Hardware: Not required
• Programming Required: No
• Wire Harness Included: No
• Package Contents: 1 front power distribution center

Detailed Product Description

The Dorman 598-714 Integrated Control Module is engineered to meet the electrical demands of the Dodge Journey. Its compact dimensions (10.5" length, 6" width, and 4.25" height) allow for easy installation in the vehicle's front power distribution area. The module includes four black rectangular female connectors, each equipped with blade pin terminals totaling 108 male terminals, ensuring secure and efficient electrical connections. The plastic housing provides durability and protection against environmental factors, while the design eliminates the need for additional mounting hardware or programming, simplifying replacement and maintenance.

Common Applications and Issues Addressed

• Replacement for faulty or damaged front power distribution centers in Dodge Journey vehicles
• Resolves electrical control failures affecting lighting and body control modules
• Addresses connector corrosion or terminal damage issues
• Eliminates intermittent electrical faults caused by worn integrated control modules
• Restores proper function to multiple electrical circuits managed by the control module

Installation Notes and Tips

• No programming is required, allowing for straightforward plug-and-play installation
• Ensure all four connectors are securely attached to avoid electrical faults
• Verify compatibility with Dodge Journey model year before installation
• Handle the module carefully to prevent damage to blade pin terminals
• Check the vehicle’s electrical system for any underlying issues before replacement

Quality Assurance and Warranty

Dorman Integrated Control Module 598-714 is manufactured to meet OEM specifications for fit, form, and function. The module undergoes rigorous quality control to ensure reliable performance in Dodge Journey vehicles. While specific warranty details may vary, Dorman typically offers a limited warranty covering defects in materials and workmanship. Refer to the product documentation for exact warranty terms.
