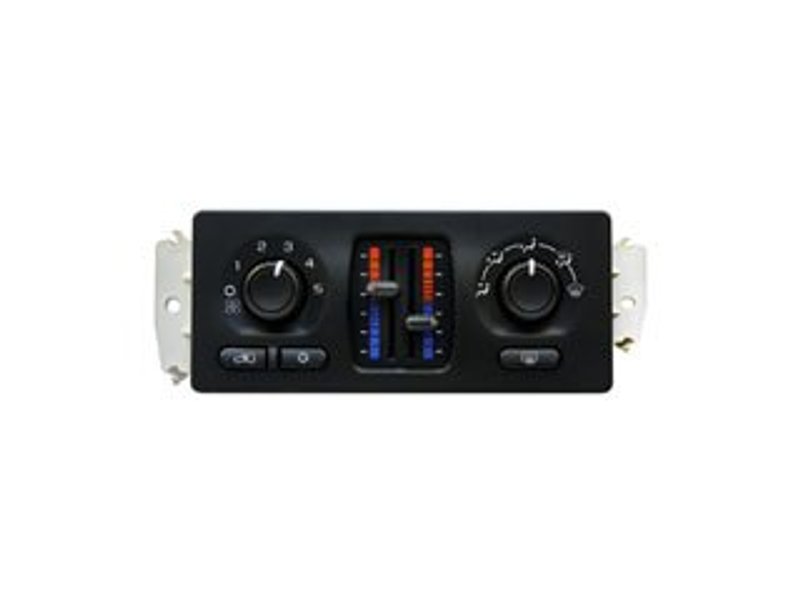

Dorman 599-025 HVAC Control Module - Front or Rear

Overview of Dorman HVAC Control Module 599-025

The Dorman HVAC Control Module 599-025 is designed for reliable climate control operation in select Chevrolet, GMC, and Oldsmobile vehicles. This bolt-on module requires no programming, making it a straightforward replacement for the HVAC system in models like the Chevrolet Trailblazer and GMC Envoy.

• No programming required for easy installation
• 16-pin male terminals with 26 total pins for secure connections
• Female connector gender for compatibility with factory wiring harnesses
• Bolt-on mounting type with black housing for durability
• Compatible with Chevrolet Bravada, GMC Envoy, Envoy XL, Trailblazer, and Trailblazer EXT

Technical Details and Features

This HVAC control module features a 16-terminal pin configuration with male terminals and a female connector, ensuring proper electrical interfacing with your vehicle’s HVAC system. The black housing is designed for durability and heat resistance, while the bolt-on mounting type allows for secure installation without additional hardware. The module does not support automatic temperature control, aligning with the original equipment specifications for the compatible vehicle models. No instruction manual or mounting hardware is included, so professional installation or reference to factory service manuals is recommended.

Compatible Vehicles and Applications

The Dorman 599-025 HVAC Control Module is compatible with the following vehicles:

• Chevrolet Bravada
• GMC Envoy and Envoy XL
• Chevrolet Trailblazer and Trailblazer EXT
• Oldsmobile models within the same platform

This module is intended for use in HVAC systems that require a direct replacement without programming, maintaining factory functionality.

Common HVAC Issues Addressed

• Intermittent or non-responsive climate control functions
• Failure of HVAC controls to adjust fan speed or temperature
• Loss of electrical connection due to damaged terminals
• Inoperative blower motor control
• Erratic or inconsistent HVAC system behavior

Installation Notes and Tips

• Ensure vehicle battery is disconnected before installation to prevent electrical shorts
• Verify connector pin alignment and secure fit to avoid loose connections
• Use factory service manual for detailed removal and installation procedures
• No programming is required, but confirm compatibility with vehicle model and year
• Inspect wiring harness and connectors for damage prior to installation

Quality Assurance and Warranty

Dorman HVAC Control Module 599-025 is manufactured to meet or exceed OEM specifications for fit and function. While no specific warranty details are provided, Dorman products typically come with a limited warranty covering defects in materials and workmanship. For exact warranty terms, consult the product documentation or manufacturer resources.
