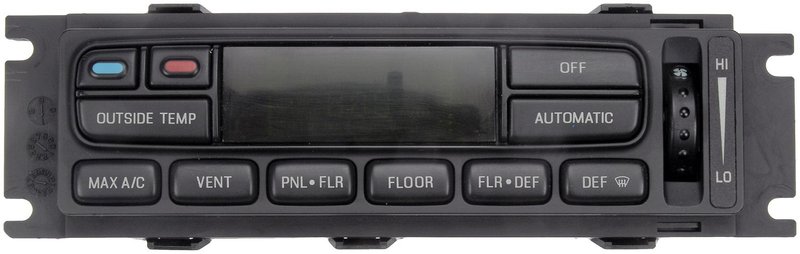

Dorman 599-035 HVAC Control Module

Overview of Dorman HVAC Control Module 599-035

The Dorman HVAC Control Module 599-035 is designed specifically for Ford F-150 models, providing reliable automatic temperature control without the need for programming. This bolt-on module features a black housing and a pin-type terminal connection, ensuring straightforward installation and compatibility.

• No programming required for easy replacement
• Compatible with Ford F-150 HVAC systems
• 26 male terminals with 12 pins and female connector
• Bolt-on mounting type with no additional hardware included
• Automatic temperature control functionality integrated

Technical Details and Features

This HVAC control module from Dorman is engineered to meet the specific electrical and mechanical requirements of the Ford F-150. It includes 26 male terminals arranged in a pin-type configuration with a 12-pin count, paired with a female connector for secure and precise connections. The black housing is designed for durability and fits directly onto the HVAC system using a bolt-on mounting method. The module supports automatic temperature control, allowing the vehicle’s climate system to maintain desired cabin temperatures efficiently. No programming or instruction manual is required, simplifying the replacement process.

Compatible Vehicles and Applications

This Dorman HVAC Control Module 599-035 is compatible with Ford F-150 trucks, making it a suitable replacement part for HVAC control issues in these models. It is intended for use in HVAC systems requiring a control module with the specified terminal and mounting configurations.

• Resolves HVAC control failures causing inconsistent temperature regulation
• Addresses issues with automatic temperature control malfunctions
• Fixes problems related to faulty electrical connections in the HVAC system
• Replaces damaged or non-responsive HVAC control modules in Ford F-150

Installation Notes and Tips

Installation of the Dorman 599-035 HVAC Control Module is straightforward due to its bolt-on mounting design and pin-type terminals. Since no programming is required, the module can be installed directly without additional setup. Ensure the vehicle’s battery is disconnected before installation to prevent electrical shorts. Verify terminal connections match the original module to avoid wiring errors. Mounting hardware is not included, so retain original bolts or source compatible fasteners.

Quality Assurance and Warranty

Dorman manufactures this HVAC control module to meet OEM standards for fit and function in Ford F-150 vehicles. While no specific warranty details are provided here, Dorman parts typically come with a limited warranty covering defects in materials and workmanship. Confirm warranty terms with the supplier or manufacturer documentation.
