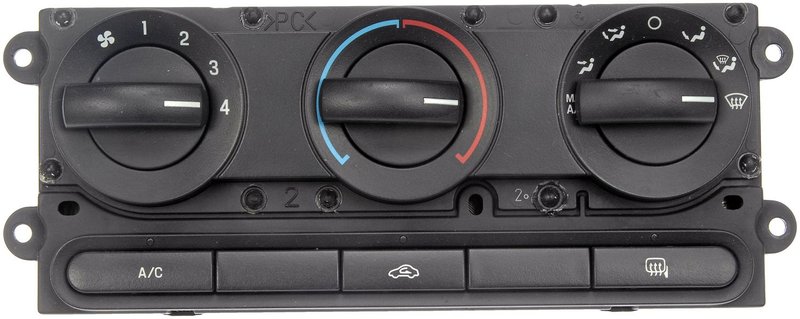

Dorman 599-171 HVAC Control Module
| Brand | Dorman 599-171 |
|---|---|
| Automatic Temperature Control | No |
| Connector Gender | Female |
| Housing Color | Black |
| Instruction Manual Included | No |
| Mounting Hardware Included | No |
| Mounting Type | Bolt On |
| Package Contents | 1 HVAC Control Module |
| Pin Count | 20; 16 |
| Programming Required | No |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Quantity | 26 |
| Terminal Type | Pin |
| Fits | Ford · 4 vehicles |
Direct replacement. Seamlessly restores HVAC control operation with a bolt-on fit.
Fully tested. Each replacement unit is verified before it leaves the factory.
Bolt-on installation. No programming required for a straightforward swap.
Cross-references 4L3419980BG for the same application. See all 1.
Dorman 599-171 HVAC Control Module
Restore manual climate control operation with this Dorman HVAC Control Module for select Ford trucks. Built as a fully tested replacement unit, it addresses failed dash climate controls without requiring programming.
Key Features
- Direct replacement HVAC control module for manual air conditioning systems
- No programming required for installation
- Black housing with bolt-on mounting type
- Female connector design with male terminals
- Pin-style terminals with 20/16 pin counts
- Fully tested replacement unit
- Part number 599-171
Detailed Description
Dorman 599-171 is an HVAC control module replacement for select 2004-2005 Ford F-150 and 2004 Ford F-150 Heritage models with manual air conditioning controls. It is also listed for applications with heated mirrors, with or without rear window defogger, and for 2005 Ford F-150 builds through 11/28/04. This module is a practical OE-style solution when the original climate control unit no longer responds correctly. This part cross-references Audi/VW (e.g., 4L3419980BG) for the same application.
What It Helps Fix
- Nonworking fan speed or temperature control functions
- Intermittent or dead HVAC panel operation
- Failed manual air conditioning control response
- Climate control issues caused by a damaged original module
- Restoration needs for a Ford F-150 HVAC control module replacement
Installation Notes and Tips
Compatible With 2004 Ford F-150, N/A; 2005 Ford F-150, N/A; and 2004 Ford F-150 Heritage, N/A, using manual air conditioning controls. Verify connector style, pin count, and vehicle equipment before installation. No programming is required, and no instruction manual is included.
Quality Assurance
This Dorman replacement module is fully tested before release to support reliable operation in the specified Ford F-150 and Ford F-150 Heritage applications. Use the listed fitment details to confirm the correct configuration before replacing the original HVAC control module.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2005 | Ford | F-150 | N/A | w/Manual Air Conditioning Controls; To 11/28/04; wo/Rear Window Defogger; w/Heated Mirrors; Remanufactured |
| 2004 | Ford | F-150 | N/A | w/Manual Air Conditioning Controls; wo/Rear Window Defogger; w/Heated Mirrors; Remanufactured |
| 2004 | Ford | F-150 Heritage | N/A | w/Manual Air Conditioning Controls; w/Rear Window Defogger; Remanufactured |
| 2004 | Ford | F-150 Heritage | N/A | w/Manual Air Conditioning Controls; wo/Rear Window Defogger; Power Mirror; w/Heated Mirrors; Remanufactured |
