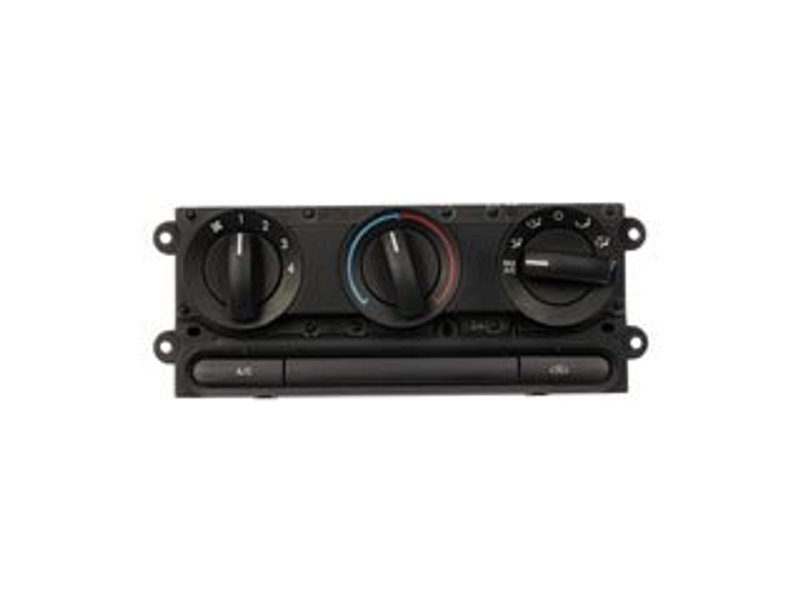

Dorman 599-172 HVAC Control Module

Overview of Dorman HVAC Control Module 599-172

The Dorman HVAC Control Module 599-172 is designed specifically for Ford F-150 models, providing reliable climate control functionality without the need for programming. This bolt-on module features a black housing and is engineered to integrate seamlessly with your vehicle's existing HVAC system.

• No programming required for straightforward installation
• Pin terminal type with 26 male terminals and 2 female connectors
• Connector quantity: 2 with a combined pin count of 36 (20 and 16 pins)
• Bolt-on mounting type for secure attachment
• Compatible with Ford F-150 HVAC systems

Technical Details and Specifications

The Dorman 599-172 HVAC Control Module is built with a black housing and features pin-type terminals designed for durability and reliable electrical connections. It includes 26 male terminals and 2 female connectors, with a total pin count of 36 distributed as 20 and 16 pins respectively. The module mounts securely using bolts, ensuring a stable fit within the HVAC system. This part does not require programming or an instruction manual, simplifying the replacement process for technicians and vehicle owners alike. Note that mounting hardware is not included.

Compatible Vehicles and Application

This HVAC control module is compatible with Ford F-150 trucks, providing a direct replacement for the original module. It is intended for use in HVAC systems that do not feature automatic temperature control. The Dorman 599-172 module is suitable for those seeking a reliable replacement part to restore proper climate control functionality in their Ford F-150.

• Resolves HVAC control failures causing inconsistent temperature regulation
• Addresses issues with unresponsive or malfunctioning HVAC controls
• Fixes problems related to faulty terminal connections within the HVAC system
• Eliminates the need for programming during installation
• Restores proper operation of the HVAC control interface

Installation Notes and Tips

Installation of the Dorman 599-172 HVAC Control Module is straightforward due to its bolt-on mounting design and lack of programming requirements. Ensure the vehicle's battery is disconnected before beginning installation to prevent electrical shorts. Verify connector orientation and terminal alignment carefully to avoid damage. Since mounting hardware is not included, retain original bolts or source compatible fasteners. This module is designed for professional installation or experienced DIY technicians familiar with Ford F-150 HVAC systems.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM standards, ensuring dependable performance and fitment. The 599-172 HVAC Control Module undergoes rigorous quality control testing to maintain reliability. While specific warranty details are not provided here, Dorman typically offers limited warranties on their replacement parts. Consult product documentation or the supplier for exact warranty terms related to this HVAC control module.
