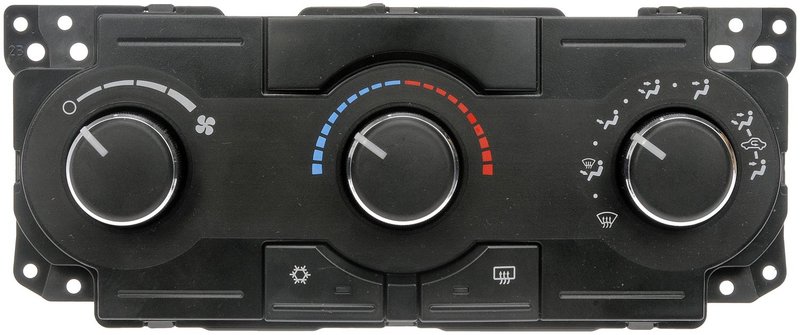

Dorman 599-196 HVAC Control Module

Overview of Dorman HVAC Control Module 599-196

The Dorman HVAC Control Module 599-196 is designed for select Chrysler and Dodge vehicles, including the 300, Charger, and Magnum models. This bolt-on control module requires no programming, making it a straightforward replacement for your vehicle's HVAC system.

• No programming required for easy installation
• Compatible with Chrysler 300, Dodge Charger, and Dodge Magnum
• Black housing with bolt-on mounting type
• Two female connectors with a total of 17 male terminals
• Pin-type terminals for reliable electrical connections

Detailed Product Description

The Dorman 599-196 HVAC Control Module is engineered to replace the original control unit in your Chrysler or Dodge vehicle's heating, ventilation, and air conditioning system. Featuring a black housing and a bolt-on mounting design, this module ensures a secure fit without the need for additional mounting hardware. It includes two female connectors with a combined total of 17 male terminals, utilizing pin-type terminals to maintain consistent electrical contact. This module does not support automatic temperature control and comes without an instruction manual, reflecting its straightforward plug-and-play design.

Common Applications and Issues Resolved

• Restores HVAC system control in Chrysler 300, Dodge Charger, and Magnum models
• Resolves unresponsive or malfunctioning HVAC control panels
• Fixes issues related to faulty electrical connections within the HVAC system
• Addresses problems with inconsistent heating or cooling functions
• Eliminates errors caused by damaged or worn control modules

Installation Notes and Tips

• No programming is required, simplifying the replacement process
• Ensure the vehicle's battery is disconnected before installation to prevent electrical shorts
• Verify connector orientation and terminal alignment before securing the module
• Use appropriate tools for bolt-on mounting to avoid damage to the housing
• Consult vehicle-specific service manuals for detailed HVAC system procedures

Quality Assurance and Warranty

Dorman HVAC Control Module 599-196 is manufactured to meet or exceed OEM standards for fit and function. While no instruction manual or mounting hardware is included, the module's design supports reliable performance in compatible Chrysler and Dodge vehicles. Please refer to Dorman's official warranty policy for coverage details.
