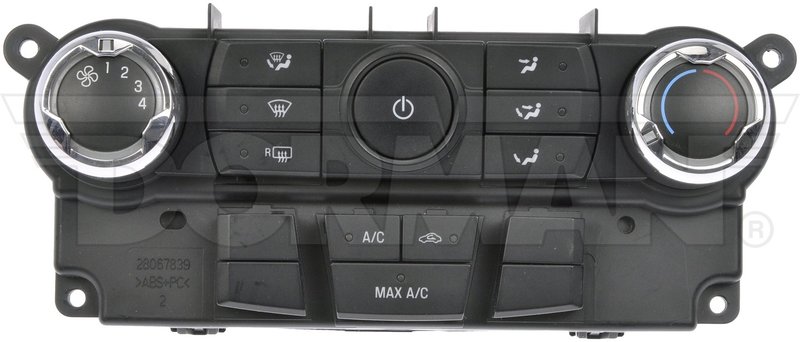

Dorman 599-228 HVAC Control Module
| Brand | Dorman 599-228 |
|---|---|
| Automatic Temperature Control | Yes |
| Connector Gender | Female |
| Connector Quantity | 2 |
| Housing Color | Black |
| Instruction Manual Included | No |
| Mounting Hardware Included | No |
| Mounting Type | Bolt On |
| Package Contents | 1 HVAC Control Module |
| Programming Required | No |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Quantity | 26 |
| Terminal Type | Pin |
| Fits | Ford, Lincoln, and Mercury · 8 vehicles |
Bolt-on replacement. Swaps in easily for a malfunctioning HVAC control module.
Fully tested unit. Each module is verified before it leaves the factory.
Automatic temperature control. Supports climate control systems with automatic regulation.
Cross-references 9E5H19980AN and CCM 5 for the same application. See all 2.
HVAC Control Module for Ford, Lincoln, and Mercury
Restore climate control operation with this Dorman HVAC Control Module, part number 599-228. It is a direct replacement for the original unit and is fully tested for dependable operation in Ford Fusion, Lincoln MKZ, and Mercury Milan applications with manual air conditioning controls.
- Direct replacement HVAC control module for manual air conditioning systems
- Fully tested replacement unit
- No programming required
- Black housing with bolt-on mounting
- 2 connectors, female connector gender, pin terminal type
- Automatic temperature control: yes
- Compatible with 2010-2012 Ford Fusion, 2010-2012 Lincoln MKZ, and 2010-2011 Mercury Milan with manual air conditioning controls
Detailed Product Overview
Dorman 599-228 is an HVAC control module built for vehicles that use manual air conditioning controls. It replaces the malfunctioning original climate control module to restore blower, vent, and temperature control functions after the factory unit fails. This part number 599-228 is a practical OE-style replacement for 2010-2012 Ford Fusion, 2010-2012 Lincoln MKZ, and 2010-2011 Mercury Milan models listed in the fitment data.
This module uses a black bolt-on housing with two female connectors and pin-style terminals. It does not require programming after installation, which helps simplify the repair process. The unit is also listed with automatic temperature control support and is supplied as an HVAC control module replacement for the original climate control assembly.
This part cross-references 9E5H19980AN and CCM 5 for the same application.
Common Problems It Can Solve
- Climate controls that no longer respond
- Loss of vent selection or airflow direction control
- Temperature adjustment issues at the dash panel
- Intermittent HVAC operation caused by a failed control module
- Restoring manual air conditioning control function in Ford Fusion, Lincoln MKZ, and Mercury Milan vehicles
Installation Notes
After installation, a calibration procedure is required. Remove smart junction box fuse 15 for one minute, switch the ignition to ON and wait 30 seconds, turn the ignition off, reinstall the fuse, then switch the ignition back to ON and wait another 30 seconds. Verify that all vents operate properly after calibration. No instruction manual is included.
Quality Assurance
This Dorman HVAC control module is fully tested before use and built as a replacement for the original failed unit. Part number 599-228 is intended for direct replacement in the listed Ford, Lincoln, and Mercury applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2012 | Ford | Fusion | N/A | w/Manual Air Conditioning Controls; Remanufactured |
| 2012 | Lincoln | MKZ | N/A | w/Manual Air Conditioning Controls; Remanufactured |
| 2011 | Ford | Fusion | N/A | w/Manual Air Conditioning Controls; Remanufactured |
| 2011 | Lincoln | MKZ | N/A | w/Manual Air Conditioning Controls; Remanufactured |
| 2011 | Mercury | Milan | N/A | w/Manual Air Conditioning Controls; Remanufactured |
| 2010 | Ford | Fusion | N/A | w/Manual Air Conditioning Controls; Remanufactured |
| 2010 | Lincoln | MKZ | N/A | w/Manual Air Conditioning Controls; Remanufactured |
| 2010 | Mercury | Milan | N/A | w/Manual Air Conditioning Controls; Remanufactured |
