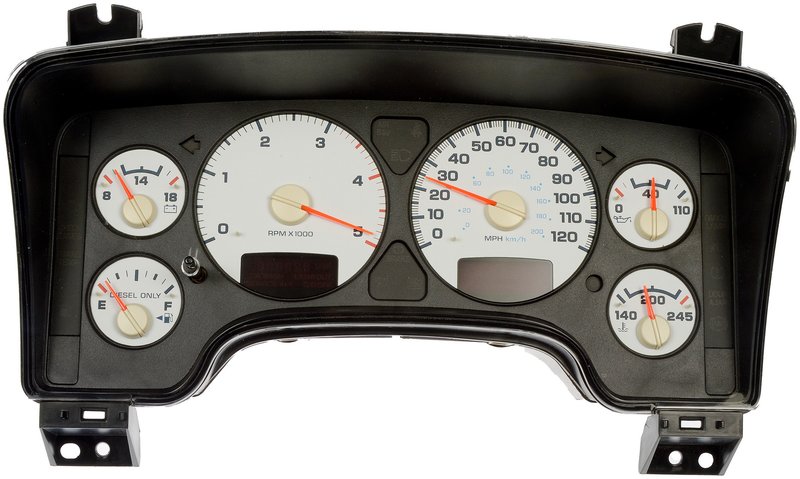

Dorman 599-828 Instrument Cluster
| Brand | Dorman 599-828 |
|---|---|
| Bulbs Included | Oui |
| Bulbs Included | Sí |
| Bulbs Included | Yes |
| Length | 15.5 |
| Illuminated | Oui |
| Illuminated | Sí |
| Illuminated | Yes |
| Width | 7.4 |
| Terminal Type | Clavija |
| Terminal Type | Pin |
| Universal Or Specific Fit | Específico |
| Universal Or Specific Fit | Specific |
| Face Color | Black |
| Face Color | Negro |
| Face Color | Noir |
| Grade Type | Reemplazo estándar |
| Grade Type | Standard replacement |
| Connector Quantity | 3 |
| Connector Shape | Rectangle |
| Connector Shape | Rectángulo |
| Terminal Quantity | 68 |
| Connector Gender | Female |
| Connector Gender | Hembra |
| Terminal Gender | Macho |
| Terminal Gender | Male |
| Gauge Quantity | 6 |
| Maximum Gauge Diameter | 4 |
| Minimum Gauge Diameter | 2 |
| Wiring Harness Included | No |
| Wiring Harness Included | Non |
| Fits | Dodge · 2 vehicles |
Professionally remanufactured. Restores factory functionality and appearance with precise specifications.
Standard replacement. A specific-fit instrument cluster built for straightforward replacement.
Illuminated analog gauges. Includes bulbs and a black face with white gauge displays.
Cross-references 56045600AF, 56045600AG and 56045600AH for the same application. See all 8.
Instrument Cluster for 2003 Ram 2500 and 3500
Dorman 599-828 is a professionally remanufactured instrument cluster for select 2003 Dodge Ram trucks. It is built to restore original factory gauge display, illumination, and appearance on the specified application, with testing performed to verify reliable operation.
- Fits 2003 Dodge Ram 2500, N/A; VIN and mileage required to order
- Fits 2003 Dodge Ram 3500, N/A; VIN and mileage required to order
- Analog instrument cluster with 6 gauges
- Black face, bezel, and font with white gauge faces and orange pointers
- Illuminated cluster with bulbs included
- Specific-fit replacement with 3 rectangular connectors
- Female connector / male terminal configuration
- Standard replacement grade for direct vehicle application
Detailed Product Overview
This Dorman instrument cluster, part number 599-828, is a direct replacement for select Dodge Ram 2500 and Ram 3500 trucks. It features an analog gauge display, black trim, and factory-style layout to match the original dashboard presentation. The cluster is remanufactured to precise specifications and tested for dependable performance in the vehicle’s instrument panel system. This part cross-references OE-style numbers 56045600AF and 56049740AA for the same application.
Common Problems This Cluster Can Address
- Inoperative or erratic speedometer, tachometer, fuel, or temperature readings
- Dim, failed, or inconsistent gauge illumination
- Cracked, faded, or worn instrument cluster appearance
- Missing or inaccurate dashboard display function after cluster failure
- Restoration needs for a 2003 Dodge Ram 2500 or 2003 Dodge Ram 3500 instrument panel
Installation Notes and Fitment Tips
Compatible With 2003 Dodge Ram 2500 and 2003 Dodge Ram 3500, N/A. VIN and mileage are required to order this part. Verify connector count, terminal style, and cluster layout against the original unit before installation. Because this is a specific-fit instrument cluster, matching the vehicle identification details is important for proper ordering and setup.
Quality Assurance
Dorman remanufactures this cluster to precise specifications and tests it for reliability before release. The result is a standard replacement instrument cluster intended to restore factory-style function and appearance on the listed Ram applications.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2003 | Dodge | Ram 2500 | 5.9L | L6 | VIN and mileage required to order |
| 2003 | Dodge | Ram 3500 | 5.9L | L6 | VIN and mileage required to order |
| No rows match your filter. | |||||
