OE Quality
60-Day Returns

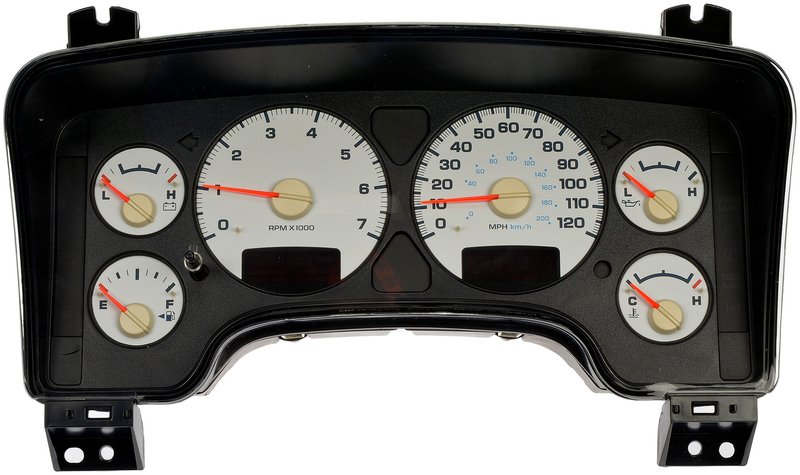

Dorman 599-830 Instrument Cluster
Instrument Cluster for 2004 Dodge Ram 1500
This Dorman instrument cluster, part number 599-830, is a specific-fit replacement for the 2004 Dodge Ram 1500. It is professionally remanufactured to restore factory-style gauge operation and original dashboard appearance, with testing performed for reliability.
Key Features
- Specific-fit instrument cluster for the 2004 Dodge Ram 1500
- Analog gauge cluster with black face, black bezel, and orange pointers
- Illuminated design with bulbs included
- 3-connector layout with rectangular connector shape
- Standard replacement grade for OE-style restoration
- Cross-reference application for 56051101AD, 56051101AE, 56051101AF, 56051101AG, and 56051101AH
Detailed Description
Dorman 599-830 is built for drivers who need a direct replacement instrument cluster for a 2004 Dodge Ram 1500. The unit is remanufactured to precise specifications to help return the dash to factory functionality and appearance, while the analog layout, black gauge panel, and orange pointers maintain the original look expected in this Ram 1500 application. The cluster includes illumination and uses a 3-connector, rectangular interface with male terminals for vehicle-specific installation. This part number 599-830 is also a practical OE-style solution when replacing a worn, inaccurate, or nonfunctioning cluster in the 2004 Dodge Ram 1500.
What It Helps Fix
- Inoperative or erratic speedometer, tachometer, or auxiliary gauges
- Dim, failed, or inconsistent cluster illumination
- Cracked, faded, or worn instrument panel appearance
- Incorrect or unreadable gauge display information
- Dashboard cluster failure caused by aging internal components
Installation Notes and Tips
Compatible with 2004 Dodge Ram 1500, specific fit. VIN and mileage are required to order. Verify connector count, terminal style, and cluster configuration before installation. Transfer vehicle information as required by the application and confirm all warning indicators and gauges operate correctly after installation. Part number 599-830 should be matched to the vehicle’s original cluster specifications before replacement.
Quality Assurance
This Dorman instrument cluster is remanufactured and tested to help ensure dependable operation and OE-style fitment for the specified application. For buyers searching for a 2004 Dodge Ram 1500 instrument cluster replacement, Dorman 599-830 provides a direct-fit option built around factory specifications.
| Brand | Dorman |
|---|---|
| Part Number | 599-830 |
| Bulbs Included | Oui |
| Bulbs Included | Sí |
| Bulbs Included | Yes |
| Length | 15.5 |
| Illuminated | Oui |
| Illuminated | Sí |
| Illuminated | Yes |
| Width | 8.5 |
| Terminal Type | Aspa |
| Terminal Type | Blade |
| Universal Or Specific Fit | Específico |
| Universal Or Specific Fit | Specific |
| Face Color | Black |
| Face Color | Negro |
| Face Color | Noir |
| Grade Type | Reemplazo estándar |
| Grade Type | Standard replacement |
| Connector Quantity | 3 |
| Connector Shape | Rectangle |
| Connector Shape | Rectángulo |
| Terminal Quantity | 16 |
| Terminal Quantity | 26 |
| Connector Gender | Macho |
| Connector Gender | Male |
| Terminal Gender | Macho |
| Terminal Gender | Male |
| Gauge Quantity | 6 |
| Maximum Gauge Diameter | 4 |
| Minimum Gauge Diameter | 2 |
| Wiring Harness Included | No |
This part fits 1 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2004 | Dodge | Ram 1500 | N/A | VIN and mileage required to order |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
