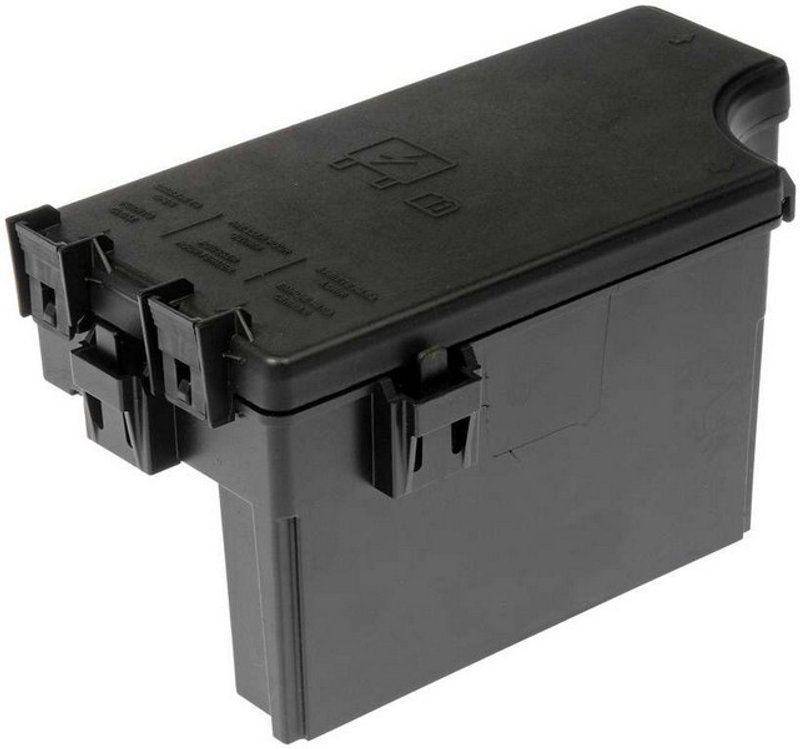

Dorman 599-906 Integrated Control Module

Overview of the Dorman 599-906 Integrated Control Module

The Dorman 599-906 Integrated Control Module is designed specifically for Dodge Caliber, Jeep Compass, and Jeep Patriot models. This remanufactured power module ensures reliable electrical control and system integration for your vehicle's critical functions.

• Dimensions: 10 inches (length) x 6 inches (width) x 5 inches (height)
• Connector Quantity: 7 rectangular black connectors
• Connector/Terminal Configuration: 10 connectors with male blade and pin terminals
• Housing Material: Durable plastic construction
• Mounting Hardware: Not required for installation
• Package Includes: One remanufactured totally integrated power module

Detailed Product Description

This integrated control module from Dorman is engineered to meet the electrical and lighting control needs of Dodge Caliber, Jeep Compass, and Jeep Patriot vehicles. The module features a robust plastic housing that protects internal components while maintaining a compact size of 10 by 6 by 5 inches. It includes seven black rectangular connectors with a total of 10 male blade and pin terminals, ensuring secure and precise electrical connections. The design eliminates the need for additional mounting hardware, simplifying the installation process.

Compatible Vehicles and Applications

This Dorman 599-906 module is compatible with the following vehicles:

• Dodge Caliber
• Jeep Compass
• Jeep Patriot

It is intended for use in electrical, lighting, and body control systems, providing integrated power management and control functions.

Common Issues Addressed by the Integrated Control Module

• Intermittent or complete failure of electrical control systems
• Malfunctioning lighting or body control features
• Power distribution inconsistencies within the vehicle's control network
• Faulty or damaged original control modules causing system errors
• Electrical shorts or connector issues affecting vehicle performance

Installation Notes and Tips

• No mounting hardware is required, allowing for straightforward replacement
• Ensure all seven black rectangular connectors are securely attached to avoid electrical faults
• Verify connector orientation and terminal engagement before finalizing installation
• Handle the plastic housing carefully to prevent damage during installation
• Consult vehicle service manual for specific wiring and module location details

Quality Assurance and Warranty

The Dorman 599-906 Integrated Control Module is a remanufactured unit tested to meet OEM standards for fit, form, and function. It undergoes rigorous quality control to ensure reliable operation in Dodge Caliber, Jeep Compass, and Jeep Patriot vehicles. Warranty coverage details should be confirmed at the point of purchase, as they may vary.
