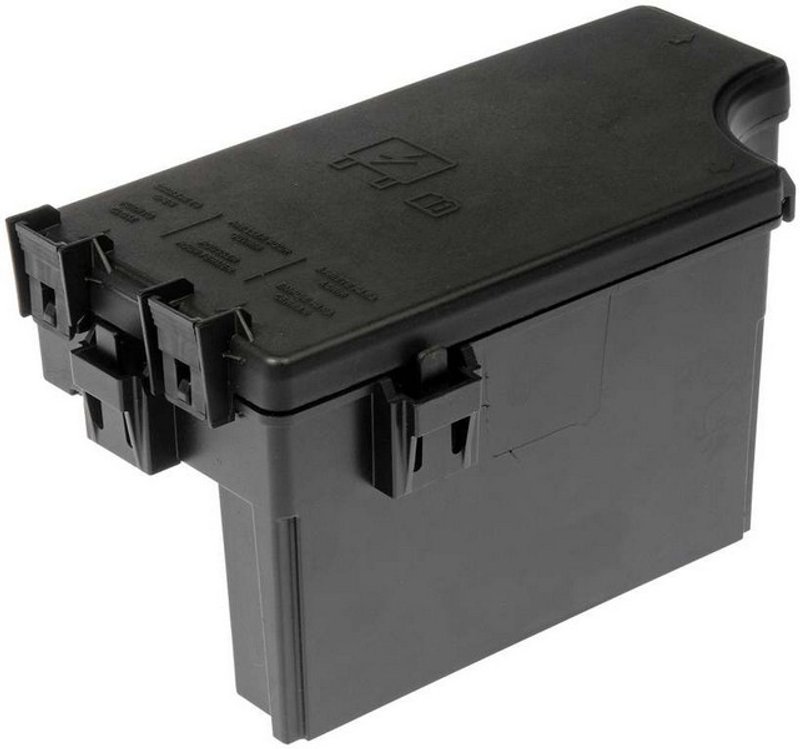

Dorman 599-909 Integrated Control Module
| Brand | Dorman 599-909 |
|---|---|
| Connector Color | Black |
| Connector Quantity | 7 |
| Connector Shape | Rectangle |
| Connector/Terminal Configuration | 10 Connectors |
| Height | 5 in |
| Housing Material | Plastic |
| Length | 10 |
| Mounting Hardware Included | Not Required |
| Package Contents | 1 Remanufactured Totally Integrated Power Module |
| Terminal Gender | Male |
| Terminal Type | Blade; Pin |
| Width | 6 |
| Fits | Chrysler · 5 vehicles |
OE direct replacement. Restores proper function to electronic circuits.
Remanufactured module. A cost-conscious way to replace the original unit.
Plastic housing. Lightweight construction with a black rectangular connector layout.
Cross-references 731503 and 56049719A0 for the same application. See all 2.
Dorman 599-909 Integrated Control Module
This Dorman integrated control module is a direct replacement for the original equipment unit used on select Chrysler PT Cruiser models. It restores proper operation of electronic circuits controlled through the vehicle’s integrated power and control system.
Key Features
- Direct OE-style replacement for the factory integrated control module
- Remanufactured Totally Integrated Power Module included in the package contents
- Black plastic housing with rectangle connector shape
- 7 connector interfaces with blade and pin terminal types
- Male terminal design for factory-style electrical connection
- Measures 10 in. long, 6 in. wide, and 5 in. high
- No mounting hardware required for installation
Detailed Description
The Dorman 599-909 integrated control module is built to replace the original module on 2006-2010 Chrysler PT Cruiser applications. It is intended to restore function to electronic circuits managed through the vehicle’s integrated power distribution and control system, helping return the electrical system to normal operation. This part cross-references 731503 and 56049719A0 for the same application.
For Chrysler PT Cruiser owners searching for a remanufactured integrated control module, Dorman 599-909 provides a factory-style replacement with the correct connector layout and housing dimensions. It is a practical solution when the original module has failed or is no longer operating as expected.
What It Helps Resolve
- Loss of power or control to specific electrical circuits
- Intermittent module-related electrical faults
- Failed integrated power distribution functions
- Electrical system issues caused by a damaged original module
- Restoration needs after a module-related no-function condition
Installation Notes and Tips
Fits 2006-2010 Chrysler PT Cruiser. Verify connector count, terminal style, and housing dimensions against the original module before installation. Confirm all electrical connections are clean and secure, and follow the vehicle service procedure for module replacement and system initialization if required.
Quality Assurance
Dorman remanufactured electrical components are built as direct replacements for original equipment parts, with application-specific fitment and connector configuration for the listed Chrysler PT Cruiser years.
| Year | Make | Model | Body Type | Position | Notes |
|---|---|---|---|---|---|
| 2010 | Chrysler | PT Cruiser | — | N/A | — |
| 2009 | Chrysler | PT Cruiser | — | N/A | — |
| 2008 | Chrysler | PT Cruiser | Wagon | N/A | — |
| 2007 | Chrysler | PT Cruiser | Wagon | N/A | — |
| 2006 | Chrysler | PT Cruiser | Wagon | N/A | — |
