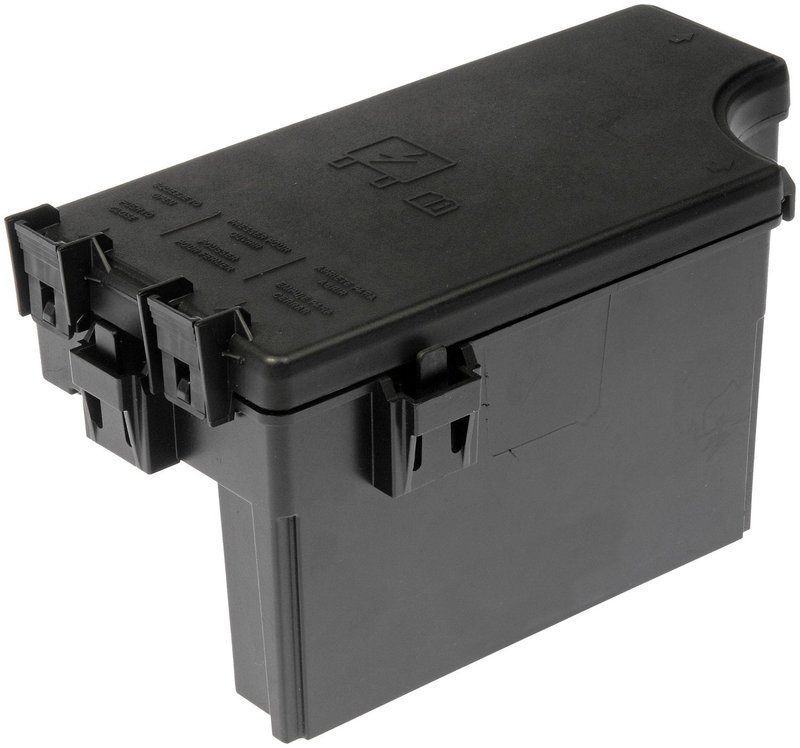

Dorman 599-916 Integrated Control Module

Overview of the Dorman 599-916 Integrated Control Module

The Dorman 599-916 Integrated Control Module is designed for reliable electrical system management in select Dodge and Jeep vehicles. This remanufactured power module supports critical vehicle functions and is compatible with Dodge Caliber, Jeep Compass, and Jeep Patriot models.

• Dimensions: 9 inches length, 5 inches width, 5 inches height
• Connector Color: Black with rectangular shape
• Connector Quantity: 7 connectors with 10 total connector/terminal configurations
• Terminal Type: Male blade and pin terminals
• Housing Material: Durable plastic construction
• Mounting Hardware: Not required for installation
• Package includes one remanufactured totally integrated power module

Detailed Product Description

The Dorman 599-916 Integrated Control Module is engineered to replace the original power module in compatible Dodge and Jeep vehicles. Its plastic housing ensures durability while maintaining a lightweight profile. The module features seven black rectangular connectors with a total of 10 connector/terminal configurations, utilizing male blade and pin terminals for secure electrical connections. Measuring 9 inches in length, 5 inches in width, and 5 inches in height, this module fits precisely within the designated engine compartment area without requiring additional mounting hardware.

Compatible Vehicles and Applications

This integrated control module is compatible with the following vehicles:

• Dodge Caliber
• Jeep Compass
• Jeep Patriot

It is designed to manage and control various electrical functions within these models, ensuring proper power distribution and system operation.

Common Issues Addressed by the Dorman 599-916 Module

• Intermittent electrical failures or power loss in control systems
• Faulty or damaged integrated power modules causing vehicle starting issues
• Malfunctioning electrical components due to control module failure
• Blown fuses or circuit interruptions related to the power module
• Diagnostic trouble codes linked to integrated control module errors

Installation Notes and Tips

• No mounting hardware is required, simplifying the replacement process
• Ensure all connectors are securely attached to avoid electrical faults
• Disconnect the vehicle battery before installation to prevent electrical shorts
• Verify compatibility with your specific Dodge Caliber, Jeep Compass, or Jeep Patriot model year
• Consult vehicle service manual for detailed installation procedures

Quality Assurance and Warranty Information

This Dorman integrated control module is remanufactured to meet or exceed OEM specifications, providing a reliable replacement option. It undergoes rigorous testing to ensure proper functionality and durability. Warranty coverage details should be confirmed at the point of purchase or with the manufacturer.
