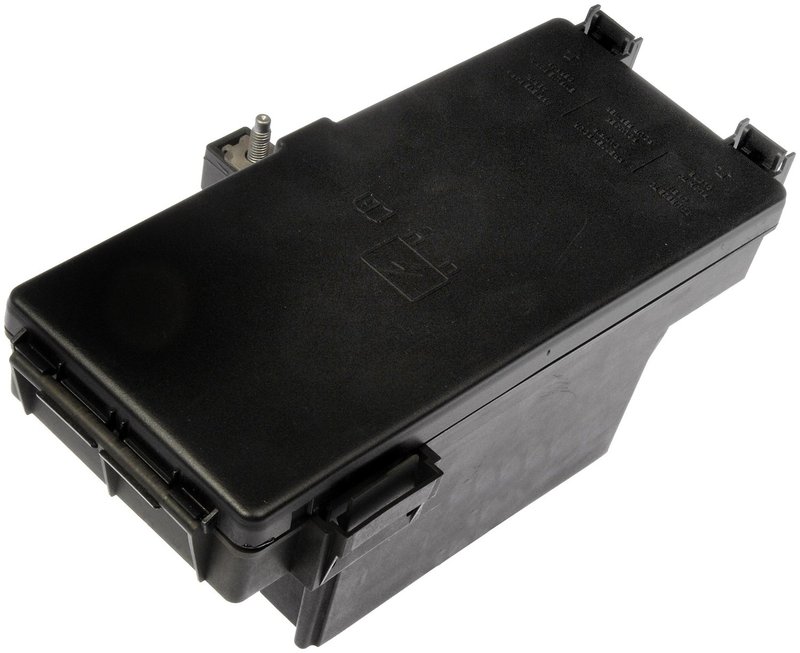

Dorman 599-930 Integrated Control Module

Overview of the Dorman 599-930 Integrated Control Module

The Dorman 599-930 Integrated Control Module is designed specifically for Dodge Ram 1500, Ram 2500, and Ram 3500 models. This remanufactured power module ensures reliable electrical control and system management for your vehicle's lighting and body functions.

• Dimensions: 12 inches length, 6.5 inches width, 4.75 inches height
• Connector Quantity: 6 rectangular black connectors
• Connector/Terminal Configuration: 10 connectors with male blade and pin terminals
• Housing Material: Durable plastic construction
• Mounting Hardware: Not required for installation
• Package Includes: One remanufactured totally integrated power module

Detailed Product Description

The Dorman 599-930 Integrated Control Module features a robust plastic housing designed to protect the internal circuitry from environmental factors. It includes six black rectangular connectors with a total of 10 male blade and pin terminals, ensuring secure and precise electrical connections. Measuring 12 inches in length, 6.5 inches in width, and 4.75 inches in height, this module fits seamlessly into the electrical system of Dodge Ram 1500, 2500, and 3500 trucks. The design eliminates the need for additional mounting hardware, simplifying the installation process.

Common Applications and Issues Addressed

• Resolves electrical control failures in Dodge Ram 1500, 2500, and 3500 models
• Fixes intermittent lighting and body control malfunctions
• Replaces faulty integrated power modules causing system errors
• Restores proper function to vehicle control systems affected by module damage
• Addresses issues related to connector corrosion or terminal wear

Installation Notes and Tips

• Ensure vehicle battery is disconnected before installation to prevent electrical shorts
• Verify connector alignment and secure fit of the six black rectangular connectors
• No additional mounting hardware is required; module mounts directly in place
• Handle the module carefully to avoid damage to blade and pin terminals
• Consult vehicle service manual for specific location and wiring diagrams

Quality Assurance and Warranty Information

This Dorman integrated control module is remanufactured to meet or exceed OEM specifications, providing dependable performance for Dodge Ram 1500, 2500, and 3500 trucks. Each unit undergoes rigorous testing to ensure functionality and durability. Warranty coverage details are provided by Dorman and typically include protection against defects in materials and workmanship.
