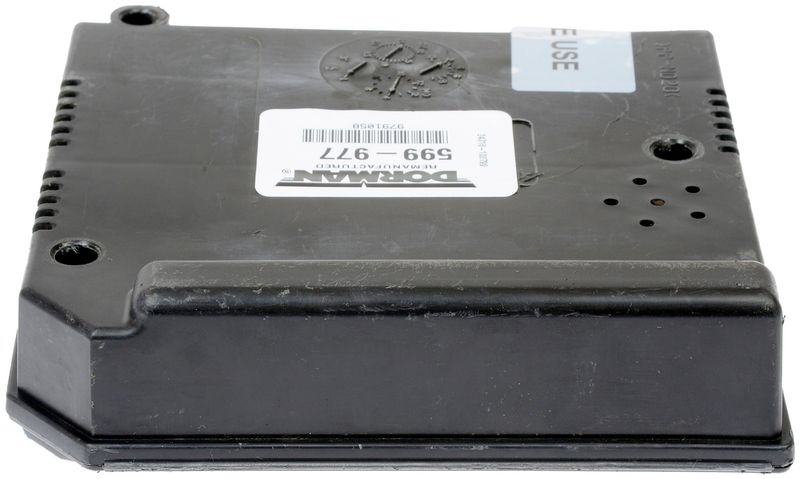

Dorman 599-977 Integrated Control Module
| Brand | Dorman 599-977 |
|---|---|
| Length | 6 |
| Connector Color | Grey |
| Connector Color | Gris |
| Width | 6 |
| Terminal Type | Aspa |
| Terminal Type | Blade |
| Connector Quantity | 3 |
| Connector Shape | Rectangle |
| Connector Shape | Rectángulo |
| Housing Material | Plastic |
| Housing Material | Plástico |
| Terminal Quantity | 26 |
| Connector Gender | Female |
| Connector Gender | Hembra |
| Terminal Gender | Macho |
| Terminal Gender | Male |
| Cableado incluido | No |
| Contenidos del paquete | 1 módulo del temporizador |
| Height | 1.5 |
| Mounting Hardware Included | No |
| Mounting Hardware Included | Non |
| Package Contents | 1 timer module |
| Programming Required | No |
| Programming Required | Non |
| Wire Harness Included | No |
| Wire Harness Included | Non |
| Fits | Dodge · 3 vehicles |
Direct replacement. Restores proper function for specified electronic circuits.
OE-style connectors. Three rectangular female connectors with 26 terminals.
No programming required. Simplifies installation on listed applications.
Cross-references 56049071AC, 56049071AD and 56049071AE for the same application. See all 9.
Overview
Dorman integrated control module 599-977 is a direct replacement for the original module used to restore proper operation of specific electronic circuits. It is built for specified applications and matches the connector layout needed for a straightforward replacement.
Compatible with Dodge Dakota applications, this module is identified by part number 599-977 and is intended for vehicles that use the matching OE configuration.
Key Features
- Direct replacement integrated control module for specified electronic circuits.
- Three rectangular female connectors with 26 terminals for OE-style connection layout.
- Plastic housing with grey connectors for a factory-style fit and appearance.
- No programming required for installation on listed applications.
- Part number 599-977 for easy identification and ordering.
Detailed Description
This Dorman integrated control module is engineered to replace the original equipment unit on listed Dodge Dakota models. It uses a rectangular connector design, plastic housing, and the same terminal count expected for the application, helping maintain proper electrical interface and circuit function. The module is a practical replacement when the original unit has failed or is no longer operating correctly. Part number 599-977 is also cross-referenced to OE numbers 56049071AC, 56049071AD, and 56049071AE for the same application.
Common Uses
- Restoring failed electronic circuit control.
- Replacing a damaged or nonresponsive original module.
- Addressing connector or terminal-related electrical faults.
- Returning factory-style function to the vehicle’s control system.
Installation Notes
Fits 2002-2004 Dodge Dakota. Verify connector shape, terminal count, and housing dimensions before installation. No programming is required on listed applications, and the product is supplied without a wire harness or mounting hardware.
Quality Assurance
Dorman manufactures replacement electronic components to match original equipment specifications for listed applications. Part number 599-977 is built as a direct replacement module for the stated fitment.
| Year | Make | Model | Notes |
|---|---|---|---|
| 2004 | Dodge | Dakota | — |
| 2003 | Dodge | Dakota | — |
| 2002 | Dodge | Dakota | — |
