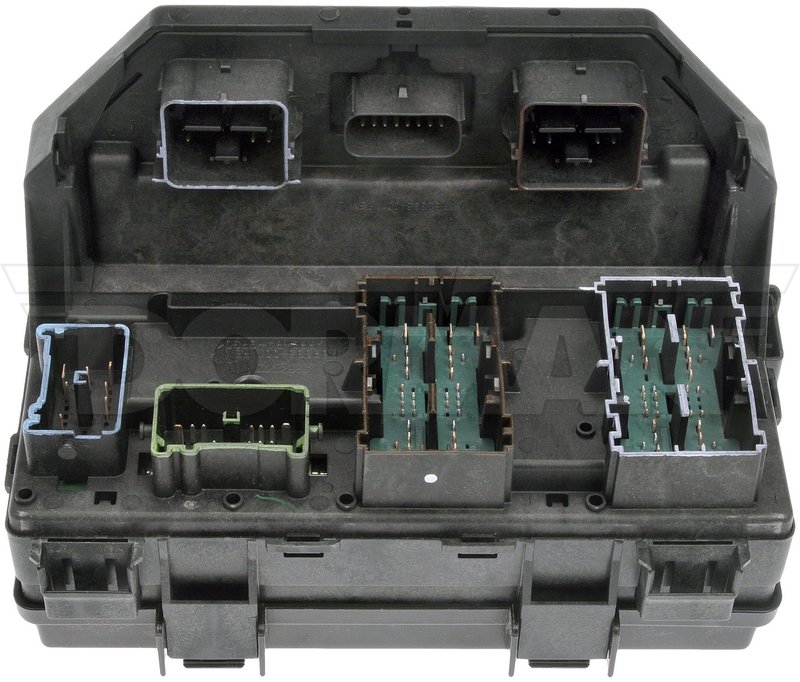

Dorman 599-989 Integrated Control Module

Overview of the Dorman 599-989 Integrated Control Module

The Dorman 599-989 Integrated Control Module is designed for reliable electrical management in select Chrysler and Dodge vehicles. This remanufactured power module supports key vehicle functions and is compatible with models such as the Grand Caravan, Journey, Town & Country, and Voyager.

• Dimensions: 9.5 inches length, 7.5 inches height, 5.25 inches width
• Connector Quantity: 7 rectangular black connectors with male blade and pin terminals
• Housing Material: Durable plastic construction
• Connector Configuration: 7 connectors arranged for efficient integration
• Mounting Hardware: Not required for installation
• Package Includes: One remanufactured totally integrated power module

Detailed Product Description

This integrated control module from Dorman is engineered to meet the electrical control needs of Chrysler and Dodge vehicles, specifically the Grand Caravan, Journey, Town & Country, and Voyager models. The module measures 9.5 inches in length, 7.5 inches in height, and 5.25 inches in width, making it a compact yet robust component. It features seven black rectangular connectors with male blade and pin terminals, ensuring secure and reliable electrical connections. The plastic housing provides protection against environmental factors while maintaining lightweight durability. The 7-connector configuration facilitates seamless integration with the vehicle's existing wiring harness without the need for additional mounting hardware.

Common Applications and Issues Addressed

• Resolves electrical control failures in Chrysler Grand Caravan and Dodge Journey models
• Addresses power distribution problems in Town & Country and Voyager vehicles
• Replaces faulty integrated control modules causing intermittent electrical faults
• Restores proper function to vehicle lighting and body control systems
• Eliminates issues related to connector corrosion or terminal damage

Installation Notes and Tips

• No mounting hardware is required, simplifying the replacement process
• Ensure all seven connectors are securely attached to prevent electrical faults
• Handle the module carefully to avoid damage to the plastic housing and terminals
• Verify vehicle compatibility with the part number 599-989 before installation
• Consult vehicle service manual for specific wiring and module location details

Quality Assurance and Warranty

The Dorman 599-989 Integrated Control Module is a remanufactured component that undergoes rigorous testing to meet OEM standards for fit, form, and function. This ensures dependable performance in compatible Chrysler and Dodge vehicles. While specific warranty details may vary, Dorman typically offers coverage against defects in materials and workmanship to provide confidence in the product's reliability.
