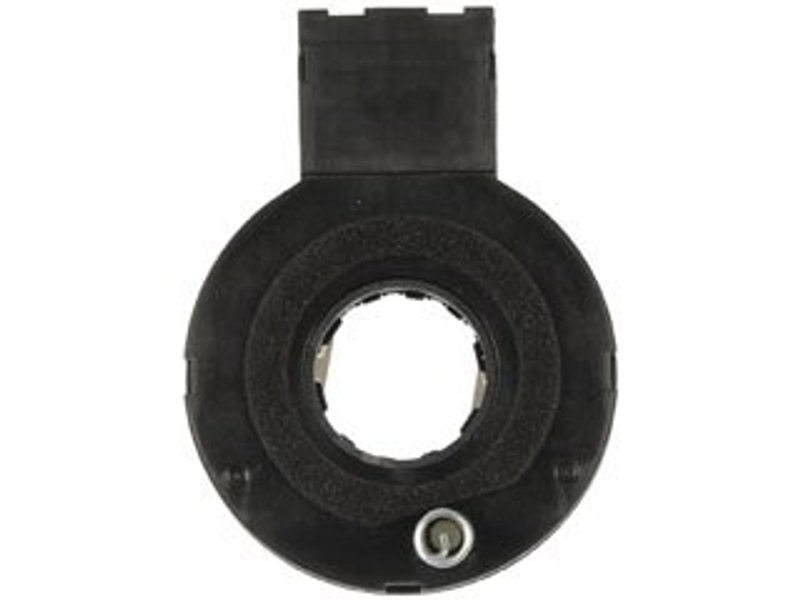

Dorman 601-003 Steering Wheel Motion Sensor

Overview of Dorman Steering Wheel Motion Sensor 601-003

The Dorman Steering Wheel Motion Sensor 601-003 is designed for precise steering position detection in select Buick, Cadillac, Chevrolet, GMC, Hummer, and Saab vehicles. This sensor ensures accurate input for vehicle stability and safety systems by monitoring steering wheel motion.

• Connector color: Black for easy identification
• Terminal types: Blade and Pin for versatile electrical connections
• Connector shapes: Circular and elbow/right angle for optimal fit
• Eight terminals to support complex signal transmission
• Male connector gender for secure attachment
• Inside diameter of 0.75 inches for proper mounting alignment
• Durable plastic construction for long-lasting performance
• Includes steering wheel position sensor only; mounting hardware not included

Detailed Product Description

The Dorman 601-003 steering wheel motion sensor is engineered to provide reliable steering position data to your vehicle’s control modules. Featuring a black connector with both blade and pin terminal types, this sensor accommodates various wiring harness configurations. The combination of circular and elbow-shaped connectors allows for flexible installation in tight engine compartments or steering column assemblies. With eight terminals, the sensor supports multiple signal pathways, ensuring accurate communication with vehicle stability and safety systems.

Constructed from durable plastic, the sensor is designed to withstand typical automotive environmental conditions. The male connector design ensures a secure and stable connection, while the 0.75-inch inside diameter facilitates proper alignment during installation. This part is compatible with a range of models including the Chevrolet Silverado 1500, GMC Sierra 2500 HD, Cadillac Escalade, Buick Rainier, Hummer H3, and Saab 9-7x, among others.

Compatible Vehicles and Applications

• Buick Rainier
• Cadillac Escalade, Escalade ESV, Escalade EXT
• Chevrolet Avalanche 1500, Avalanche 2500, Silverado 1500, Silverado 2500, Suburban 1500, Suburban 2500, Tahoe
• GMC Canyon, Colorado, Envoy, Envoy XL, Sierra 1500, Sierra 2500, Sierra 3500, Yukon, Yukon XL 1500, Yukon XL 2500
• Hummer H3
• Saab 9-7x

Common Issues Addressed by This Sensor

• Erratic or unresponsive steering wheel input signals
• Malfunctioning vehicle stability control or traction control systems
• Steering angle sensor fault codes or warning lights
• Intermittent loss of steering position data
• Inaccurate steering wheel position readings affecting safety features

Installation Notes and Tips

• Ensure the vehicle battery is disconnected before installation to prevent electrical shorts
• Verify connector orientation matches the original sensor to avoid damage
• Check that the sensor’s inside diameter aligns properly with the mounting location
• Use appropriate tools to avoid damaging blade and pin terminals during connection
• Mounting hardware is not included; reuse original hardware or source compatible fasteners

Quality Assurance and Warranty

Dorman parts undergo rigorous quality control to meet or exceed OEM standards. The 601-003 steering wheel motion sensor is manufactured with durable materials to provide consistent performance. While specific warranty details may vary, Dorman typically offers a limited warranty covering defects in material and workmanship. Refer to the product documentation for exact warranty terms.
