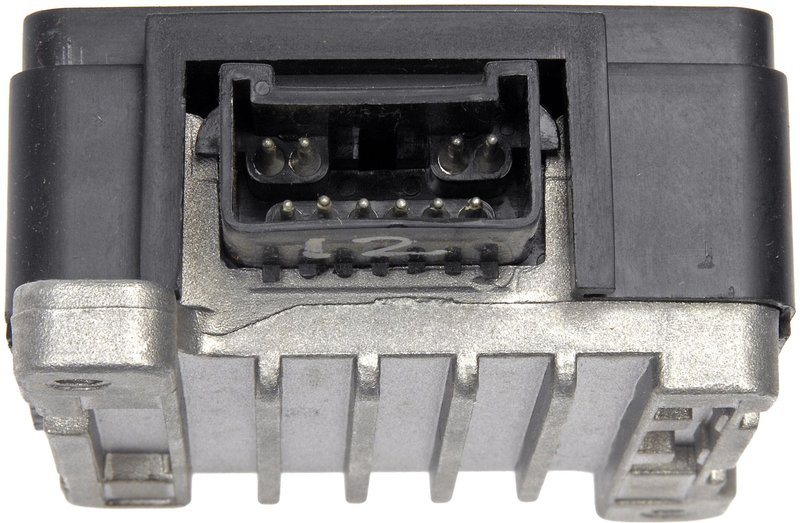

Dorman 601-005 Fuel Pump Driver Module

Reliable Fuel Pump Driver Module for Ford, Jaguar, and Mercury Vehicles

The Dorman 601-005 Fuel Pump Driver Module is designed to provide consistent electric operation for fuel pumps in select Ford, Jaguar, and Mercury models. Engineered with durable materials and precise terminal configurations, this module ensures reliable fuel delivery performance.

Key Features of the Dorman 601-005 Fuel Pump Driver Module

• Connector color: Black for easy identification
• Terminal type: Pin with 10 terminals for secure electrical connections
• Housing constructed from a combination of aluminum and plastic for durability and heat resistance
• Connector gender: Female; terminal gender: Male to match factory wiring harnesses
• Electric operation designed to control fuel pump function efficiently
• Includes the fuel pump driver module only; no installation hardware or wiring harness included

Detailed Description and Construction

The Dorman 601-005 Fuel Pump Driver Module is built with a robust aluminum and plastic housing that balances strength and heat dissipation. Its black female connector with 10 male pin terminals ensures a secure and reliable connection to the vehicle’s wiring system. This module is specifically engineered for electric operation, controlling the fuel pump to maintain optimal fuel pressure and delivery. Compatible with various Ford, Jaguar, and Mercury models, including the Ford Mustang, Focus, Taurus, Escort, and Contour, as well as the Jaguar S-Type and X-Type, and Mercury Cougar, Mystique, Sable, and Tracer, this part meets OEM specifications for fit and function.

Common Applications and Issues Addressed

• Restores proper fuel pump operation in vehicles experiencing fuel delivery interruptions
• Resolves issues related to intermittent engine stalling or failure to start due to fuel pump control faults
• Addresses electrical faults causing fuel pump driver module failure
• Improves fuel system reliability in Ford Mustang, Jaguar S-Type, and Mercury Cougar models
• Replaces worn or damaged modules to maintain consistent fuel pressure

Installation Notes and Tips

• Installation hardware and wiring harness are not included; use existing components or source separately
• Ensure the connector pins align correctly to avoid damage during installation
• Follow vehicle-specific service manual instructions for safe and proper installation
• Verify compatibility with your vehicle’s make and model before installation

Quality Assurance and Warranty Information

Dorman manufactures the 601-005 Fuel Pump Driver Module to meet or exceed OEM standards for durability and performance. While installation instructions and hardware are not included, the module undergoes rigorous quality control to ensure reliable operation. Please consult Dorman’s warranty policy for coverage details specific to this part.
