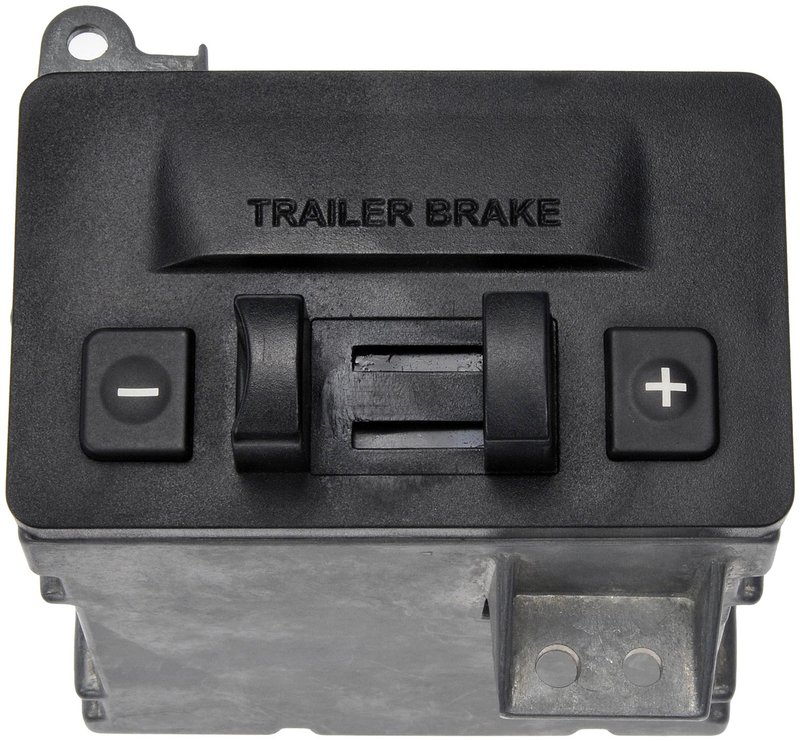

Dorman 601-023 Trailer Brake Control Module
| Brand | Dorman 601-023 |
|---|---|
| Length | 5 |
| Connector Color | Gray |
| Width | 4 |
| Terminal Type | Blade |
| Wire Quantity | 0 |
| Housing Material | Cast aluminum |
| Housing Material | Molded plastic |
| Terminal Quantity | 14 |
| Connector Gender | Male |
| Terminal Gender | Male |
| Package Contents | Trailer brake control module |
| Fits | Ford · 4 vehicles |
Direct replacement. Restores proper trailer brake control module function when the factory unit fails.
Cast aluminum housing. With molded plastic construction for durable, reliable operation.
14 male terminals. Blade-style connections and a gray connector for straightforward installation.
Cross-references BL3Z19H332AA for the same application. See all 1.
Trailer Brake Control Module for Ford F-150
This Dorman trailer brake control module restores factory trailer brake control function on select Ford F-150 trucks. It is a direct replacement for the original module on the listed applications and is built to match the OE-style electrical interface.
Key Features
- Direct replacement trailer brake control module for specific Ford F-150 applications
- Designed to restore proper trailer brake control when the original module fails
- 14-terminal male connector with blade terminals
- Gray connector color for OE-style identification
- Cast aluminum and molded plastic housing construction
- Measures 5 in. long and 4 in. wide
- Cross-references Ford BL3Z19H332AA for the same application
Detailed Description
Dorman 601-023 is a trailer brake control module made for 2011-2014 Ford F-150 trucks. It replaces the factory module on the listed vehicles to restore trailer brake control operation after the original unit stops working. The module uses a male connector with 14 terminals and blade-style terminals, and its gray connector layout supports OE-style fitment. Dorman 601-023 is a practical replacement for owners searching for a 2011-2014 Ford F-150 trailer brake control module or a Ford F-150 brake control module replacement.
What It Helps Fix
- Trailer brake controller inoperative condition
- Loss of trailer brake signal output
- Faulty factory brake control module
- Intermittent trailer brake control response
- Need for an OE-style replacement on a 2011-2014 Ford F-150
Installation Notes and Tips
Verify the vehicle year and application before installation. This module is listed for 2011-2014 Ford F-150 models, and the connector style, terminal count, and housing dimensions should be matched to the original unit before replacement. Use the vehicle’s existing wiring and mounting points as applicable to the original configuration.
Quality Assurance
Dorman manufactures replacement electronic and control components for direct-fit service applications. Part number 601-023 is built as an OE-style replacement for the listed Ford F-150 fitment and cross-references Ford BL3Z19H332AA.
| Year | Make | Model | Notes |
|---|---|---|---|
| 2014 | Ford | F-150 | — |
| 2013 | Ford | F-150 | — |
| 2012 | Ford | F-150 | — |
| 2011 | Ford | F-150 | — |
