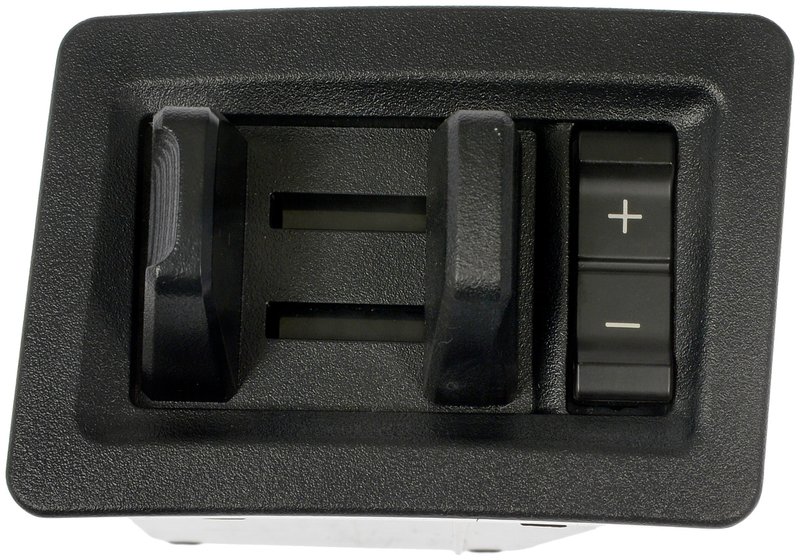

Dorman 601-027 Trailer Brake Control Module
| Brand | Dorman 601-027 |
|---|---|
| Length | 4.5 |
| Connector Color | Gray |
| Connector Color | Gris |
| Width | 3.25 |
| Terminal Type | Clavija |
| Terminal Type | Pin |
| Housing Material | Plastic |
| Housing Material | Plástico |
| Terminal Quantity | 14 |
| Connector Gender | Female |
| Connector Gender | Hembra |
| Terminal Gender | Macho |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Wiring Harness Included | Non |
| Contenidos del paquete | 1 módulo de control de frenos del remolque |
| Housing Included | Oui |
| Housing Included | Sí |
| Housing Included | Yes |
| Package Contents | 1 trailer brake control module |
| Fits | Ford · 20 vehicles |
Direct replacement. Restores proper trailer brake control when the factory module fails.
Plastic housing. Lightweight construction with a gray connector for a clean factory-style fit.
Female connector. 14 terminals provide a secure electrical connection for the module.
Cross-references Standard Ignition TBM005, HC3Z2C006AA and JL3Z2C006AA for the same application. See all 4.
Trailer Brake Control Module for Ford Applications
Dorman 601-027 is a direct replacement trailer brake control module for specific Ford vehicles when the factory unit fails. It restores trailer brake control function with a design matched to the original module’s size, connector layout, and terminal count.
Compatible With 2015-2020 Ford F-150, 2018-2021 Ford Expedition, 2021-2022 Ford F-250 Super Duty, and 2021-2022 Ford F-350 Super Duty. This part number, 601-027, is built for direct replacement service on these applications.
- Direct replacement trailer brake control module
- Gray female connector with 14 terminals
- Plastic housing for OE-style fitment
- Housing included; wiring harness not included
- Dimensions: 4.5 in. length and 3.25 in. width
Detailed Product Overview
This Dorman trailer brake control module is engineered to replace the original module on select Ford truck and SUV applications, helping restore proper trailer brake operation after factory equipment failure. The connector configuration, terminal type, and housing design support a straightforward OE-style replacement for vehicles that use this specific module layout. Part number 601-027 is also referenced for the same application as Standard Ignition TBM005.
Common Problems It Can Address
- Trailer brake controller loss or intermittent operation
- Faults caused by a failed original control module
- Brake output issues affecting trailer braking response
- Connector or terminal mismatch during module replacement
- Restoration of factory trailer brake control functionality
Installation Notes and Tips
Verify the vehicle’s original module connector style, terminal count, and physical dimensions before installation. This module uses a female connector with 14 terminals and a plastic housing, and it does not include a wiring harness. Confirm application details for your Ford F-150, Expedition, F-250 Super Duty, or F-350 Super Duty before replacing the existing unit.
Quality Assurance
Dorman designs replacement electronic components to match original equipment fit and function on specific applications. This trailer brake control module is intended as a direct replacement for the factory part on the listed Ford vehicles.
| Year | Make | Model | Notes |
|---|---|---|---|
| 2022 | Ford | F-250 Super Duty | — |
| 2022 | Ford | F-350 Super Duty | — |
| 2021 | Ford | Expedition | — |
| 2021 | Ford | F-250 Super Duty | — |
| 2021 | Ford | F-350 Super Duty | — |
| 2020 | Ford | Expedition | — |
| 2020 | Ford | F-150 | — |
| 2020 | Ford | Lobo | — |
| 2019 | Ford | Expedition | — |
| 2019 | Ford | F-150 | — |
| 2019 | Ford | Lobo | — |
| 2018 | Ford | Expedition | — |
| 2018 | Ford | F-150 | — |
| 2018 | Ford | Lobo | — |
| 2017 | Ford | F-150 | — |
| 2017 | Ford | Lobo | — |
| 2016 | Ford | F-150 | — |
| 2016 | Ford | Lobo | — |
| 2015 | Ford | F-150 | — |
| 2015 | Ford | Lobo | — |
