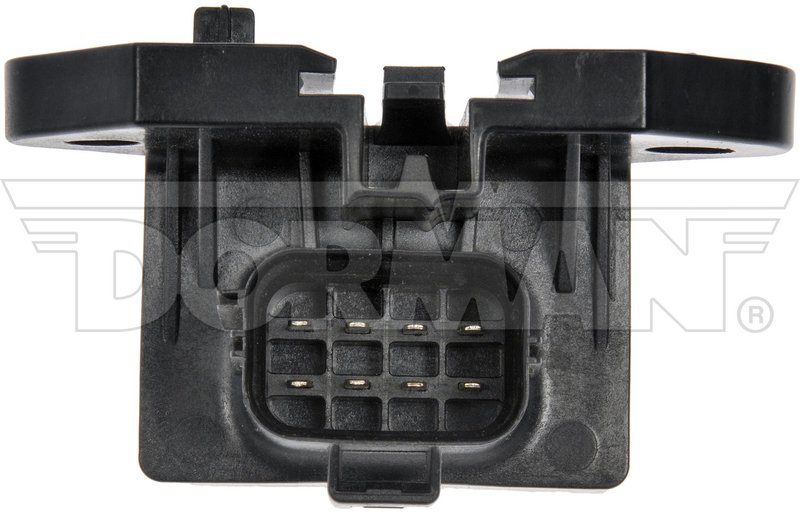

Dorman 601-225 Fuel Pump Driver Module

Reliable Fuel Pump Driver Module for Ford, Lincoln, and Mercury Vehicles

The Dorman 601-225 Fuel Pump Driver Module is designed to provide consistent and efficient electric operation for fuel pumps in select Ford, Lincoln, and Mercury models. Engineered with durable plastic housing and a heatsink for protection, this module supports continuous duty applications to maintain optimal fuel delivery performance.

Key Features of the Dorman 601-225 Fuel Pump Driver Module

• Compact dimensions: 2.5 inches length by 3.5 inches width
• Black female connector with one connector and eight male blade terminals
• 20-amp amperage rating suitable for continuous duty operation
• Plastic housing material with heatsink protection for enhanced durability
• Screw-in mounting type for secure installation
• Operates at 13.6 volts, compatible with electric fuel pump systems

Detailed Product Description

The Dorman 601-225 Fuel Pump Driver Module is specifically engineered to regulate the electric fuel pump's operation in various Ford, Lincoln, and Mercury vehicles, including popular models such as the Ford F-150, E-350 Super Duty, Lincoln Navigator, and Mercury Milan. Its plastic housing ensures lightweight durability, while the integrated heatsink protects the module from overheating during continuous use. The module features a single black female connector with eight male blade terminals, designed for reliable electrical connections. With a 20-amp rating and 13.6-volt operation, this module supports steady fuel pump performance under demanding conditions. The screw-in mounting type allows for a secure fitment without the need for additional mounting brackets or hardware.

Compatible Vehicles and Common Applications

• Ford E-150, E-250, E-350 Super Duty
• Ford F-150, F-250 Super Duty, F-350 Super Duty
• Ford Edge, Escape, Expedition, Flex, Fusion
• Lincoln Navigator, MKS, MKT, MKX, MKZ
• Mercury Mariner, Milan, Taurus
• Ford Transit series: Transit, Transit-150, Transit-250, Transit-350, Transit-350 HD

Issues Addressed by the Fuel Pump Driver Module

• Intermittent or no fuel pump operation causing engine stalling
• Fuel pump relay failure leading to starting difficulties
• Overheating of the fuel pump driver module during extended use
• Electrical connection problems due to worn or damaged terminals
• Inconsistent fuel delivery affecting engine performance

Installation Notes and Tips

The Dorman 601-225 Fuel Pump Driver Module requires a screw-in mounting type installation. Ensure the vehicle's ignition is off and the battery is disconnected before beginning installation. Verify the connector orientation and terminal alignment to avoid damage. This module does not include mounting hardware or installation instructions, so having the vehicle’s service manual on hand is recommended for proper installation procedures.

Quality Assurance and Warranty Information

Dorman manufactures this fuel pump driver module with quality materials, including a plastic housing and heatsink protection to enhance durability and reliability. While specific warranty details are not provided, Dorman products typically meet or exceed OEM standards for fit and function, ensuring dependable performance in compatible Ford, Lincoln, and Mercury vehicles.
